Zetron Instrument focuses on providing customized solutions for precision analysis and monitoring.

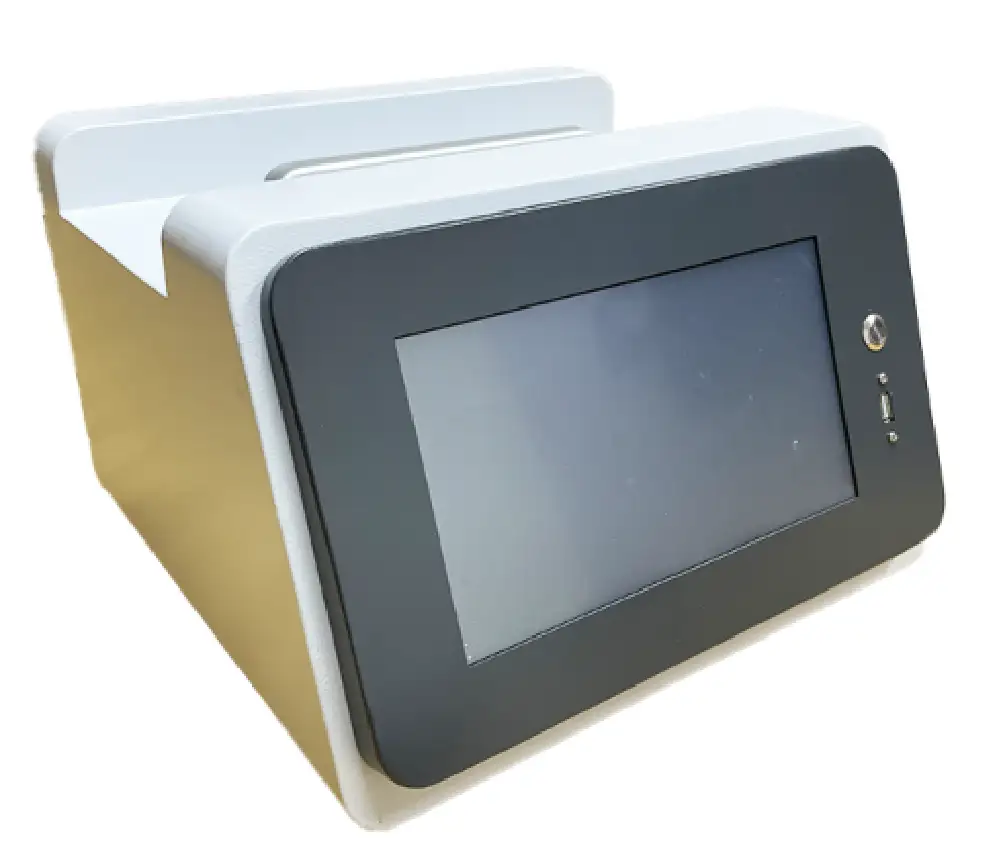

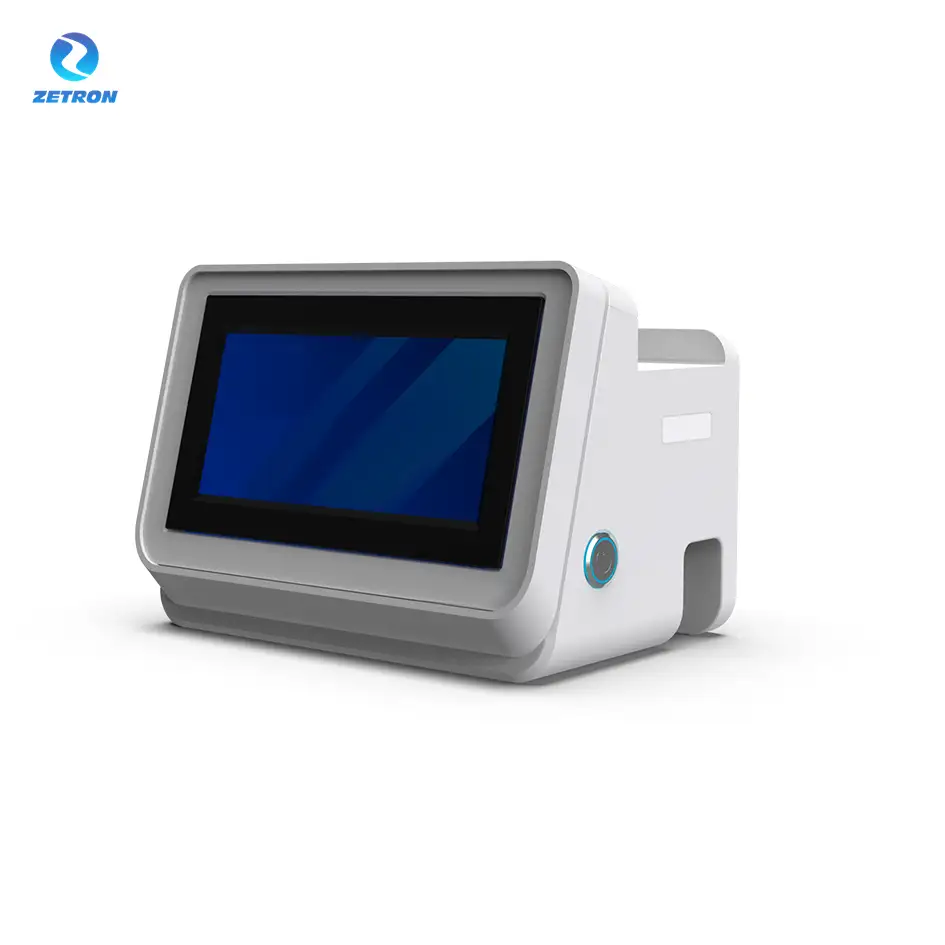

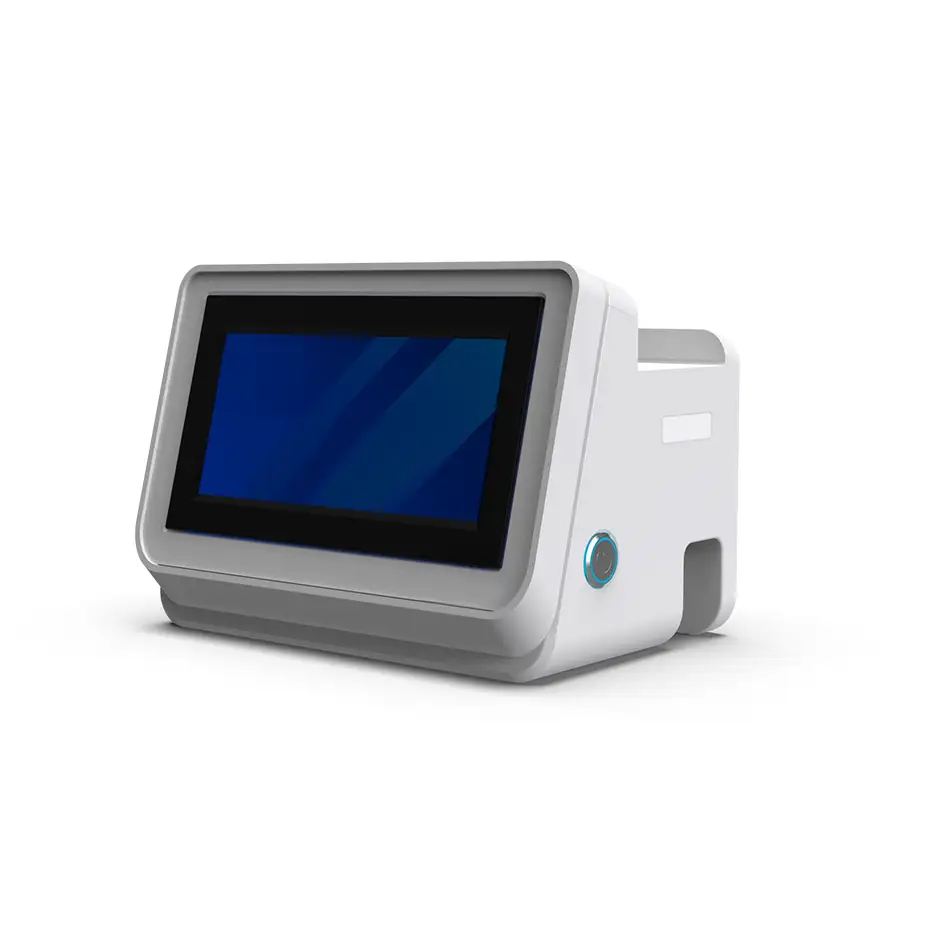

FIT-550 Filter Integrity Tester

The FIT-550 Filter Integrity Tester is a high-performance and fully automated instrument designed to verify the integrity of sterilizing-grade filtration systems in pharmaceutical, biotech, food & beverage, and electronics industries.

Inquiry

Write a Review

Product Description

It complies with the 2020 Pharmacopoeia requirements and supports full authority management, audit trail, and electronic signatures, meeting GMP and Data Integrity guidelines.

Powered by an advanced ARM11 processor and Windows CE 6.0 platform, the FIT-550 offers excellent accuracy, high reliability, and seamless operation with built-in data storage and a professional database management option.

Features

FIT-550 Filter Integrity Tester 8 High intelligence: the test process is fully automatically controlled, without manual intervention;

FIT-550 Filter Integrity Tester 9 High reliability: high detection accuracy and good repeatably;

FIT-550 Filter Integrity Tester 10 High user-friendly: English operating menu,touchable screen, friendly operation interface;

FIT-550 Filter Integrity Tester 11 Multi-function: can be used to test single-core filters, multi-core filters, and multiple test functions;

FIT-550 Filter Integrity Tester 12 High integration: the instrument adopts a portable design, small size, and easy to use;

FIT-550 Filter Integrity Tester 13 High-tech: uses ARM11 controller and Windows CE 6.0 system;

FIT-550 Filter Integrity Tester 14 High capacity: data storage, real-time printing, comply with GMP requirements.

FIT-550 Filter Integrity Tester 15 With IQ/OQ/PQ files

Product Integrity detection principle

Forward flow, pressure holding (diffusion type), and bubble point testing are all based on the following fundamental methods:

Measure or observe the volume of gas that permeates from one end of a wetted filter membrane to the other under a gas pressure gradient.

图片6 (6)

图片7 (4)

Applications

ScreenShot_2026-04-28_135400_798

Pharmaceuticals: To ensure the sterility of injectable drugs, verify the performance ofsterilizing filters, and maintain purity for biological products.

图片9 (3)

Biotechnology: To maintain the purity of biological products and ensure the integrityof filters used in bioprocessing.

图片10 (3)

Microelectronics: To prevent contamination in a sector where high-purity standardsare essential.

图片11 (3)

Food and Beverage: To guarantee the safety and quality of products like bottledwater and dairy products by ensuring the filtration system is free from contaminants.

Product Paramenters

Model	FIT-550
Power supply	110V-240V AC, 50/60Hz; 100W
Max operation pressure	9999 mbar
Min air inlet pressure	100 mbar
Test range Test pressure	300-7000mbar
Test accuracy	Sensitivity: ± 1 mbar; Bubble point: ±50 mbar; Diffusion flow test: 0.1ml/min Water intrusion test: 0.01ml/min


Operating conditions	Ambient temperature: 0℃- 60℃; Relative humidity: 10-80%


Test time	Basic bubble point test: 4 min±2min; Diffusion flow test 7±2min; Water immersion flow test 7±2min; System air tightness: 3±1min;






Printing function	printing test conditions, test results, test curves
Display	10.4inch Color touch screen
Storage	32G storage space, store 1 million data
Dimensions	240(W) x320(D) x 260(H)mm ,4.5kg
Output	USB, support RS232, 4-20mA customization
Printer	inner printer
Warranty time	One year

Why choose us?

Our self-developed products have been successfully applied in various provinces and municipalities across China, including Taiwan and Hong Kong and Macau. By the end of 2024, we had exported to 24 countries. Our business encompasses the research and development and production of products such as biopharmaceutical equipment, power materials, and ecological monitoring. We have multiple product lines to meet diverse and customized customer needs.

Power supply	110V-240V AC, 50/60Hz; 100W
Max operation pressure	9999 mbar
Min air inlet pressure	100 mbar
Test range Test pressure	300-7000mbar
Test accuracy	Sensitivity: ± 1 mbar; Bubble point: ±50 mbar; Diffusion flow test: 0.1ml/min Water intrusion test: 0.01ml/min
Operating conditions	Ambient temperature: 0℃- 60℃; Relative humidity: 10-80%
Test time	Basic bubble point test: 4 min±2min; Diffusion flow test 7±2min; Water immersion flow test 7±2min; System air tightness: 3±1min;
Printing function	printing test conditions, test results, test curves
Display	10.4inch Color touch screen
Storage	32G storage space, store 1 million data
Dimensions	240(W) x320(D) x 260(H)mm ,4.5kg
Output	USB, support RS232, 4-20mA customization
Printer	inner printer
Warranty time	One year

Suitable for multi filters:

Disc membrane: Various membranes from Φ25mm to Φ300mm

Standard cartridge: 2.5″ to 40″, 1 to 9 cores

Capsule

Mini cartridge

Air filter inspection: 2.5″ to 40″
