Power supply/power | 170-240V AC, 50/60Hz 100W |
Maximum operating pressure | 6000 mbar |
Minimum inlet pressure | 200 mbar |
Dimensions | 40cm(width) x30cm(depth) x 25cm(height) |
Test range | forward flow: 0.1-200ml/min water immersion: 0.05-50ml/min Bubble point: 700-6000mbar |
Test accuracy | ±3% or ±5‰F.S, whichever is greater |
Sensitivity | forward flow: 0.1ml/min water immersion: 0.01ml/min bubble point: 50mbar |
Repeatability error | ≤3% |
Operating conditions | Ambient temperature: 0℃- 50℃ Relative humidity: 10-80% |
Test time | Basic bubble point Diffusion flow test: 2 min±2min test 7±2min Water immersion flow test 7±2min System air tightness: 3±1min |

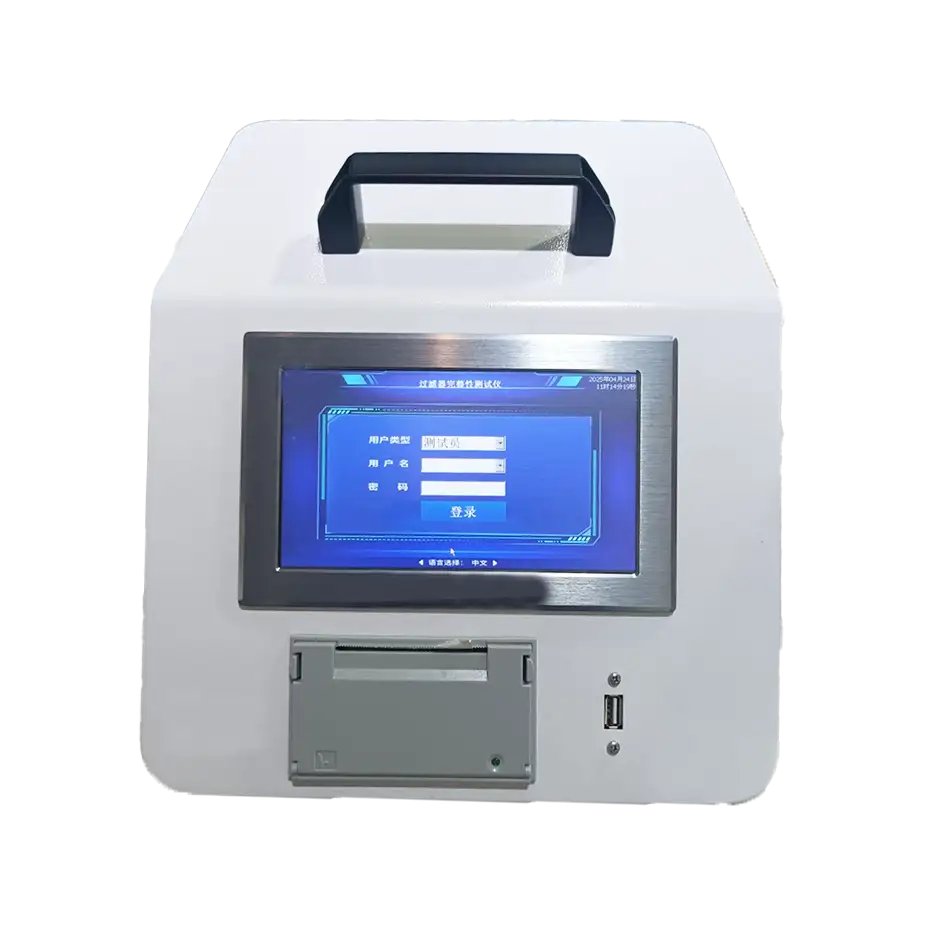

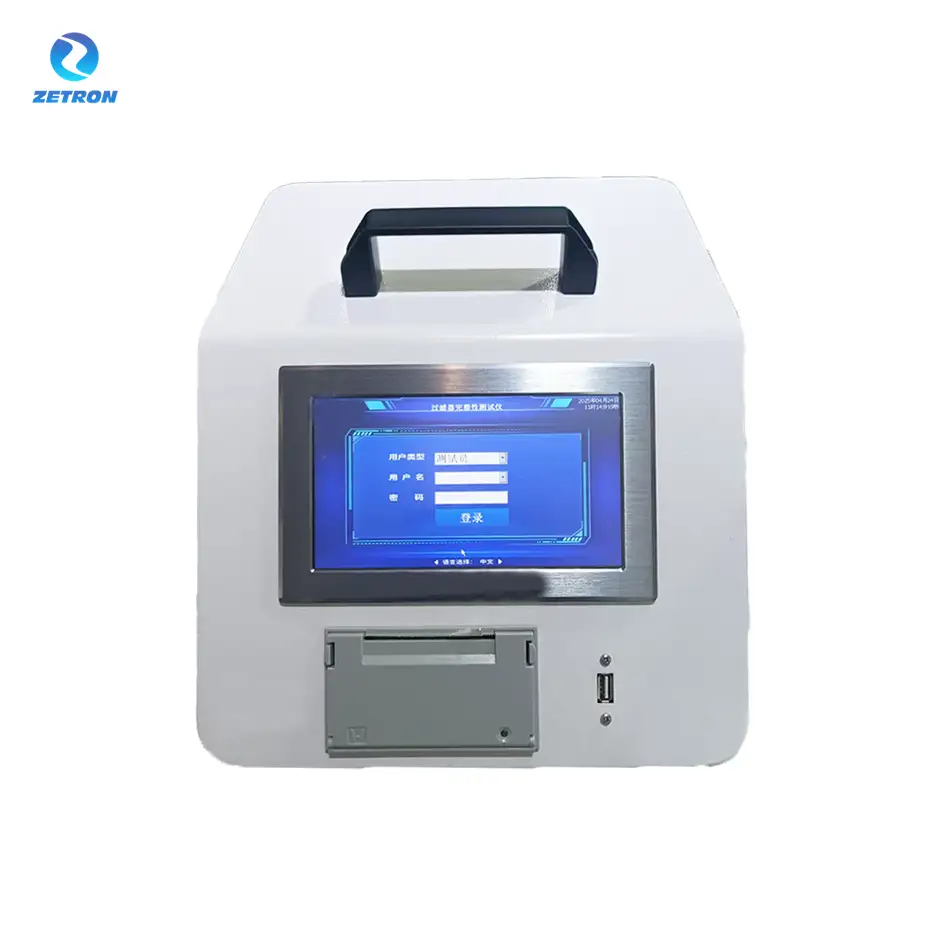

FIT-110 Filter Integrity Tester
This product meets the requirements of the Pharmacopoeia issued in 2020,implementing instrument authority management, audit tracking, and electronic signature.It can also be equipped with an exclusive database expert management system.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
This product meets the requirements of the Pharmacopoeia issued in 2020,implementing instrument authority management, audit tracking, and electronic signature.It can also be equipped with an exclusive database expert management system.
Features
Application
Product Paramenters
| Power supply/power | 170-240V AC, 50/60Hz 100W |
| Maximum operating pressure | 6000 mbar |
| Minimum inlet pressure | 200 mbar |
| Dimensions | 40cm(width) x30cm(depth) x 25cm(height) |
| Test range | forward flow: 0.1-200ml/min |
| water immersion: 0.05-50ml/min | |
| Bubble point: 700-6000mbar | |
| Test accuracy | ±3% or ±5‰F.S, whichever is greater |
| Sensitivity | forward flow: 0.1ml/min |
| water immersion: 0.01ml/min | |
| bubble point: 50mbar | |
| Repeatability error | ≤3% |
| Operating conditions | Ambient temperature: 0℃- 50℃ |
| Relative humidity: 10-80% | |
| Test time | Basic bubble point |
| Diffusion flow test: 2 min±2min test 7±2min | |
| Water immersion flow test 7±2min | |
| System air tightness: 3±1min |
l Disc membrane: various membranes from Φ25mm to Φ300mm
l Standard cartridge: 2.5″ to 40″, 1 to 9 cores
l Capsule
l Mini cartridge
l Air filter testing 2.5″ to 40″ other parameter cartridges
