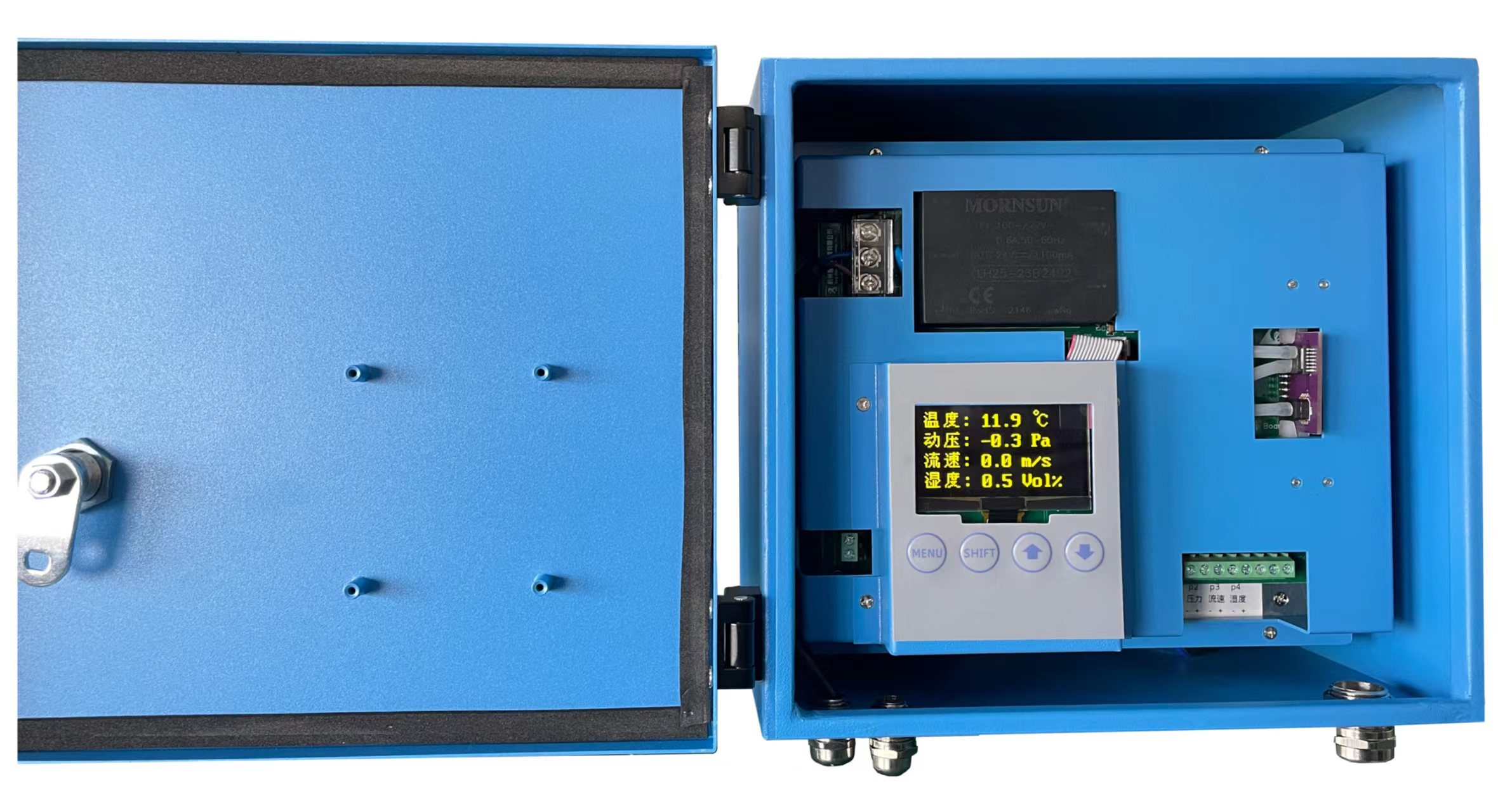

XB-660F Temp Pressure Flow Monitoring Instrument

The XB-660F temperature, pressure, flow and humidity monitor is composed of pitot tube, thermal resistance, micro pressure difference / absolute pressure sensor group, back blowing unit and signal control processor. It is an integrated flow rate, dynamic pressure, static pressure and smoke temperature monitor specially developed for the high dust, high temperature, high humidity and high corrosion environment of exhaust gas monitoring. It is applicable to the real-time continuous measurement of the flow rate, pressure, temperature and flow of exhaust gas by the continuous exhaust gas monitoring system (CEMS). The pitot tube, pressure sensor and temperature sensor are used to measure the dynamic pressure, static pressure and temperature of the exhaust gas. These parameters are proportional to the measured exhaust gas flow rate, so the flow rate of the exhaust gas can be quantified.

Features:

* Original imported sensor chips, to ensure the accuracy and service life of the instrument

* Debuggable probe rod, adjust the length of the probe rod by itself according to the need.

* Probe rod made of 316F, corrosion resistance.

* Increased humidity measurement, no need to purchase a separate humidity meter more cost effective. simple installation and easy maintenance.

* Real-time online monitoring of humidity, temperature, static pressure, dynamic pressure, flow rate real-time upload.

* Set with automatic zero calibration, automatic blowback Pitot tube is not easy to clog long service life removable pressure module for more convenient maintenance.

* Power protection module, both positive and negative can be used without worrying about reverse connection and burning the machine.

* Debuggable probe rod, adjust the length of the probe rod by itself according to the need.

* Probe rod made of 316F, corrosion resistance.

* Increased humidity measurement, no need to purchase a separate humidity meter more cost effective. simple installation and easy maintenance.

* Real-time online monitoring of humidity, temperature, static pressure, dynamic pressure, flow rate real-time upload.

* Set with automatic zero calibration, automatic blowback Pitot tube is not easy to clog long service life removable pressure module for more convenient maintenance.

* Power protection module, both positive and negative can be used without worrying about reverse connection and burning the machine.

Tag: Temp pressure flow monitoring instrument、Micro differential pressure sensor、Exhaust gas monitoring system、Flow rate of exhaust gas、Fixed exhaust gas detector、OEM/ODM service.
