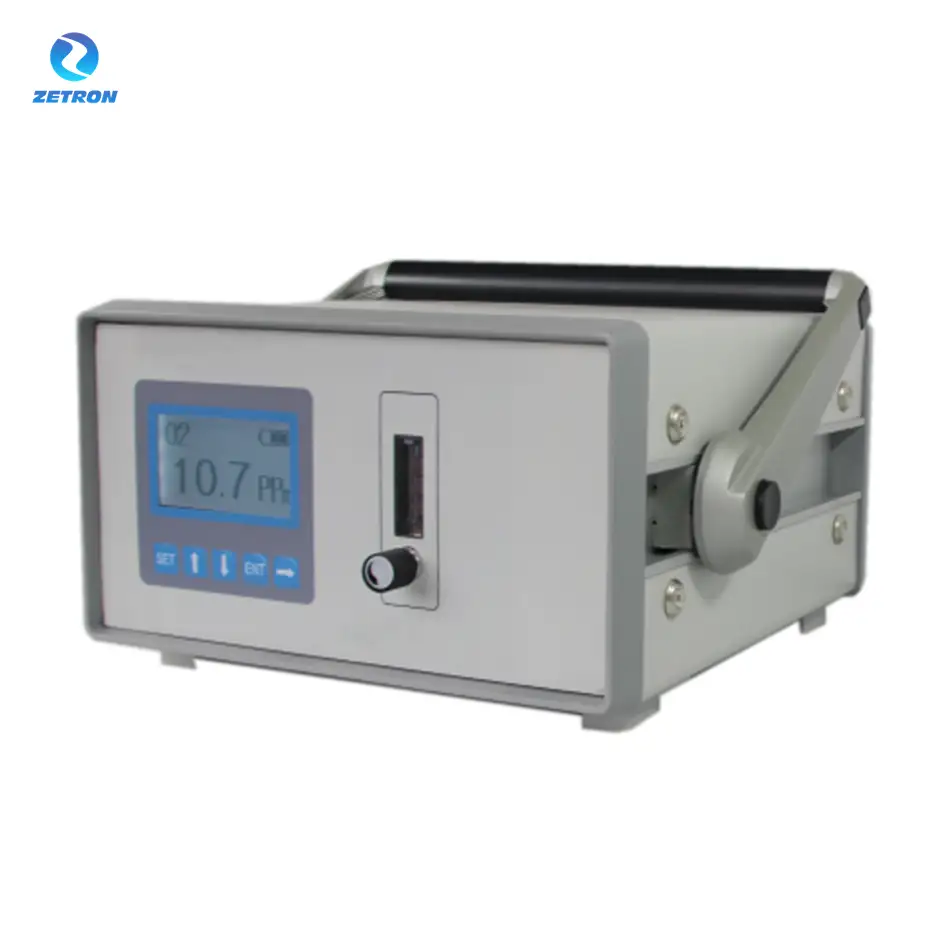

Portable Oxygen Analyzer for Industrial O2 Gas Monitoring – MIC300-A08
FEATURES
Oxygen analyzer features a 128*64 LCD display , a built-in high-performance lithium battery, and is portable and easy to use . It is a new type of intelligent industrial gas analyzer developed using imported electrochemical and ion flow technologies combined with advanced single-chip microcomputer technology . It is widely used for rapid analysis of oxygen content in air separation nitrogen production, chemical processes, high-temperature sintering furnace protective gases, electronic industry protective gases , and in the glass, building materials, and various mixed gases industries.
SPECIFICATIONS
| Measurement range | 0.01 % - 100% (measuring range can be customized) |
| Resolution | 0.01%/0.1% |
| Measurement accuracy | ≤±2%FS |
| Repeatability | ≤±1%FS |
| Stability | ≤±1%FS /7d |
| Response time | T 90 ≤30S |
| Sample gas flow rate | 400±50mL/min |
| Sample gas pressure | 0.10 MPa ≤ Inlet pressure ≤ 0.20 MPa |
| Sample gas temperature | 0-50 ℃ |
| Ambient temperature | -5℃ to + 50 ℃ |
| Ambient humidity | ≤90%RH |
| Charging power supply | 100～240VAC 50/60Hz 1A |
| Standby time | A single charge can last for 8-12 hours. |
| External dimensions | 2 60mm (width) x 145mm (height) x 330mm (depth) |
| Instrument weight | Approximately 4 kg |
| Measurement principle | Electrochemical sensors |
| Measuring medium | Common gases include inert gases , hydrogen, carbon dioxide, |
| carbon monoxide , and hydrocarbons (if it contains SO2, NOx, | |
| NH3, H2S, etc., it must be specified when ordering). | |
| Instrument lifespan | More than five years (normal use) |
| Sensor lifespan | More than two years (normal use) |
| Precision air pump | for the sample gas (must be specified when ordering). |
