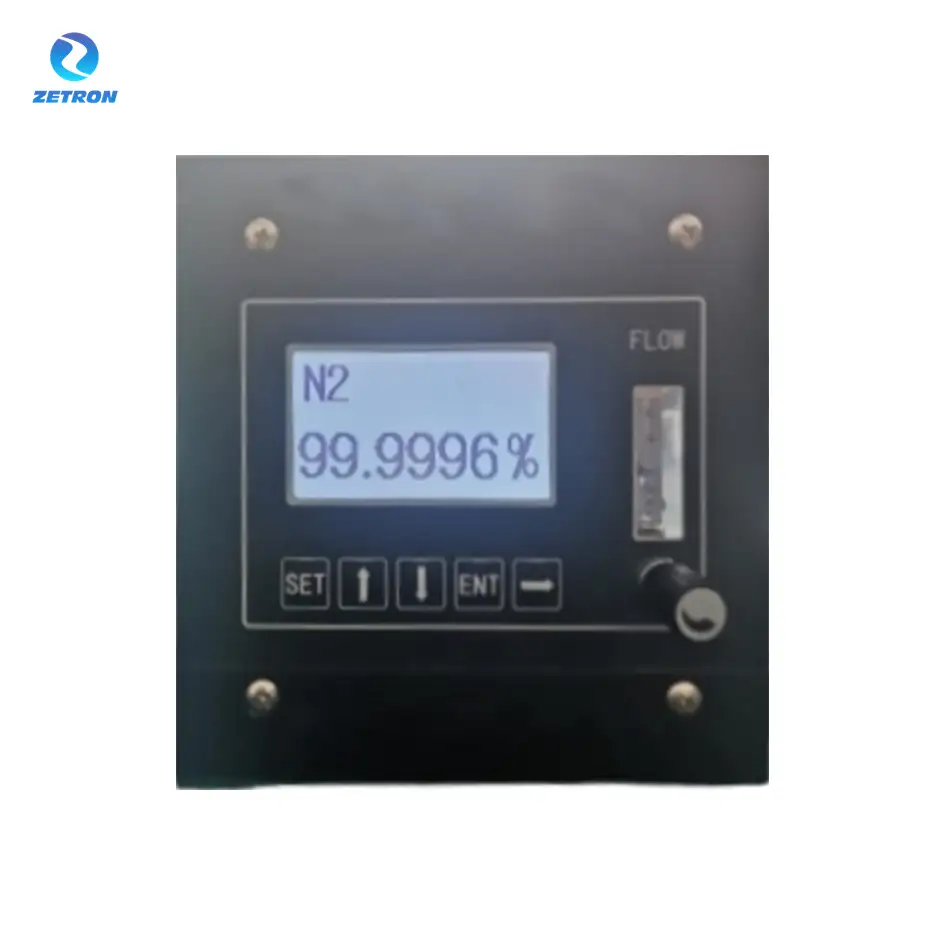

Nitrogen Purity Meter for Industrial N2 Gas Monitoring – MIC300-A02
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
FEATURES
The nitrogen purity analyzer uses an electrochemical and ion flow oxygen sensor to measure the oxygen content in a gas and calculates the concentration of another gas besides oxygen by back-calculating the percentage. This instrument is widely used in industries such as steel, air separation, and nitrogen generators.
SPECIFICATIONS
| Measurement range | 99% - 99.9999 % |
| Measurement accuracy | ≤±2%FS |
| Heavy complex sex | ≤±1%FS |
| stable Certainly sex | ≤±1%FS /7d |
| Response time | T 90 ≤30S |
| Sample gas pressure | 0.10 MPa ≤ Inlet pressure ≤ 0.20 MPa |
| Sample gas temperature | 0-50 ℃ |
| Ambient temperature | -5℃ to + 50 ℃ |
| Ambient humidity | ≤90%RH |
| Output signal | 4～20mA (Customization available upon request; please specify when ordering ) |
| Operating power supply | 00～240VAC 50/60Hz 1A |
| External dimensions | 160mm (width) x 80mm (height) x 170mm (depth) |
| Opening dimensions | 150 mm (width) x 75 mm (height) |
| Instrument weight | Approximately 1 kg |
| Measurement Principle | Electrochemical Sensor |
| Measurement medium | inert gas |
| Instrument lifespan | Greater than five years (under normal use) |
| Sensor lifespan | Greater than two years (under normal use) |
| Precision vacuum pump | For use under negative or normal pressure conditions (must be specified when ordering). |
