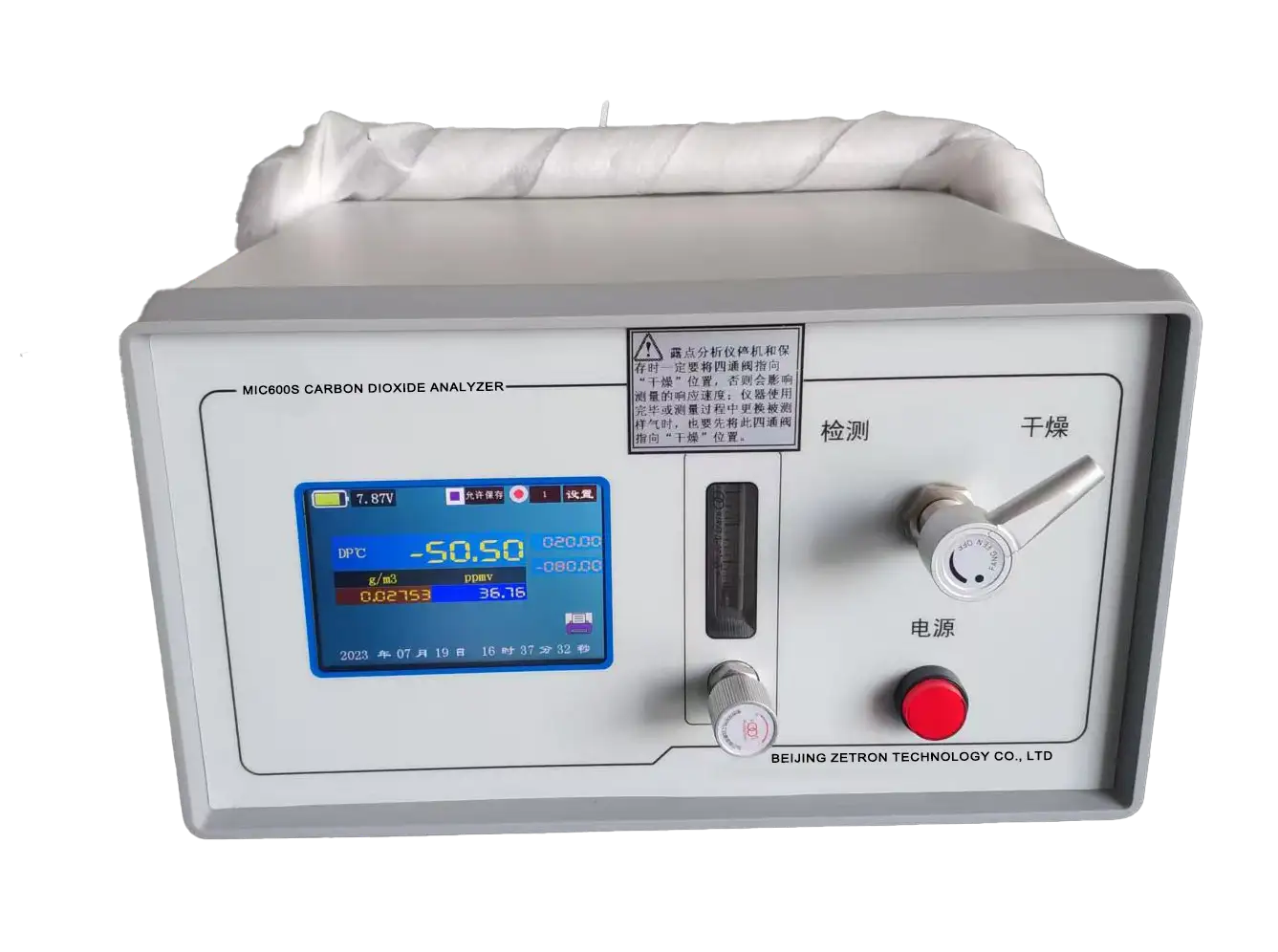

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2

Equipped with a user-friendly touchscreen interface, real-time data display, alarm functions, and multiple communication outputs including 4-20mA, RS485 Modbus, and relay signals, the analyzer can be seamlessly integrated into industrial control and monitoring systems. Its robust design ensures reliable operation in demanding environments, making it ideal for applications requiring continuous CO₂ concentration analysis.

The MIC600S-CO2 is widely used in food and beverage production, fermentation processes, biogas plants, chemical and petrochemical industries, environmental monitoring, greenhouse agriculture, and industrial process control, providing dependable CO₂ measurement to enhance process efficiency, product quality, and operational safety.

Inquiry

Write a Review

FEATURES

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 3 Adopting high-performance micro-flow thermal conductivity sensor with long life, high sensitivity, fast response speed and good stability.

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 4 Chinese human-machine dialog menu, intuitive and convenient operation.

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 5 Timing automatic storage function, you can view the stored data at any time

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 6 Upper and lower limit alarm outputs can be set arbitrarily within the full range.

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 7 Alarm point can be set arbitrarily within the full range of alarms

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 8 Standard RS232 or RS485 communication port can realize two-way communication with computer.

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 9 Optional built-in pump and external filter

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 10 B type is economic 128×64 dot matrix liquid crystal, C type is engineering 320×240 dot matrix liquid crystal, D type is intelligent 800×400 touch screen combined with embedded RAM technology instruments;

SPECIFICATIONS

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 11 Detection Range: 0.00~99.99% CO2 Intermediate range is optional;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 12 Accuracy: ≤±2%F.S;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 13 Resolution: 0.01%;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 14 Stability: Zero drift ≤±2%F.S/7d;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 15 Range drift ≤±2%F.S/7d. 5;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 16 Repeatability: ≤±1%;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 17 Warm-up time: ≤15 minutes;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 18 Response time: T90≤15 seconds;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 19 Sample gas flow: 300±10mL/min; 9.

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 20 Sample gas pressure: 0.05Mpa≤inlet pressure≤0.25Mpa;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 21 Output signal: 4～20mA or 0～10mA;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 22 Contact capacity: 220VAC, 1A 24VDC, 2A;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 23 Working environment: Temperature: -10℃～＋45℃;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 24 Humidity: ≤90% RH;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 25 Working power supply: 220VAC±10%, 50Hz±5%;

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 26 Overall dimensions: B type: 270mm (width) × 132mm (height)

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 27 Installation size: B: 238mm (W) × 132mm (H) × 330mm (D)

Carbon Dioxide Analyzer for Industrial CO2 Monitoring MIC600S-CO2 28 Weight: B about 3kg
