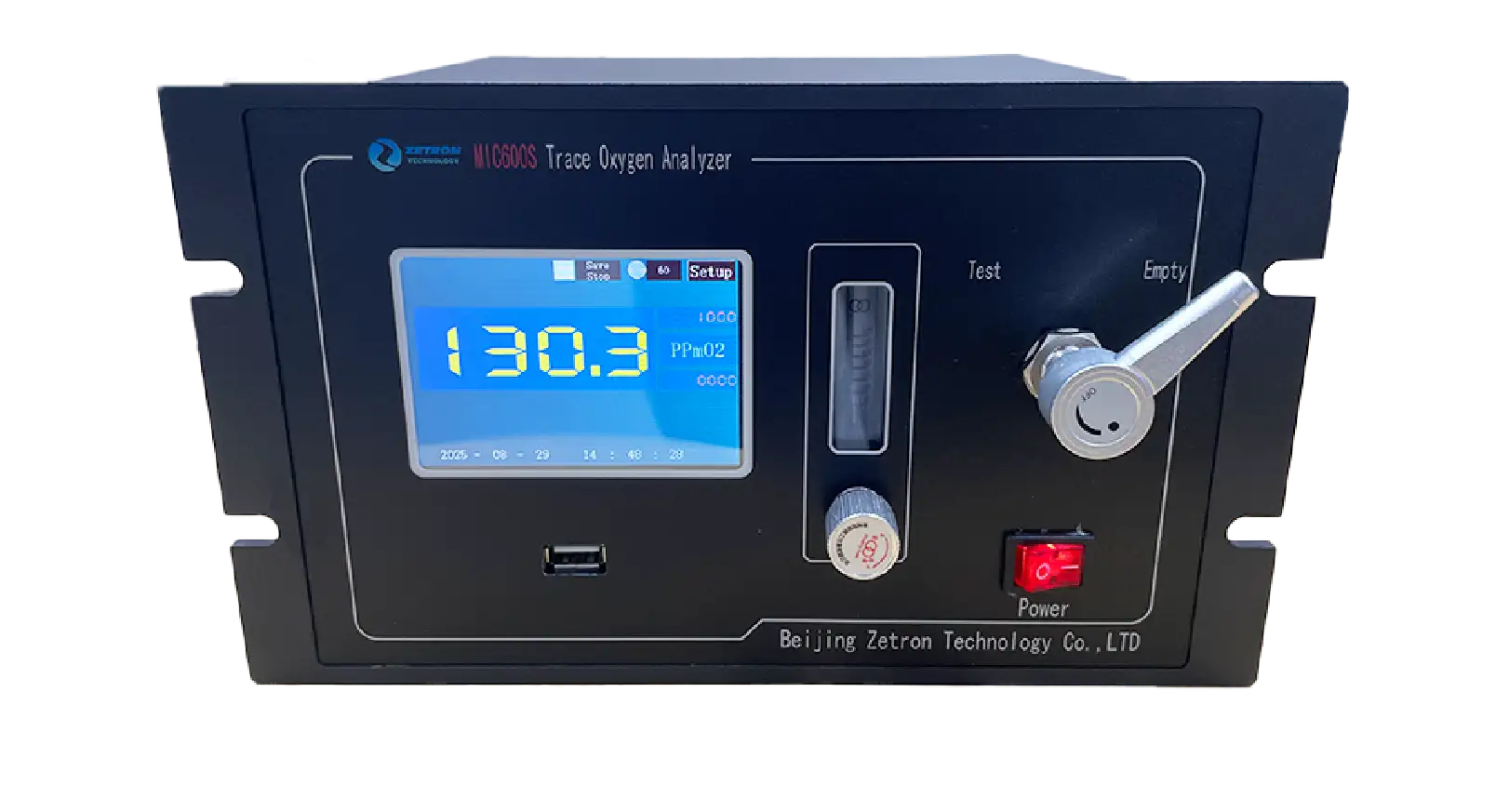

MIC600S Trace Oxygen Analyzer

MIC600S Trace Oxygen Analyzer is a high-precision, online instrument developed by our company for detecting and analyzing trace oxygen in inert gases. This instrument utilizes an electrochemical sensor combined with single-chip microcomputer control technology, resulting in high measurement accuracy and ease of use.

Inquiry

Write a Review

Product Description

The instrument features a 3.5-inch touchscreen display with a narrow viewing angle and is intuitive and eye-catching. Its fully Chinese menu operation is easy to understand, simple, and reliable. It features control point output, an over-limit self-alarm (buzzer), and customizable control modes. It also includes a standard 4-20mA current output port and other external connections. When unattended, it can periodically record measurement values. When a measurement result exceeds the set alarm value , the instrument automatically alarms.

Features

MIC600S Trace Oxygen Analyzer 3 Integrated design, small size, light weight, simple structure, reasonable layout;

MIC600S Trace Oxygen Analyzer 4 Parameters such as purity, furnace temperature, thermocouple temperature, zirconium tube potential, etc. can be displayed for easy reference.

MIC600S Trace Oxygen Analyzer 5 Parameters such as standard current output, purity limit alarm, purity limit switch output, etc. can be set and modified by buttons;

MIC600S Trace Oxygen Analyzer 6 The measurement and control of the sensor furnace temperature are completed by the single-chip microcomputer, and it has the function of automatically cutting off the heating power supply when over-temperature occurs, which is safe and reliable;

MIC600S Trace Oxygen Analyzer 7 Built-in flow control system provides a stable sample gas flow for the sensor, so that the instrument has better stability and reliability;

MIC600S Trace Oxygen Analyzer 8 The instrument analysis process is continuous, and the range is automatically switched, which can be used for online analysis or laboratory analysis, etc.

MIC600S Trace Oxygen Analyzer 9 The real-time data storage function is convenient for users to check historical records, and can store up to 3,000 data. When the data record is full, it will be overwritten from the first data.

Product structure composition

Panel structure of the instrument

Panel structure of the instrument

Functional parameters

Model	MIC600S
Measuring range	0.01～ 10/100 / 1000 PPm O2 ;
Accuracy	≤±2%FS;
Stability	zero drift ≤ ± 1 % FS/7d;

	Range drift ≤ ±2% FS/7d;
Repeatability	≤±1%;
Sample gas flow rate	400 ~ 500 ml/min;
Response time	T95 < 5s;
Sample gas pressure	inlet pressure ≤ 0.5MPa;
Minimum resolution	0.01 ppm ;
Control output	dual relay contact output, can be set arbitrarily;
Contact capacity	220VAC 2A; 24VDC 2A;
Analog output	4~20mA current signal;
Overall dimensions	244 (width) × 142 (height) × 230 (depth);
Opening size	210 + 1 (width) × 132 + 1 (height);
Working environment	Temperature: -5℃～+50℃;

	Humidity: ≤90%RH;
Working power supply	100 ~220V AC , 50/60HZ;
Fuse	220V/1A (built into the power socket, one for backup);
Weight	about 3 kg ;

Applications

The instrument is suitable for the detection of oxygen content in gas in gas making, chemical industry, metallurgy, electronics industry, medical treatment and other fields.
