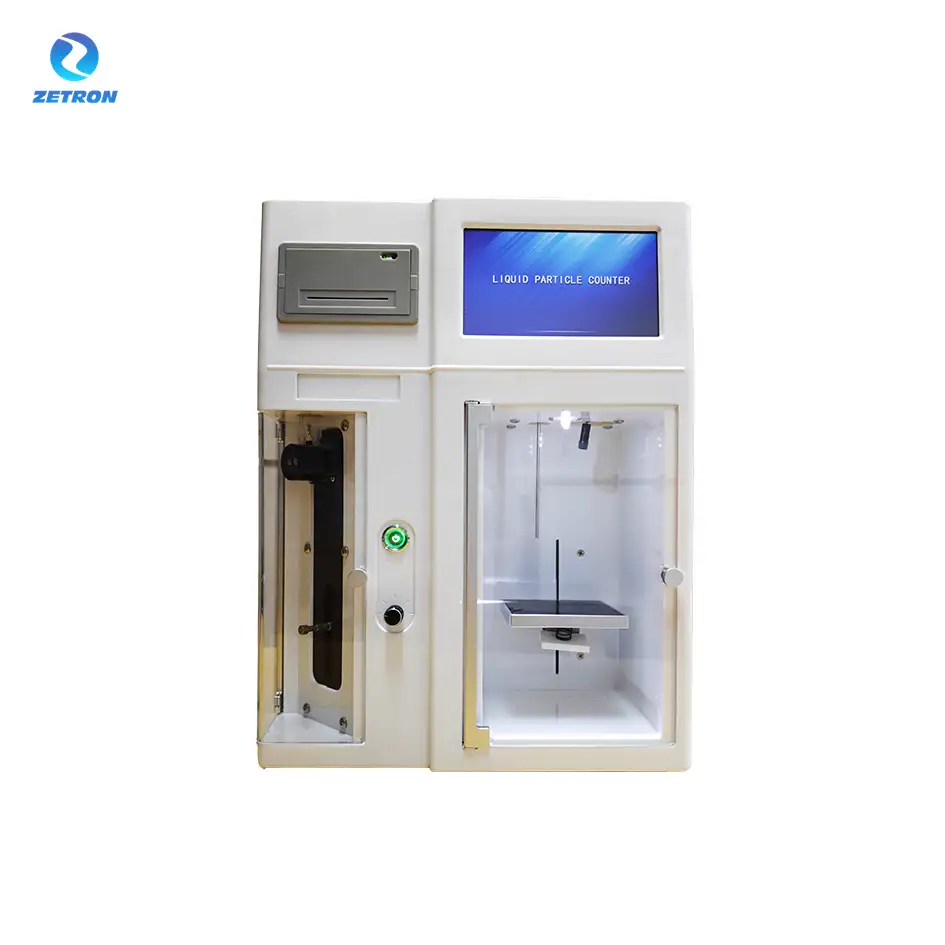

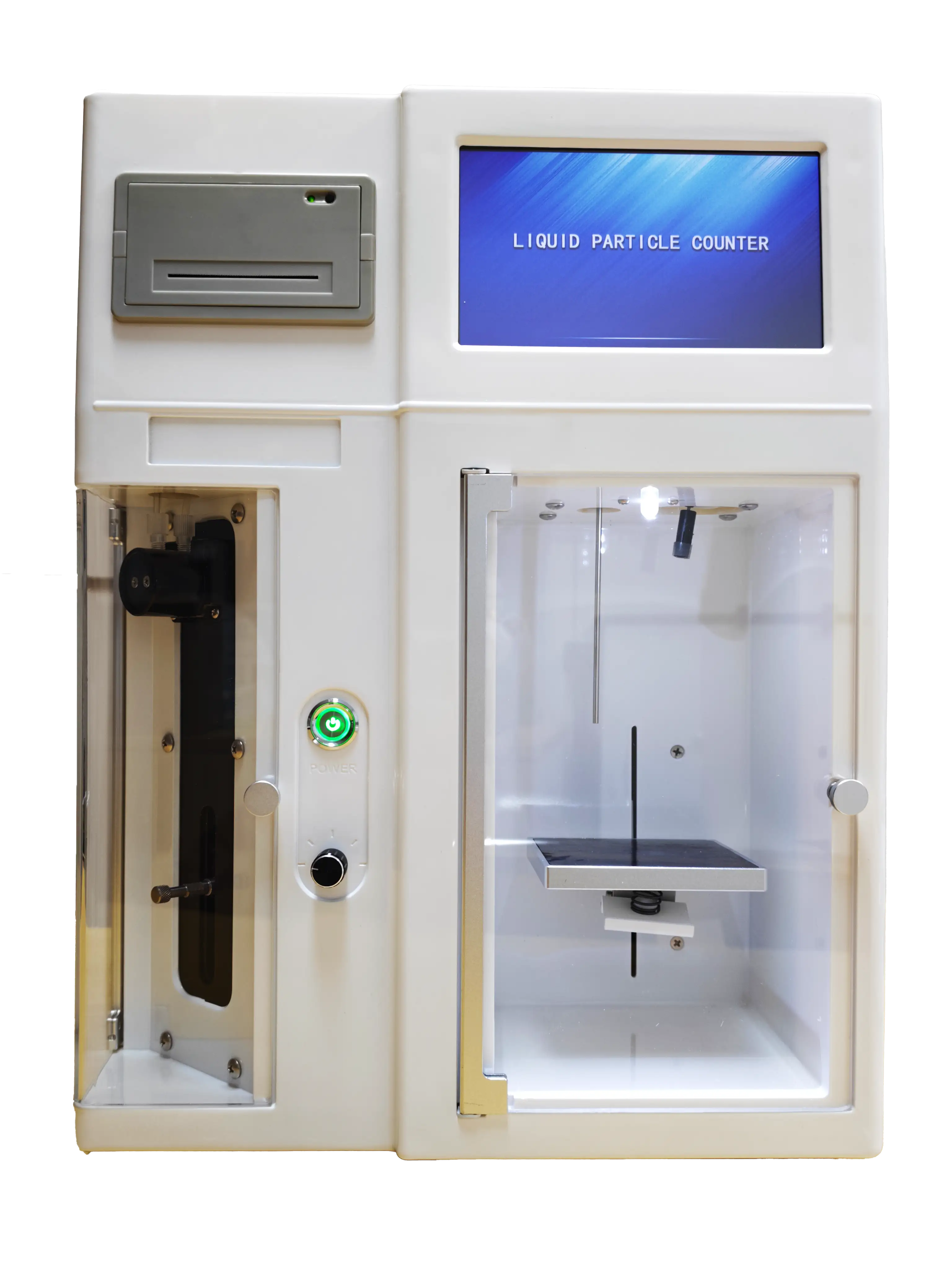

LPC-6CE Intelligent Liquid Particle Counter

Product Description

The LPC-6CE is a high-precision liquid particle counter designed for accurate measurement of particle size and quantity in various types of injectable solutions, sterile powders, and pharmaceutical packaging materials. It features an advanced laser light source and compensation circuitry to ensure precise testing across both colorless and colored liquids, including non-electrolyte and high-viscosity samples. The system includes an imported high-pressure injection pump with adjustable volume settings, ensuring consistent performance regardless of altitude or environmental conditions. Key components in contact with liquids are made from imported 316L stainless steel and PTFE, allowing direct testing of organic solvents and oil-based substances. With a user-friendly touchscreen interface, multiple testing modes, large data storage capacity, and comprehensive connectivity options, the LPC-6CE provides a reliable and flexible solution for liquid particle analysis in pharmaceutical and industrial applications.

COMPANY STRENGTH

LPC-6CE Intelligent Liquid Particle Counter 2 Meet the 2020 edition of the "Chinese Pharmacopoeia" and can directly detect the size and number of insoluble particles of injections, sterile powders and drug packaging materials (YBB00272004-2015).

LPC-6CE Intelligent Liquid Particle Counter 3 Adopt high-performance imported laser light sources and compensation circuits to ensure the test accuracy of various colorless and colored samples, and can directly detect electrolyte-free samples.

LPC-6CE Intelligent Liquid Particle Counter 4 Adopt imported high-pressure injection pump sampling system, which can set the injection volume according to the sample variety tested, with high injection accuracy, meeting the detection requirements of high-viscosity samples, and is not affected by factors such as geographical location, meeting the use requirements of different altitudes.

LPC-6CE Intelligent Liquid Particle Counter 5 The injection slit and pipeline are made of imported 316L and imported PTFE materials, which can directly detect special solutions such as organic solvents and oil matrices.

According to the demand of injection volume, different high-pressure injection systems can be replaced

LPC-6CE Intelligent Liquid Particle Counter 6 It has a large infusion test according to the pharmacopoeia standard, and the sampling volume and test times can be set arbitrarily

LPC-6CE Intelligent Liquid Particle Counter 7 It has a drug packaging material test, and the sampling volume, judgment specifications and test times can be set arbitrarily

LPC-6CE Intelligent Liquid Particle Counter 8 It has a special test program for small-volume injection (small injection), which can be injected according to the specifications of the small injection, and automatically converted to the size and number of container particles after the test is completed, which meets the requirements of the "Chinese Pharmacopoeia" and international general requirements

LPC-6CE Intelligent Liquid Particle Counter 9 It has a custom mode, and can select channels for testing in the particle size range of the entire channel, and can set greater than or equal to values and interval values

LPC-6CE Intelligent Liquid Particle Counter 10 Color touch large screen operation: Chinese and English interface switching, simple and fast operation, powerful functions. Can display multi-channel test data at the same time

LPC-6CE Intelligent Liquid Particle Counter 11 It has sample name input and automatic storage, the number of sample names is up to 1000 (expandable), and the operation is convenient and fast.

LPC-6CE Intelligent Liquid Particle Counter 12 Data storage up to 1,000,000 records, search, query and print through (sample name, sample batch number, test time, test account)

LPC-6CE Intelligent Liquid Particle Counter 13 Equipped with a dot matrix printer to meet the long-term data storage

Equipped with host computer software, RS232 serial port data transmission, USB data copy

LPC-6CE Intelligent Liquid Particle Counter 14 Can be connected to LIMES and other software management platforms, dedicated data analysis software for data storage and statistics

LPC-6CE Intelligent Liquid Particle Counter 15 With three-level password management authority

LPC-6CE Intelligent Liquid Particle Counter 16 A single machine has 128 operators to manage (expandable)

LPC-6CE Intelligent Liquid Particle Counter 17 Can provide stand-alone version of 3Q certification documents and information

Functional parameters

Model	LPC-6CE
Test range	1～500μm
Full channel settings	≥5μm, ≥8μm, ≥10μm, ≥12μm, ≥25μm, ≥100μm (channels can be customized according to user requirements)
Pharmacopoeia standards	≥10μm, ≥25μm,
Drug packaging material channel	≥5μm, ≥10μm, ≥25μm,
Injection volume	≥0.1ml or more any volume
Counting range	0～9999999 particles
Detection particle concentration	0～10000 particles/ml
Relative standard deviation	RSD ≤ 2% (standard particles ≥1000 particles/ml)
Channel resolution	≥ 95% (≥10μm channel)
Sampling time	5ml (<10 seconds) 100ml (<3 minutes)
Accuracy	Within ±5% of the specified value
Stirring speed	0~2000 rpm
Working temperature	0~40℃
Working voltage	AC220V±10%; 50Hz≤90W
Instrument size	420350470(mm)

Applications

The intelligent particle detector is designed for the pharmaceutical, medical device and packaging material industries. It is suitable for particle contamination detection of injections, sterile powders, small-volume injections and other drugs, filtration rate verification of infusion equipment (such as anesthesia bags, precision filters), and compliance testing of drug packaging materials (glass bottles, rubber stoppers). It also meets the high-precision data requirements of laboratory research and development, GMP production quality control and third-party testing agencies, and comprehensively protects drug safety and quality.
