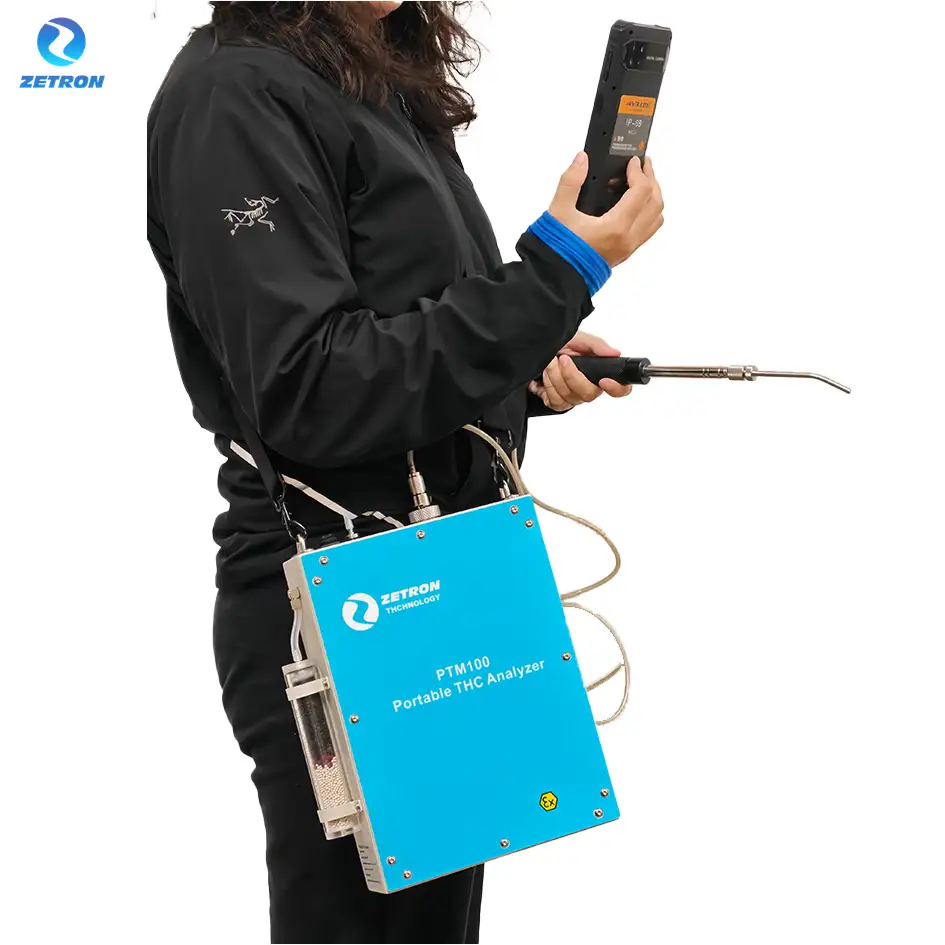

Volatile Organic Gas Analyzer Portable VOC Detector for Environmental Monitoring – PTM100
- Support hydrogen flame ionization (standard configuration) and photoionization dual detectors;
- Digital display of hydrogen pressure and intelligent reminder of remaining working time;
- Intelligent reminder of battery power and remaining time;
- FID automatic ignition, flame temperature real-time monitoring;
- Built-in database of more than 200 volatile organic gases;
- Host explosion-proof mark: Ex db ia IIC T4 Gb;
- The explosion-proof hand operator uses a 6.5-inch touch screen and supports Bluetooth and WIFI;
- Explosion-proof mark of handheld operator: Ex ib IIC T4 Gb/ Ex ibD 21 T130℃.
|
Main parameters |
Parameter range |
|
Measuring range |
FID: 0～ 100,000 ppm |
|
PID: 0～2,000 ppm , multiple ranges available; [Optional configuration] |
|
|
Method detection limit |
FID: 0.5 ppm methane |
|
PID: 0.5 ppm isobutylene |
|
|
Accuracy |
±5% of reading or ±1 ppm, whichever is greater |
|
±5% of reading or ±1 ppm, whichever is greater |
|
|
Repeatability |
FID: 2% at 500 ppm methane |
|
PID: 1% at 100 ppm isobutylene |
|
|
Responding to an event (T 90 ) |
FID: ≤3.5 s (10000ppm methane) |
|
PID: ≤3.5 s ( 5 00ppm isobutylene) |
|
|
Sampling flow |
800 ml/ min ( adjustable) |
|
Battery life |
≥ 10 hours (0℃) |
|
Hydrogen endurance |
≥ 15 hours |
|
Power adapter |
DC8.4 V 1A |
|
Work Environment |
- 30 ~45° C , 10 % ~95% RH |
|
Gas interface |
1/4 inch |
|
Host weight |
3. 5 KG |
