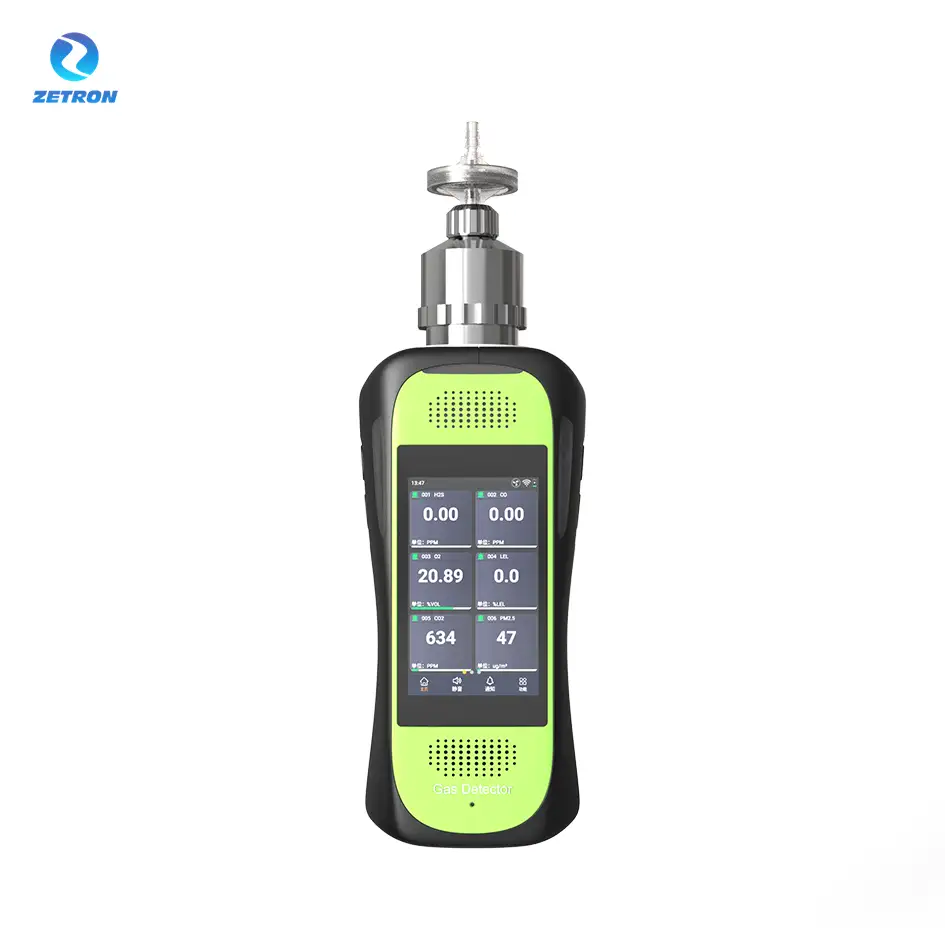

Portable 6-in-1 Gas Detector for Multi Gas Leak Detection and Safety Monitoring – MS600S 1

Portable 6-in-1 Gas Detector for Multi Gas Leak Detection and Safety Monitoring – MS600S 2

Portable 6-in-1 Gas Detector for Multi Gas Leak Detection and Safety Monitoring – MS600S 3

Portable 6-in-1 Gas Detector for Multi Gas Leak Detection and Safety Monitoring – MS600S 4

Portable 6-in-1 Gas Detector for Multi Gas Leak Detection and Safety Monitoring – MS600S

Name: Portable 6-in-1 Gas Detector for Multi Gas Leak Detection and Safety Monitoring – MS600S
Brand: Zetron

The MS600S portable six-in-one gas detector is primarily used for the rapid and accurate detection of gas leaks or for alarming when gas concentrations exceed safe levels. It features a front-end digital sensor that can be replaced without disassembling the device. Each digital sensor is plug-and-play and intelligently recognized, allowing for the simultaneous configuration of multiple single digital sensors for the detection of a wider range of gases. The main gas detection principles employed include: electrochemical, infrared, catalytic combustion, thermal conductivity, and PID photoionization.

Inquiry

Write a Review

Built-in pump suction measurement .
Pump blockage alarm.
LED lighting.
Employs digital sensors, each of which is pluggable, intelligently identified, plug-and-play, calibration-free, and can be inserted into any sensor slot.
You can turn any sensor on or off via the menu settings.
Sensor missing alarm, sensor lifespan expired warning.
A digital sensor that can be installed at the front end without disassembling the device for replacement can be replaced.
Unit switching, selectable units: μmol /mol, ppm, pphm, ppb , mg/m3, μg /m3, % Vol , %LEL .
Four physical buttons + touchscreen, quick one-click calibration function.
3.5-inch high-definition color touchscreen, IPS full-viewing angle, capacitive touchscreen.
Data storage : storage capacity of over 1 million records ; optional high-capacity storage card for storage of over 10 million records.
Communication interface : TYPE-C fast charging and communication.
Optional wireless transmission: Supports Bluetooth, WIFI, LoRa/LoraWAN, MESH, 4G/NB-IoT, etc., with signal strength display; WIFI and 4G support communication protocols such as HTTP , MQTT , TCP , UDP , etc.
Optional features: Beidou positioning, one-click location upload to the cloud platform, wireless interconnection between multiple instruments, support for viewing via mobile terminal APP, remote alarm, and reminders via telephone, SMS, and WeChat.
Supports remote maintenance and remote upgrades.
Fall alarm.
SOS one-button emergency call (motion alarm, active emergency call), lazy clock function.
Data recovery function , which can partially or completely restore factory data.
Built-in gas storage (combustible, VOC, and toxic gases).
Displays maximum, minimum, and weighted average values , as well as real-time curves, bar charts, and lists.
Multiple alarm sounds are available, and each alarm sound can be set independently. The alarm volume is greater than 95dB at 30cm.
Multiple alarm methods and modes , multiple alarm point settings , and the ability to disable alarms .
Alarm methods: audible and visual alarm, vibration alarm , and voice alarm.
Alarm types: concentration alarm, undervoltage alarm, fault alarm , pump blockage alarm, fall alarm, SOS alarm (motion alarm).
Alarm modes: Low alarm, High alarm, Zone alarm, TWA/STEL alarm .
Misoperation detection function .
Automatic zero-point tracking .
Multi-level calibration of target points .
Intrinsically safe circuit design , explosion-proof, vibration-proof , anti-static, and radiation-resistant.
Protection level IP68

Detection factors	Simultaneously detects 1-7 types of gases , as well as temperature, humidity, air pressure, altitude, and wind speed . Multiple additional sensors can be configured for replacement and detection. It is plug-and-play and features intelligent identification . The gases detected include toxic gases, combustible gases, oxygen, carbon dioxide, VOCs, etc. , depending on the site environment and user requirements .
Detection range	It depends on the site environment and user needs.
resolution	0.001ppm (0-10ppm high precision) / 0.01ppm (0～10 ppm); 0.01ppm (0～100 ppm), 0.1ppm (0～1000 ppm), 1ppm (0～ 1000 ppm and above); 0.1%LEL; 0.1 % and 0.01 % Vol
Unit display	Optional units: μmol/mol, ppm, pphm, ppb , mg/m3, μg /m3 , % Vol , %LEL
Detection principle	Electrochemical, catalytic combustion, infrared, thermal conductivity, semiconductor, PID photoionization, etc., depending on the measurement range, on-site environment, and user requirements.
Sensor lifespan	Electrochemical: 2-3 years; Catalytic combustion: 2-3 years; Infrared spectroscopy: 5-10 years; Thermal conductivity: 2-5 years; PID: 2-3 years
Detection method	Built-in pump suction type, pump suction sampling flow rate 0.5-1 liter/minute, flow rate adjustable up to 10 levels.
Display method	3.5-inch high-definition touchscreen color display, IPS full-viewing angle
Display content	Real-time concentration, unit, gas name, alarm status , time, storage status , communication status , battery level, charging status, etc.
Detection accuracy	Typical accuracy: ≤ ± 2 % FS ( higher accuracy sensor optional )	Uncertainty	≤± 2 %
linearity	≤± 2 %	Repeatability	≤± 2 %
Response time	T90≤20 seconds ( general )	Recovery time	≤ 3 0 seconds ( general )
working power supply	DC 7.4 V
Battery capacity	7.4V, 3450mAh rechargeable polymer lithium battery , with a battery life of more than 24 hours (pump-suction type) .
Alarm volume	Greater than 95dB at 30 cm; Greater than 90dB at 1 meter
Usage Environment	Temperature : -20 ℃ to + 55 ℃ , customizable to -40 ℃ to +70℃ ; Relative Humidity: 10-95 % RH
Communication interface	Standard Type-C fast charging and communication (RS485 output can be customized )
Data storage	Standard capacity exceeds 100,000 records; optional high-capacity storage card supports local viewing, deletion, or data export, with arbitrarily configurable storage intervals.
Interface language	Chinese , English, Russian, and other languages can be customized.
Explosion-proof rating	ExiaⅡCT4Ga
Protection level	IP6 8
Shell material	PC+TPE, high-strength, corrosion-resistant, and fire-retardant polycarbonate combined with an integrated TPE protective sleeve, drop-proof, wear-resistant, and anti-static, effectively resisting drops of ≥3 meters (subject to testing).
Main body size	Maximum dimensions: 188 × 85 × 55 mm (L×W×H) excluding back clip thickness.	weight	Approximately 530g
Standard Annex	Three-way fittings, filter, 0.2-meter swan neck sampling probe, instruction manual, certificate of conformity, USB charger (including data cable), instrument safety case.
