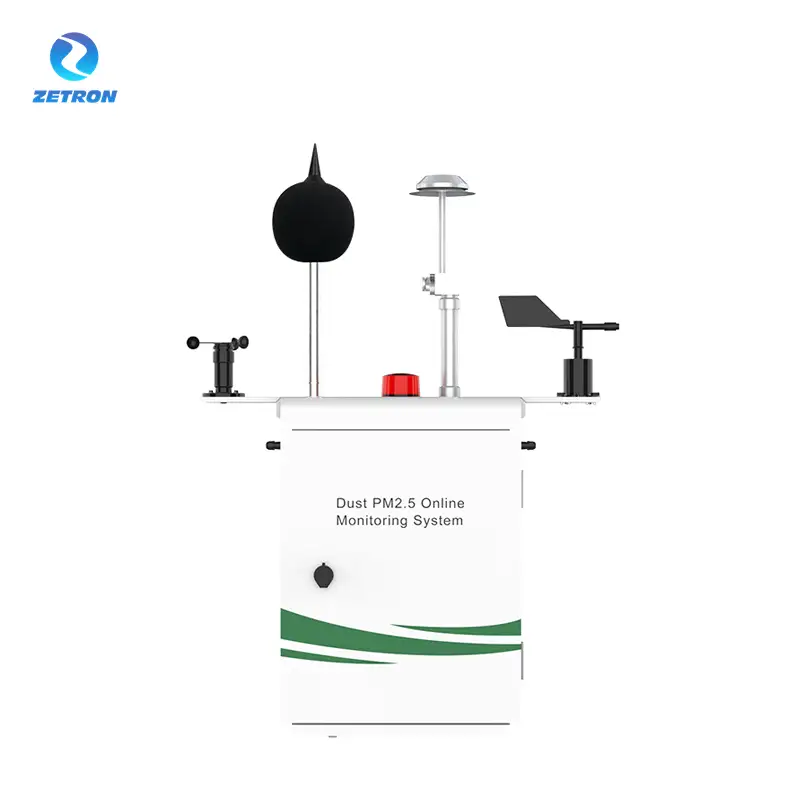

MS800A Air Quality Monitoring Station

MS800A Air Quality Monitoring Station, data upload cloud platform, real-time early warning, modular design, free parameter selection, online monitoring PM10, pm2.5, Co, SO2, NO2, O3, TVOC, TSP, etc. We provide gas detector OEM/ODM serves.

Inquiry Download manual

Details


MS800A Air Quality Pollution Monitor System
MS800A Air Quality Monitoring Station, data upload cloud platform, real-time early warning, modular design, free parameter selection, online monitoring PM10, pm2.5, Co, SO2, NO2, O3, TVOC, TSP, etc. MS800A is our new air quality online multi-parameter monitoring system, the main monitoring gas type include: PM2.5, PM10, CO, SO2, NO2, O3, TVOC, temperature and humidity, wind speed and direction , noise and atmospheric pressure. Outdoor LED screen, real-time display of monitoring data ,with solar power to provide real-time uninterrupted monitoring data. It could be used in a variety of environments, industrial production environment monitoring, tunnel traffic environment monitoring, and urban environmental monitoring. The atmospheric environmental data monitoring and analysis system can improve the processing and management of air pollution monitoring data, and provide decision-making basis for environmental planning and environmental assessment.



Parameter Range Unit Precision Resolution Configuration Life-time
PM2.5 0-1000 ug/m3 5% 1 ug/m3 Standard 2
PM10 0-2000 ug/m3 5% 1 ug/m3 Standard 2
CO 0-50 ppm 1% 0.02ppm Standard 2
SO2 0-500 ppb 1% 3ppb Standard 2
NO2 0-500 ppb 1% 3ppb Standard 2
O3 0-500 ppb 1% 3ppb Standard 2
Temperature -80 ℃ 2% 0.1℃ Standard 2
Humidity 0-100 %RH 0.30% 1% Standard 2
VOC 0-20 ppm 1% 20ppb Optional 2


Tag:  Air quality monitoring station 、Online monitoring system、Weather station、Outdoor air quality station system、Emission monitoring、Air pollutants online system、OEM/ODM air quality monitoring station



Parameter

Data Efficient Transmission Rate
≥95%
Remote Control
Support for remote setting
Interface
RS485/RS232 port, Network port
Transmission Network
Automatically and real-time upload data, optional 4G/ GPRS/WIFI
Box Material
Q235 spray, Stainless box optional
Scaffold Material
Q235
Scaffold Height
Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m)
Lightning Arrester
Length 1m, Q235 Galvanized material
Working Environment
Temperature: -30~70℃ Humidity: 10%RH~90%RH Pressure: 65~108Kpa
Protection Grade
IP65
Power Supply
AC220V/50Hz/Solar power (optional)

Application

  • Traffic environmental pollution control;
  • Emission monitoring of particulate matter and pollution sources;
  • Environmental monitoring of residential areas, schools, and hospitals;
  • Chemical plant, port, sewage treatment plant, power plant, landfill, incineration station,  storage facilities, underground facilities, etc.
