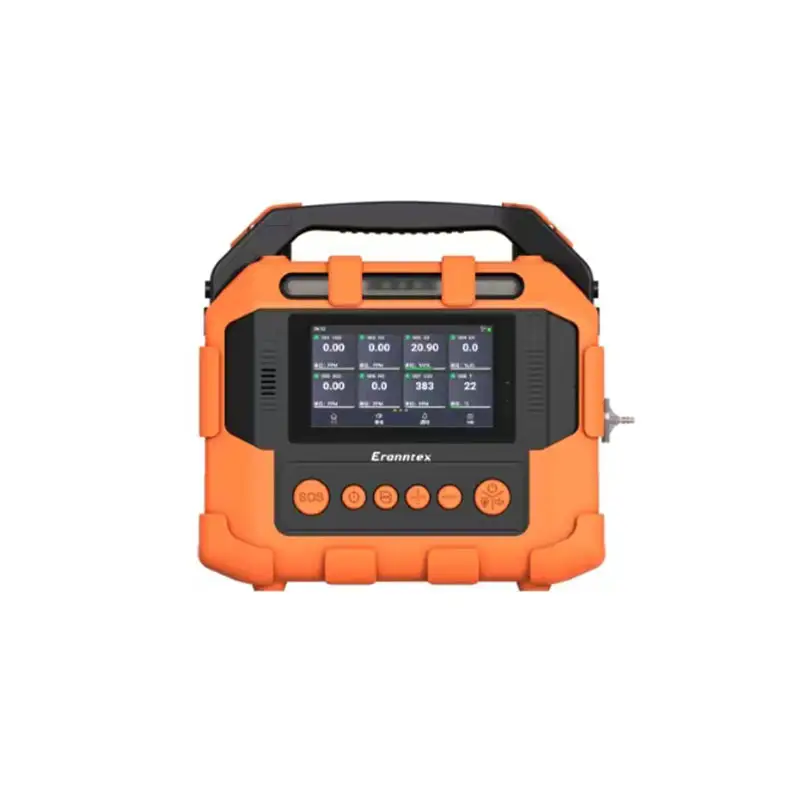

Ptm600-S Portable Air Pollution Monitor for Industrial and Urban Monitoring

PTM600S-AQI portable intelligent air quality monitor is used to accurately detect and analyze various gas concentrations and temperature and humidity, particulate matter, air pressure, wind speed, wind direction, radiation, etc. The monitor with 5-inch color screen for real-time display which is touchable. PTM600S-AQI is widely used in firefighting, emergency rescue, confined space, petroleum, chemical industry, metallurgy, refining, gas, warehousing, medicine, environmental protection, flue gas analysis, air treatment and other occasions. The instrument is powerful and supports various additional function customization. It can be regionally networked, interconnected, remote wireless transmission, MESH transmission (remote transmission of confined space data and video), data upload to the cloud platform, with phone APP for remote alarm reminding.

Inquiry

Write a Review

ISO,CE,FCC, ROHS, ATEX,CNEX,SIL3 Approved
Up to 30 gas pollutants with ppb accurancy
Simultaneously measures metrological parameters such as temperature and humidity, particulate matter (PM0.1, PM2.5, PM10 and TSP), air pressure, wind speed, wind direction, noise, rain, radiation, etc.
With smart separate module plugin design, support any gas changing and replace.
Unit switching, optional units: umol/mol, ppm, mg/m3, ppb, ug/m3, %Vol, %LEL.
Built-in pump, support 10 levels of flow adjustable.
5-inch touchable color screen
Android operating system, support remote maintenance and OTA remote wireless upgrade.
16G storage capacity, larger capacity optional, support multiple storage methods.
Multi type communication interface: TYPE-C, WIFI, Bluetooth
Optional wireless transmission options: LORA, MESH, 4G, NB-IOT, etc.
Standard functions: GPS/Beidou precise positioning, LED lighting, SOS one-key call function, human fall-down alarm, one-key positioning upload, display user information, real-time location, concentration information, longitude and latitude and custom address information, trajectory query, etc. on the map.
Optional functions: one-key photo taking (greater than 800W pixels), video recording, local video viewing, etc.;
Data statistical analysis function;
Factory parameters and stored data recovery function
Sound, light and vibration alarms (95 dB at 30 cm)
Alarm types: LOW, HIGH, TWA ,STEL
Auto misoperation identification function
Automatic zero point tracking
Multi-level calibration
IP68 Protection level

Model	PTM600-S
Measuring range	Depends on site environment and user requirements
Detection accuracy	Typical accuracy: ± 2% FS (optional 1% high-precision sensor)
Degree of linearity	≤±2%
Response time	T9020 seconds (GM)
Working power supply	DC3-5V
Battery capacity	30000 mAH rechargeable lithium battery, with over charge, over discharge, over voltage, short circuit, overheat protection function
Service environment	Temperature: -20℃ ~ + 50℃, can be customized-40℃ ~ + 70℃; Relative humidity: 10-95% RH
Communication interface	Standard Type-C Fast charging and communication
Data storage	Standard capacity above 10 million; support local view, delete or data export, storage time interval
Log records	Record the calibration log, maintenance log, fault record, sensor life expiration reminder, and the next concentration calibration time reminder function
Interface language	In Chinese and English, and other languages are available
Explosion-proof type	Intrinsically safe type ExiaⅡCT4Ga
levels of protection	IP66
Detection accuracy	Typical accuracy: ± 2% FS (optional 1% high-precision sensor)
Degree of linearity	≤±2%
Response time	T9020 seconds (GM)
Working power supply	DC3-5V
Battery capacity	30000 mAH rechargeable lithium battery, with over charge, over discharge, over voltage, short circuit, overheat protection function
Service environment	Temperature: -20℃ ~ + 50℃, can be customized-40℃ ~ + 70℃; Relative humidity: 10-95% RH
Communication interface	Standard Type-C Fast charging and communication
Data storage	Standard capacity above 10 million; support local view, delete or data export, storage time interval
Log records	Record the calibration log, maintenance log, fault record, sensor life expiration reminder, and the next concentration calibration time reminder function
Interface language	In Chinese and English, and other languages are available

Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis,air treatment and all other occasions that need to detect and analyze gas concentration.
