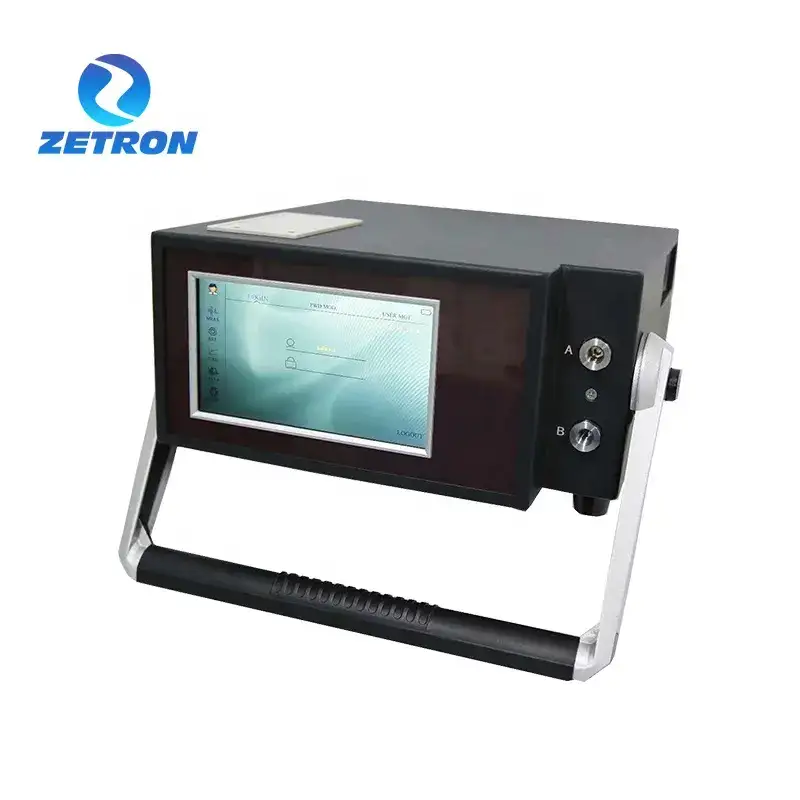

OPC-P2 Portable Oil Particle Counter Built-in Lithium Battery Suitable For Hydraulic oil And Lubricating oil

Inquiry

Write a Review

Product Description

OPC-P2 portable oil particle counter is an instrument specially developed for oil pollution level detection according to national and international standards such as GB/T 18854-2002 (ISO11171-1999). It is suitable for on-site and laboratory pollution detection of hydraulic oil, lubricating oil, shale oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil, phosphate ester oil and other oils. It can also be installed on various hydraulic transmission, oil filter, cleaning machine, test bench and other systems to realize online detection of system oil cleanliness. It can be widely used in aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.

Features

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 8 The light blocking (shading) test principle specified by the International Hydraulic Standards Committee

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 9 High-precision laser sensor, wide test range, stable performance, low noise, high resolution

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 10 High-precision bidirectional plunger pump sampling method, adjustable injection speed, high sampling volume accuracy

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 11 The pipeline is made of 316L and PTFE materials to meet the detection of various organic solvents and oils.

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 12 For laboratory or on-site measurement, with built-in pressure reducing device for online high-pressure measurement

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 13 Can be connected to an external pressure chamber to form positive/negative pressure, enabling detection and sample degassing of high viscosity samples

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 14 A variety of sampling containers such as standard sampling bottles and sampling cups can be used, or directly connected to the hydraulic system to meet the testing requirements of different industries

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 15 Built-in multiple calibration curves, compatible with all commonly used domestic and foreign standards for calibration

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 16 Built-in GJB-420A, GJB-420B, NAS1638, ISO4406, SAE4059E and ГOCT17216 and other commonly used standards. One test can give the data results under all built-in standards. It supports custom standard testing and can set the required standards according to customer needs.

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 17 1000 particle size channels can be set to facilitate particle size analysis

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 18 Built-in data analysis system, which can automatically determine the sample grade according to the standard, and has the function of automatic data processing and printing

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 19 Color touch screen operation, Chinese and English dual interface, with preset, input, modify and store functions, easy and fast operation

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 20 With RS232 interface, it can be connected to a computer or laboratory platform for data processing, and can also use USB for data storage

Oil Particle Counter for Lubricating Oil Contamination Monitoring OPC-P2 21 Built-in lithium battery, no external power supply required

图片2 (16)

图片3 (17)

Functional parameters

Light source	Semiconductor laser
Particle size range	0.8-600μm (depending on different sensors)
Sensitivity	0.1μm
Customized detection channels	8+8 channels, arbitrary setting of particle size
Sampling volume	0.2-1000ml, interval 0.1mL
Sampling accuracy	better than ± 1%
Sampling speed	5-80mL/min
Cleaning speed	5-80mL/min
Cleaning volume	can be set between 0~90mL
Counting accuracy	＜±5%
Resolution	≤ 10%
Repeatability	RSD＜2%
Limit overlap error	12000-40000 grains/mL
Offline detection viscosity	≤100cSt (viscosity is too large optional air pressure chamber)
Pressure range	low pressure 0-0.6Mpa, high pressure up to 42Mpa (optional pressure reducing valve)
On-line detection interval time	arbitrary settings
Testing sample temperature	0 ℃~ 80℃
Working temperature	-20℃~60
Storage temperature	-30℃~80
Screen size	7 inch
Power supply	AC100-240V, 50/60Hz
Battery capacity	5200mAh
Battery running time	6-8 hours
Overall Dimension	310×305×135mm
Instrument weight	7.5kg

Application Scenarios

Light source	Semiconductor laser
Particle size range	0.8-600μm (depending on different sensors)
Sensitivity	0.1μm
Customized detection channels	8~64 channels optional, arbitrary setting of particle size size
Sampling volume	0.2-1000ml, interval 0.1mL
Sampling accuracy	better than ± 1%
Sampling speed	5-80mL/min
Cleaning speed	5-80mL/min
Cleaning volume	can be set between 0~90mL
Counting accuracy	＜±5%
Resolution	≤ 10%
Repeatability	RSD＜2%
Limit overlap error	12000-40000 grains/mL
Offline detection viscosity	≤100cSt (viscosity is too large optional air pressure chamber)
Pressure range	low pressure 0-0.6Mpa, high pressure up to 42Mpa (optional pressure reducing valve)
On-line detection interval time	arbitrary settings
Testing sample temperature	0 ℃ ~ 80 ℃
Working temperature	-20℃~60
Storage temperature	-30℃~80
Screen size	7 inch
Power supply	AC100-240V, 50/60Hz
Battery capacity	5200mAh
Battery running time	6-8 hours
Overall Dimension	310×305×135mm
Instrument weight	7.5kg

The detector is widely used in petroleum, chemical industry,environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection, Archaeology and other industries and places that need safety monitoring for toxicity and harmfulness, explosion prevention.
