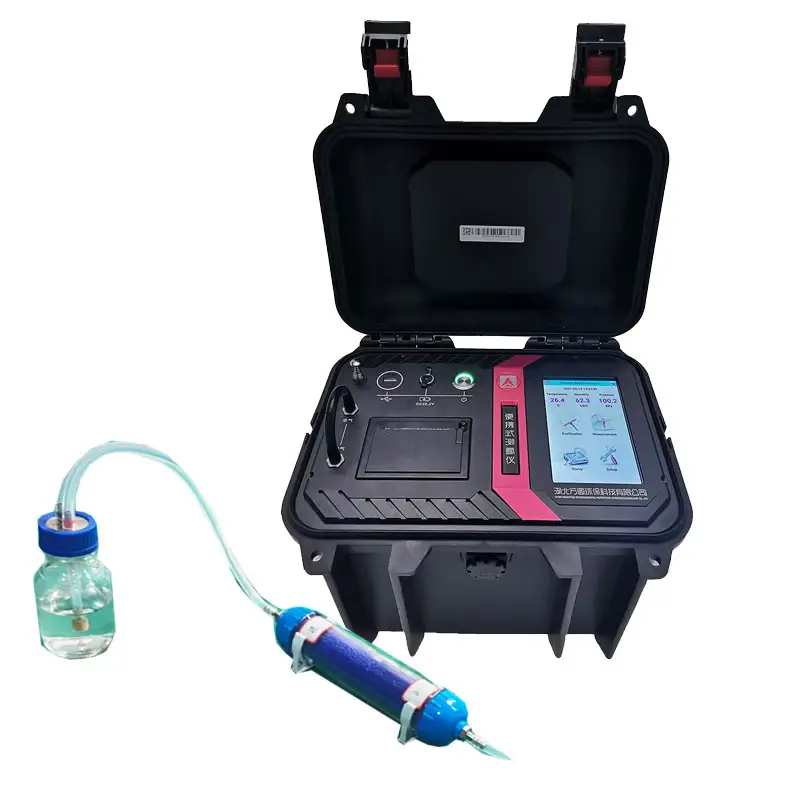

Zetron PTM600-RD Radon Gas Monitor for Detect Natural Radioactive Gases

PTM600-RD is based on the design of pumping electrostatic collection energy spectrum analysis method, and adopts a new generation of high sensitivity and high resolution passivation ion implantation planar silicon detector (PIPS) to quickly capture the changes in radon concentration in real time.

Inquiry

Write a Review

Radon Gas Detector PTM600-RD

PTM600-RD adopts mainstream industrial-grade MCU control analysis and industrial-grade display control platform, combined with advanced alpha energy spectrum analysis, temperature and humidity automatic compensation and other technologies to ensure the accuracy, stability and reliability of the measurement; the equipment is simple to operate and has rich functions. Stable and reliable operation.

Zetron PTM600-RD Radon Gas Monitor for Detect Natural Radioactive Gases 2

Feature:

1. Automatic measurement of temperature, humidity and atmospheric pressure.
2. The instrument can be upgraded remotely or offline, which is convenient for maintenance.
3. Built-in printer, which can print measurement results quickly and in real time.
4. Built-in storage space can store up to 200,000 measurement and energy spectrum data after expansion
5. Low power consumption, built-in lithium-ion battery, support 20h battery life, expandable.

Detection items	Rn-222 (Radon),Rn-220 (Thoron)
Detector	PIPS semiconductor detector
Measuring range	Radon in Air : 1~1000000Bq/m³
	Radon in Soil: 100~1000000Bq/m³
	Radon in Water : 0.002~1000.000Bq/L
	Exhalation rate: 0.001~60.000Bq/[m²• s]
Measurement method	active pumping electrostatic collection, 4096 alpha energy spectrum measurement
Temperature	-10 ~ 50℃, accuracy ±0.2℃
Humidity	relative humidity ≤90%, accuracy ±1.8%R
Lower detection limit	as low as 1Bq/m³
Communication interface	USB
Sensitivity	≥0.45CPM/[pCi/L] (Po218)
	≥0.90CPM/[pCi/L] (Po218+Po214)
Interface display	5-inch system screen, 800*480, high-definition display, support multi-touch, displays battery power
Printing	built-in printer
Battery life	20 hours of continuous operation
Host size	292mm×232mm×259mm
Weight	about 5kg for the host machine

Detection items	Rn-222 (Radon),Rn-220 (Thoron)
Detector	PIPS semiconductor detector
Measuring range	Radon in Air : 1~1000000Bq/m³
	Radon in Soil: 100~1000000Bq/m³
	Radon in Water : 0.002~1000.000Bq/L
	Exhalation rate: 0.001~60.000Bq/[m²• s]
Measurement method	active pumping electrostatic collection, 4096 alpha energy spectrum measurement
Temperature	-10 ~ 50℃, accuracy ±0.2℃
Humidity	relative humidity ≤90%, accuracy ±1.8%R
Lower detection limit	as low as 1Bq/m³
Communication interface	USB
Sensitivity	≥0.45CPM/[pCi/L] (Po218)
	≥0.90CPM/[pCi/L] (Po218+Po214)
Interface display	5-inch system screen, 800*480, high-definition display, support multi-touch, displays battery power
Printing	built-in printer
Battery life	20 hours of continuous operation
Host size	292mm×232mm×259mm
Weight	about 5kg for the host machine

Nuclear structure analysis, Nuclear power, Environmental testing, environmental monitoring, Inspection and quarantine, biomedical astrophysics, chemistry, geology, archaeology, metallurgy, material analysis.
