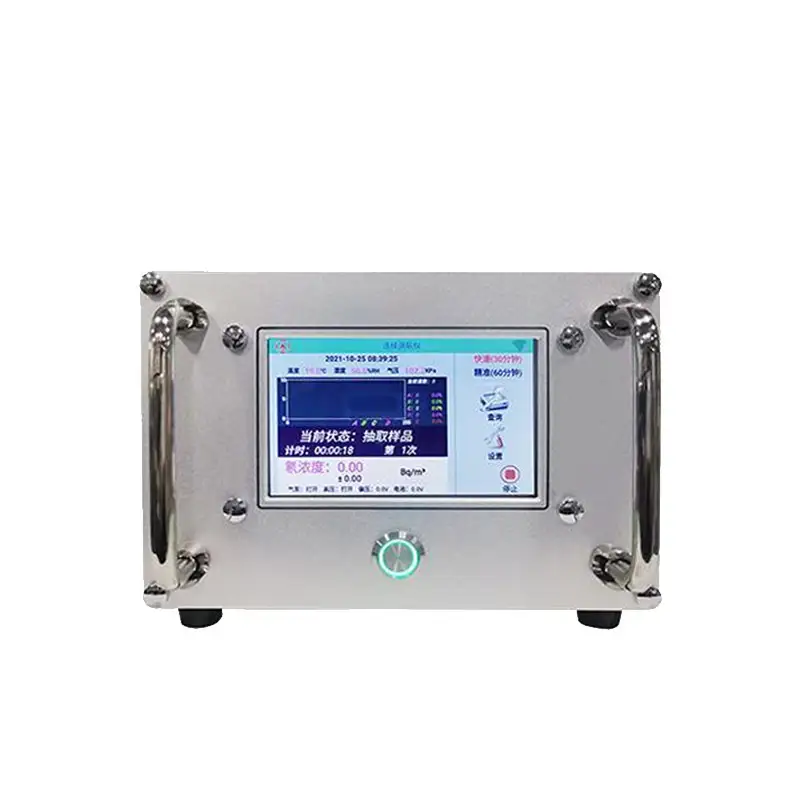

Zetron MIC600-RD Online Air/Soil/Water Radon Concentration Monitor

Monitor radon concentration in Air, Soil, Water.

Inquiry

Write a Review

Online Radon Gas Detector MIC600-RD

Feature:

1. Using pump suction electrostatic collection α energy spectrum analysis method.

2. The detector adopts the advanced technology of passivation ion implantation of planar silicon (PIPS), which has high sensitivity, high signal-to-noise ratio, low leakage current, and durable.
3. Good resolution of α energy spectrum, real-time display of measurement atlas, alpha energy spectrum supports up to 4096 channels.
4. Based on industrial-grade high-performance CORTEX architecture microcontroller design, using multi-task software design, high operating efficiency, stable and reliable.
5. Industrial grade 5.0-inch touch screen, resolution 800×480, brightness adjustable.
6. Short measurement period, fast recovery, and quick response to changes in radon concentration.
7. Constant humidity measurement and temperature and humidity compensation measurement for drying tube are optional.
8. Automatic measurement of temperature, humidity and atmospheric pressure.
9. The instrument can be upgraded remotely or offline, which is convenient for maintenance.
10. Built-in printer, which can print measurement results quickly and in real time.
11. Built-in storage space can store up to 200,000 measurement and energy spectrum data after expansion
12. Low power consumption, built-in lithium-ion battery, support 20h battery life, expandable.

Detection items	Rn-222 (Radon)
Detector	PIPS semiconductor detector
Measuring range	Radon in Air : 1~1000000Bq/m³
	Radon in Soil: 100~1000000Bq/m³
	Radon in Water : 0.002~1000.000Bq/L
Measurement method	alpha energy spectrum measurement
Temperature	-10 ~ 50℃, accuracy ±1℃
Humidity	relative humidity ≤90%, accuracy ±3%R
Measurement Combined Uncertainty	≤20% (when the radon concentration is not less than 200Bq/m³)
Measurement Time	15-60min, can be set
Storage	Flash (data in 1month)
Communication	RS485
Battery life	20 hours of continuous operation
Host size	280X220X145mm
Weight	about 10kg

						Nuclear structure analysis, Nuclear power, Environmental testing, environmental monitoring, Inspection and quarantine, biomedical astrophysics, chemistry, geology, archaeology, metallurgy, material analysis.
