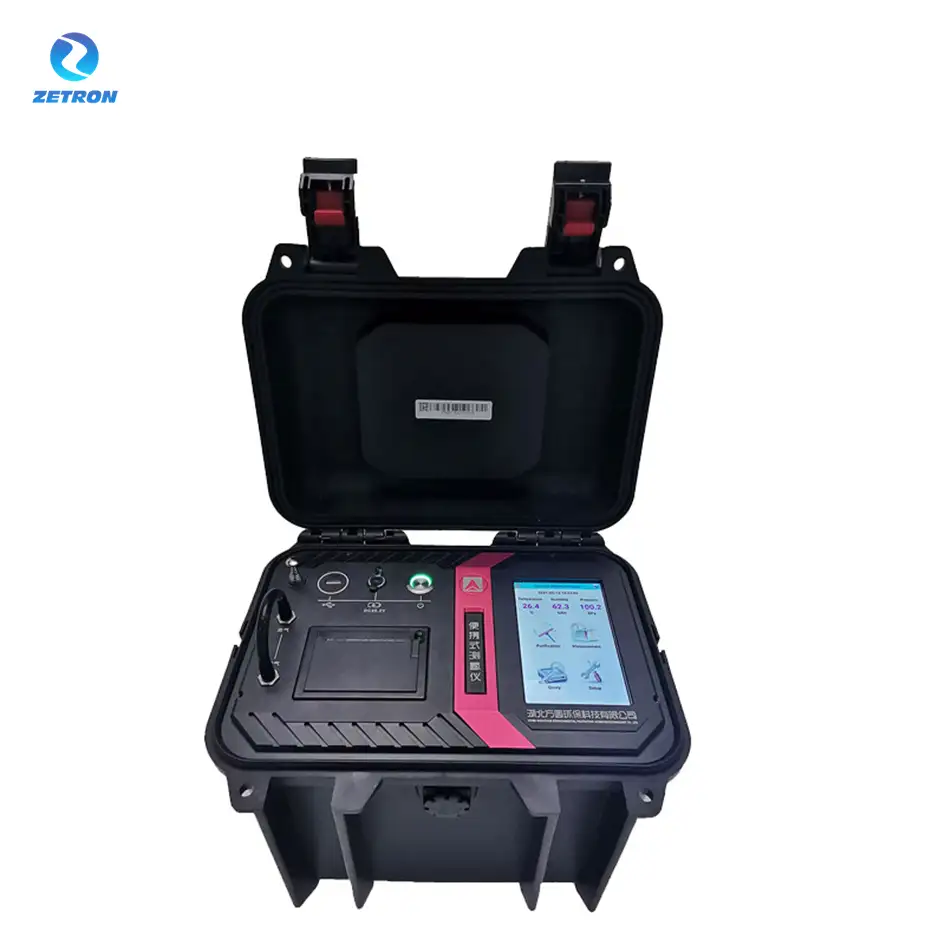

Zetron Radon Gas Analyzer PTM600-RD

PTM600-RD adopts mainstream industrial-grade MCU control analysis and industrial-grade display control platform, combined with advanced alpha energy spectrum analysis, temperature and humidity automatic compensation and other technologies to ensure the accuracy, stability and reliability of the measurement; the equipment is simple to operate and has rich functions. Stable and reliable operation.

Inquiry Download manual

Details

Radon Gas Detector PTM600-RD
PTM600-RD is based on the design of pumping electrostatic collection energy spectrum analysis method, and adopts a new generation of high sensitivity and high resolution passivation ion implantation planar silicon detector (PIPS) to quickly capture the changes in radon concentration in real time.

1. Using pump suction electrostatic collection α energy spectrum analysis method.

2. The detector adopts the advanced technology of passivation ion implantation of planar silicon (PIPS), which has high sensitivity, high signal-to-noise ratio, low leakage current, and durable.
3. Good resolution of α energy spectrum, real-time display of measurement atlas, alpha energy spectrum supports up to 4096 channels.
4. Based on industrial-grade high-performance CORTEX architecture microcontroller design, using multi-task software design, high operating efficiency, stable and reliable.
5. Industrial grade 5.0-inch touch screen, resolution 800×480, brightness adjustable.
6. Short measurement period, fast recovery, and quick response to changes in radon concentration.
7. Constant humidity measurement and temperature and humidity compensation measurement for drying tube are optional.
8.Automatic measurement of temperature, humidity and atmospheric pressure.


Q&A:

Where should we place a Radon gas detection sensor?

It is very hard to precisely pinpoint a location that is vulnerable to retaining excessive levels of Radon. In fact, Radon levels can vary considerably within the premises of a building. Radon can enter a house from the underlying soil. It is now accepted that Radon is most likely to be in the highest concentration in the lowest or low-lying areas of the house. Thus, you can place Radon detectors along your basement floor.


Parameter

Detection items
Rn-222 (Radon),Rn-220 (Thoron)
Detector
PIPS semiconductor detector
Measuring range
Radon in Air : 1~1000000Bq/m³
Radon in Soil: 100~1000000Bq/m³
Radon in Water : 0.002~1000.000Bq/L
Exhalation rate: 0.001~60.000Bq/[m²• s]
Measurement method
active pumping electrostatic collection, 4096 alpha energy spectrum measurement
Temperature
-10 ~ 50℃, accuracy ±0.2℃
Humidity
relative humidity ≤90%, accuracy ±1.8%R
Lower detection limit
as low as 1Bq/m³
Communication interface
USB
Sensitivity
≥0.45CPM/[pCi/L] (Po218),
≥0.90CPM/[pCi/L] (Po218+Po214)
Interface display
5-inch system screen, 800*480, high-definition display, support multi-touch, displays battery power
Printing
built-in printer
Battery life
20 hours of continuous operation
Host size
292mm×232mm×259mm
Weight
about 5kg for the host machine

Application

Nuclear structure analysis, Nuclear power, Environmental testing, environmental monitoring, Inspection and quarantine, biomedical astrophysics, chemistry, geology, archaeology, metallurgy, material analysis.
