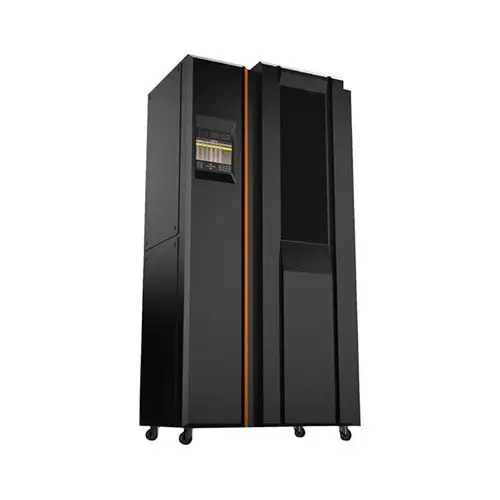

TH-3000 On-line pretreatment system

TH-3000 gas online monitoring pretreatment system is mainly used in the gas analysis industry. The main testing occasions: flue gas emission, desulfurization and denitrification, boiler tail gas, sewage pipeline gas detection and analysis, etc. We provide gas detector OEM/ODM serves.

Inquiry

Write a Review

TH-3000 On-line pretreatment system

The main principle is: the sampling unit collects the flue gas or the gas to be measured on site, the pretreatment unit filters the dust, reduces the temperature of the gas, electric heating and heat preservation, double-effect dehumidification, and keeps the temperature and humidity of the gas to be measured within a certain range , And then through the gas detection and analysis unit for detection and analysis, the measured gas concentration is displayed on the display screen in real time, and the data signal is transmitted to the terminal such as PLC or computer, and it can also be transmitted to the cloud server through wireless GPRS or network. Reading data from the server can realize global network monitoring and analysis.

Tag：Gas pretreatment system、Online monitoring system、VOC gas alarm system、 Air emission pollution、Gas online monitoring pretreatment、OEM/ODM gas pretreatment system

Detecting parameters	VOC, SO2, NOX, O2, CH4, CO, CO2, NH3, H2S and other gas types, also can detect wind speed, wind direction, rainfall, atmospheric pressure, pipe pressure, temperature and humidity and other meteorological parameters, selected according to customer requirements
Measuring range	depending on the actual needs of the detection site
Detection principle	PID light ion, other gas monitoring can choose electrochemical, infrared, laser, ultraviolet spectrum and other principles
Sampling temperature	- 40℃~800℃ (standard), optional: - 40℃~1300℃, - 40℃~2000℃
Sampling humidity	0~99%RH, can pre-treat wet gas
Host working environment	- 40℃~70℃, ≤95%RH
Working mode	online continuous work, pump sampling (positive pressure, negative pressure, vacuum environment are available)
Measuring range	depending on the actual needs of the inspection site
Detection principle	It depends on the gas composition, concentration and working conditions of th e detection site. The principles of electrochemistry, infrared (NDIR), laser (TDLAS) , differential ultraviolet spectroscopy (DOAS), etc. can be selected.
Sampling temperature	-40℃~800℃ (standard), optional: -40℃~1300℃, -40℃~2000℃
Sampling humidity	0~99%RH, wet gas can be pretreated
Host working environment	-40℃~70℃, ≤95%RH

The TH-3000 flue gas online monitoring pretreatment system is mainly used in the gas analysis industry. The main testing occasions: flue gas emission, desulfurization and denitrification, boiler tail gas, sewage pipeline gas detection and analysis, etc.
