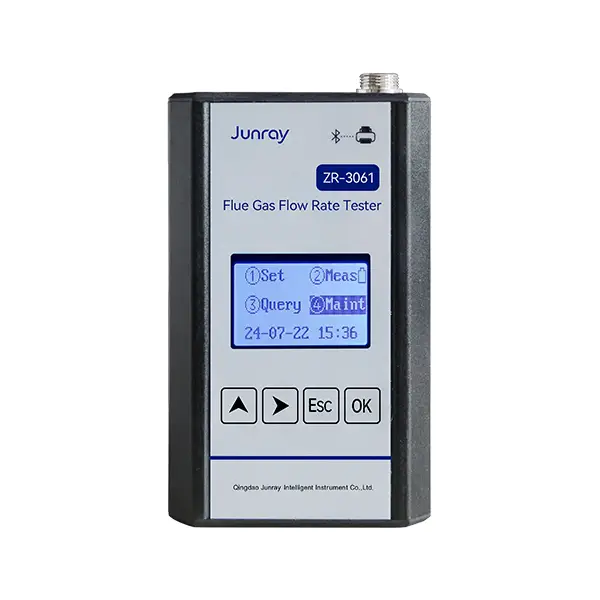

ZR-3061 Flue Gas Flow Rate Tester
ZR-3061 Flue gas flow rate tester is a handheld portable instrument used to measure the flue gas flow rate, flow, dynamic pressure, static pressure, temperature and other parameters of stationary pollution source.
2, power adapter
3, smoke temperature wire
4, silicone rubber tube (bule & orange)
5, Main aluminum box
6, product manual
7, ZR-D06B TMS probe & Accessory box
1. Lightweight
> LCD display, English menu operation.
> Light, portable, and easy to operate.
2. High Test Efficiency
> Imported high-precision micro-differential pressure sensor: high precision, and small temperature drift.
> Calculate the average flow rate, average pressure, flue gas flow and other parameters automatically.
> Automatic zero correction and software calibration functions to ensure the measurement accuracy.
3. Long battery life
> Built-in lithium-ion rechargeable battery: can be used continuously for more than 24 hours.
> Can save 200 groups of measurement data without lost after shutdown.
|
Parameters |
Range |
Resolution |
Maximum permitted error |
|
Flue gas dynamic pressure |
(0 ~ 2000) Pa |
1 Pa |
± 2% |
|
Flue gas static pressure |
(-30 ~ 30) kPa |
0.01 kPa |
± 4% |
|
Flue gas temperature |
(0 ~ 500) ºC (expandable) |
1 ºC |
±3 ºC |
|
Flue gas flow rate |
(1 ~ 45) m/s |
- |
± 5% |
|
Ambient atmospheric pressure |
(50 ~ 130) kPa |
||
|
Operating temperature |
(-20 ~ 50) ° C |
||
|
Charging time |
< 6h |
||
|
Battery operating time |
> 24h |
||
|
Power adapter |
Input AC (100~240) V, 50/60Hz; Output DC5V 2A |
||
|
Size |
(length 85 x width 55 x height 140) mm |
||
|
Weight |
About 0.5kg |
||
|
Power consumption |
≤ 0.5 W |
||
