Ta-3.5 Online Toc Analyzer for Pharmaceutical and Laboratory Applications
This product comply with the requirements of the Pharmacopoeia issued in 2020,and realizes instrument authority management, audit tracking, and electronic signature.And can be equipped with the professional database expert management system.
Product Description

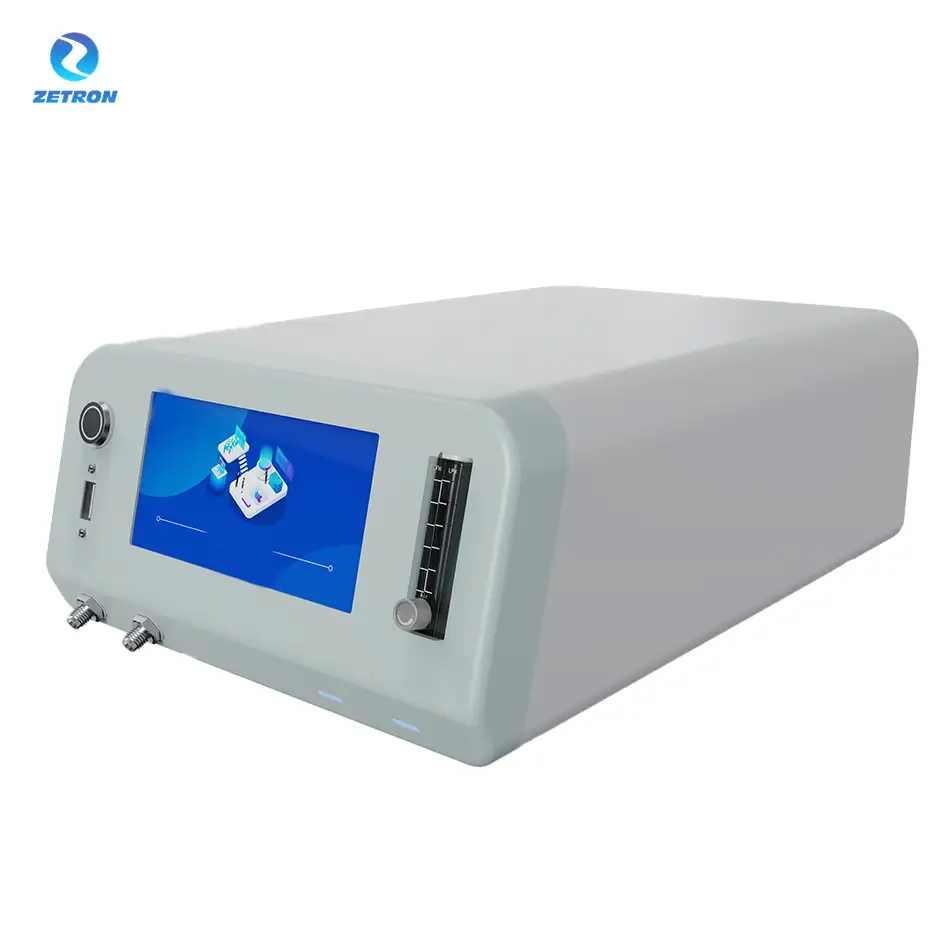

TA-3.5 Total Organic Carbon (TOC) Analyzer is an instrument specially used for online detection of total organic carbon in deionized water such as purified water, water for injection, and ultrapure water. The instrument can be controlled by the machine itself or by software installed on the computer, and can perform data analysis and processing. It has more complete functions, rich display content, convenient data query, and simple operation.
Features
Functional parameters
| Power supply | (100-240) VAC 50/60Hz |
| Power consumption | 100W |
| Tolerance | ±3% |
| Repeatability | RSD≤3% |
| Detection range | (0-1500.0) μg/L |
| Water sample | (0-5.1) μS/cm@25℃ |
| required conductivity range | |
| Sample temperature | (1-90)℃ |
| Ambient temperature | (10-60)℃ |
| Signal output interface | RS232/RS485/4-20mA |
| Enclosure | Stainless steel |
| Dimensions | 44*24*22cm; 5kg |
| Warranty time | One year |
Application
1. Detection of total organic carbon concentration in purified water, water for injection and high-purity water in the pharmaceutical industry;
2. Detection of TOC in ultrapure water in the semiconductor industry, power plants, scientific research units, pharmaceutical industry, chemical industry, etc.;
3. Online monitoring of water production systems in the pharmaceutical industry, ultrapure water preparation systems and chip process in the semiconductor industry, deionized water preparation processes in power plants, etc.
|
Power supply |
(100-240) VAC 50/60Hz |
|
Power consumption |
100W |
|
Tolerance |
±3% |
|
Repeatability |
RSD≤3% |
|
Detection range |
(0-1500.0) μg/L |
|
Water sample required conductivity range |
(0-5.1) μS/cm@25℃ |
|
Sample temperature |
(1-90)℃ |
|
Ambient temperature |
(10-60)℃ |
|
Signal output interface |
RS232/RS485/4-20mA |
|
Enclosure |
Stainless steel |
|
Dimensions |
44*24*22cm; 5kg |
|
Warranty time |
One year |
