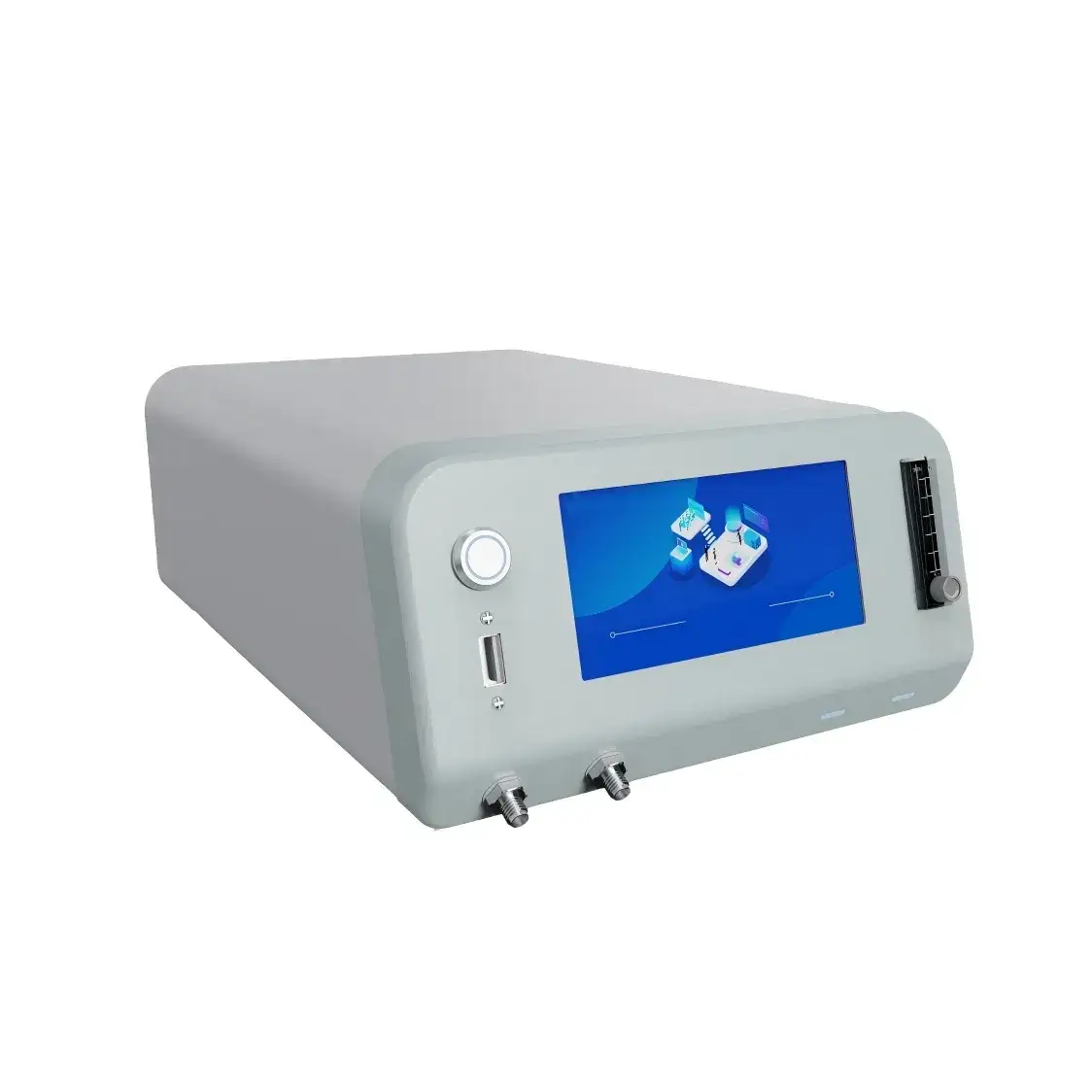

Ta-3.5 Online Total Organic Carbon Analyzer for Ultrapure Water Monitoring 1

Ta-3.5 Online Total Organic Carbon Analyzer for Ultrapure Water Monitoring 2

Ta-3.5 Online Total Organic Carbon Analyzer for Ultrapure Water Monitoring 3

Ta-3.5 Online Total Organic Carbon Analyzer for Ultrapure Water Monitoring 4

Ta-3.5 Online Total Organic Carbon Analyzer for Ultrapure Water Monitoring 5

Ta-3.5 Online Total Organic Carbon Analyzer for Ultrapure Water Monitoring 6

Ta-3.5 Online Total Organic Carbon Analyzer for Ultrapure Water Monitoring

TA-3.5 Total Organic Carbon (TOC) Analyzer is an instrument specially used for online detection of total organic carbon in deionized water such as purified water, water for injection, and ultrapure water. The instrument can be controlled by the machine itself or by software installed on the computer, and can perform data analysis and processing. It has more complete functions, rich display content, convenient data query, and simple operation.

Inquiry

Write a Review

TA-3.5 Online Total Organic Carbon Analyzer for Ultrapure Water Monitoring

The instrument is waterproof and dustproof;
Computer port operation, one port can control multiple detection units (optional);
It has functions such as electronic signature and audit tracking;
The UV lamp window is easy to observe and maintain;
The disassembly-free design is convenient for observation and maintenance of working conditions;
The storage data cycle can be set.
With IQ/OQ/PQ files

Power supply	(100-240) VAC 50/60Hz
Power consumption	100W
Tolerance	±3%
Repeatability	RSD≤3%
Detection range	(0-1500.0) μg/L
Water sample required conductivity range	(0-5.1) μS/cm@25ºC
Sample temperature	(1-90)ºC
Ambient temperature	(10-60)ºC
Signal output interface	RS232/RS485/4-20mA
Enclosure	Stainless steel
Dimensions	442422cm; 5kg
Warranty time	One year

Determination of total organic carbon (TOC) in surface water, groundwater, domestic sewage, industrial wastewater, applied to environmental monitoring, urban water supply and drainage, disease control, chemical power and other industries.
