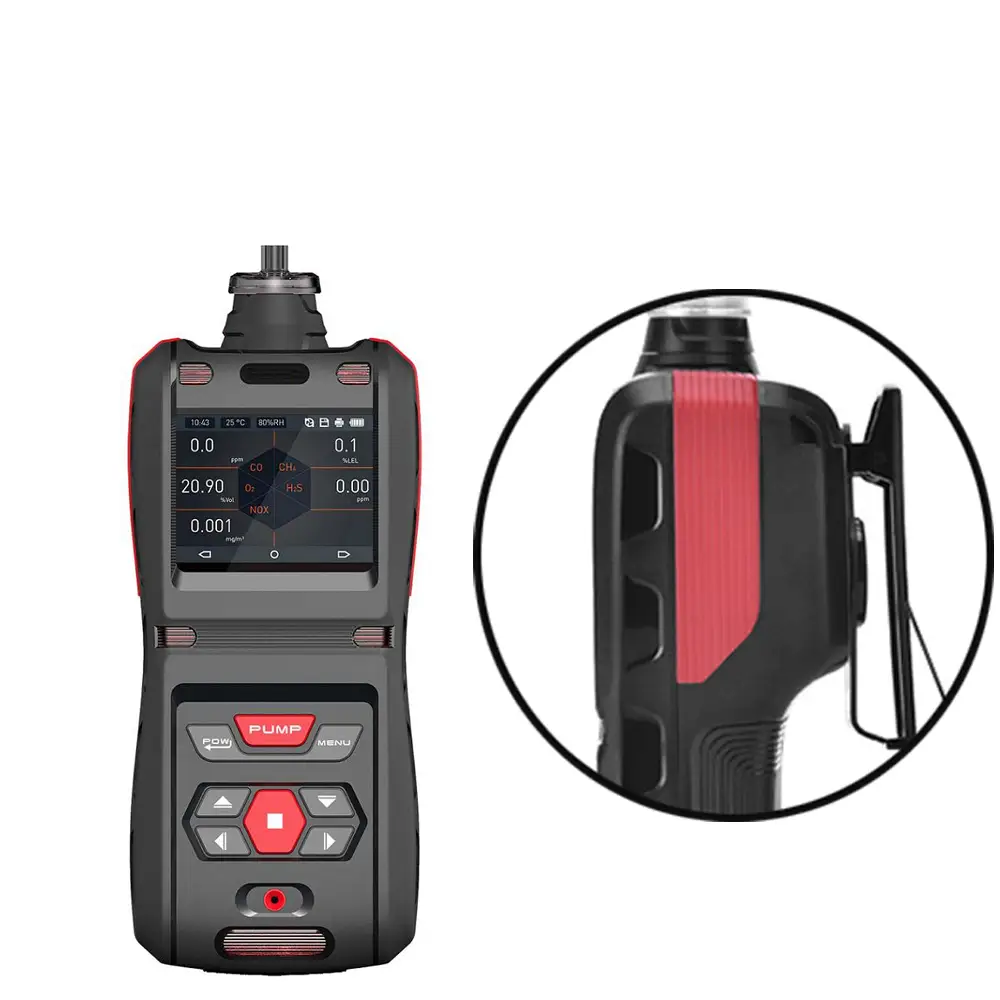

Zetron MS500-R High Precision R134a Refrigerant Detector
MS500-R gas detector is used for portable and rapid detection of toxic and hazardous gas concentration, temperature and humidity measurement and alarm.
Portable R134a Refrigerant Detector
Portable gas detector 1-5 gases in any combination and temperature and humidity measurement, can be customized according to the application scenario.
Used for rapid detection of a variety of gas concentrations, temperature and humidity measurement and exceed the standard alarm occasions, using a 2.5-inch high-definition color screen real-time display concentration, the use of the current industry's famous brands of gas sensors advanced circuit design, mature kernel algorithm processing, a number of software works patent and appearance patent
|
Working environment
|
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
|
||||
|
Power supply
|
3.6VDC, 5500mA high capacity rechargeable polymer battery
|
||||
|
Detection mode
|
Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml / min,
three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass |
||||
|
Alarm mode
|
It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, Turning off the alarm.
|
||||
|
Data storage
|
Standard configuration is the data storage capacity for 100, 000 entries
|
||||
|
Protection level
|
IP66
|
||||
|
Explosion-proof mark
|
Exia II CT6
|
||||
|
Exterior dimensions
|
180×78×33mm (L×W×H)
|
||||
|
Weight
|
350g
|
||||
