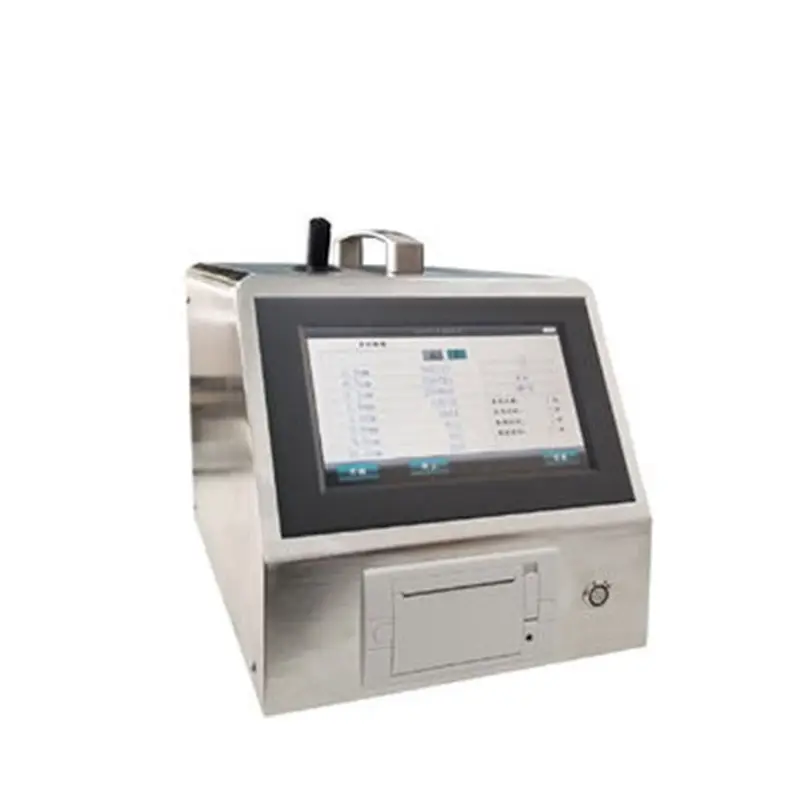

B550 Laser Airborne Particle Counter

The B550 high-flow-rate Airborne particle counter is a new type of dust particle counter used to measure the size and number of dust particles per unit volume of air in clean environments.

Inquiry

Write a Review

Product Description

The B550 high-flow-rate Airborne particle counter is a new type of dust particle counter used to measure the size and number of dust particles per unit volume of air in clean environments. It can complete a rapid and accurate sampling of one cubic meter in just 20 minutes, quickly verifying the cleanliness level of cleanrooms and printing out relevant test results. It fully complies with ISO 14644 and the 2010 GMP standards. The product features a user-friendly interface with a high-resolution, large-size color touchscreen, making it easy and simple to operate. This instrument can simultaneously monitor the number and changes of particles in eight particle size channels, storing up to one million data points . It is widely used in particulate matter testing in cleanrooms, airborne particle research, indoor air quality assessment, and also for filter performance testing and cleanliness evaluation.

Features

B550 Laser Airborne Particle Counter 3 Flow rate: 50 liters/minute

B550 Laser Airborne Particle Counter 4 Simultaneously displays eight particle size channels

B550 Laser Airborne Particle Counter 5 Test results output: ISO14644 and GMP 2010.

B550 Laser Airborne Particle Counter 6 Large-capacity data storage of 1 million data entries

B550 Laser Airborne Particle Counter 7 7-inch high-resolution color touchscreen

B550 Laser Airborne Particle Counter 8 Alarms can be set for each purification level exceeding the standard.

B550 Laser Airborne Particle Counter 9 Standard rechargeable battery allows for continuous measurement for over 6 hours.

B550 Laser Airborne Particle Counter 10 Automatic flow control ensures more precise and stable flow.

B550 Laser Airborne Particle Counter 11 Printer: (thermal/dot matrix)

B550 Laser Airborne Particle Counter 12 Stainless steel casing

B550 Laser Airborne Particle Counter 13 Standard configuration includes three-tier user management and audit trail.

B550 Laser Airborne Particle Counter 14 The standard configuration includes a USB flash drive for data transfer; the exported data format is CSV.

B550 Laser Airborne Particle Counter 15 Standard configuration includes direct Wi-Fi connection for data export.

B550 Laser Airborne Particle Counter 16 Stored data with digital signatures, complete export of event logs

B550 Laser Airborne Particle Counter 17 The number of users is as high as 150

Functional parameters

Model	B330
Detection range	Level 100 to 300,000 (GMP A, B, C, D)
Eight channels	0. 3 , 0. 5 , 0.7, 1.0, 2.0 , 3.0, 5.0 , 10.0 ( μm)
Sampling period	Choose from 1 second to 9 minutes and 59 seconds.
Self-cleaning time	≤10min
Work environment	Temperature 10–35℃, relative humidity ≤75%
vacuum source	Built-in air pump, flow control
Printing function	Built-in printer can print counting results
Light source and lifespan	of semiconductor lasers over 30,000 hours can be converted into m³ and real values .
External dimensions (W×L×H)	*220285260 (mm)*
Power consumption	145W
weight	9 kg
power supply	220V ± 10%, 50Hz ± 2Hz / Built-in lithium battery (optional)
The attachments include	Aluminum alloy case, operation manual, factory calibration report, zero-count filter, power cord, sampling rack, printing paper, fuse.
Detection range	Level 100 to 300,000 (GMP A, B, C, D)

Model	B1030	B550	B330
Size Range	0.3 - 10.0µm
Channel Sizes	8-Channel: 0.3, 0.5, 0.7, 1.0, 2.0, 3.0, 5.0, 10.0 µm
Flow Rate	100L/min	50L/min	28.3L/min
Concentration Limits	35,000 particles/L
Light Source	Laser diode (30,000 hours mean time between failure)
Dimensions(mm)	223348250	220285260	220285260
Weight(Kg)	7.1	9	8.5
Sample Period	1 Sec~5999 Sec(5L-5000L)
Calibration Count Modes	Meets ISO14644 calibration ,GMP-2010
Date Storage	2000 samples
Communication Modes	WIFI, RS-485,Ethernet, USB,Software
Environmental Sensors	Temperature, Relative Humidity, Air Velocity, Differential Pressure,
(Optional)	Battery or others
Touch Screen Display	9.1 inch (23 cm) color TFT touch screen display
Reports	Pass/fail report wizard for ISO-14644 and FS-209E report formats
Alarms	Integrated alarm buzzer. Alarms on counts, low battery (optional)
Enclosure	Stainless Steel
Power	220V±10%,50Hz±2Hz	220V±10%,50Hz±2Hz
Battery	built-in lithium battery	Optional Li-Ion, removable & rechargeable (typical recharge time 5 hours)
Languages	English/Chinese/Customize

Model	B1030	B550	B330
Size Range	0.3 - 10.0µm
Channel Sizes	8-Channel: 0.3, 0.5, 0.7, 1.0, 2.0, 3.0, 5.0, 10.0 µm
Flow Rate	100L/min	50L/min	28.3L/min
Concentration Limits	35,000 particles/L
Light Source	Laser diode (30,000 hours mean time between failure)
Dimensions(mm)	223348250	220285260	220285260
Weight(Kg)	7.1	9	8.5
Sample Period	1 Sec~5999 Sec(5L-5000L)
Calibration Count Modes	Meets ISO14644 calibration ,GMP-2010
Date Storage	2000 samples
Communication Modes	WIFI, RS-485,Ethernet, USB,Software
Environmental Sensors	Temperature, Relative Humidity, Air Velocity, Differential Pressure,
(Optional)	Battery or others
Touch Screen Display	9.1 inch (23 cm) color TFT touch screen display
Reports	Pass/fail report wizard for ISO-14644 and FS-209E report formats
Alarms	Integrated alarm buzzer. Alarms on counts, low battery (optional)
Enclosure	Stainless Steel
Power	220V±10%,50Hz±2Hz	220V±10%,50Hz±2Hz
Battery	built-in lithium battery	Optional Li-Ion, removable & rechargeable (typical recharge time 5 hours)
Languages	English/Chinese/Customize

Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size and weight along with its sleek handle, you can utilize this unit with ease.

These units provide immediate results that allow you to proactively monitor your environment.
It's widely used in Automotive Manufacturing; Coating Processes; Paint Booth; Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing

Electronic Industry (semiconductor factory, precision machinery production and processing, etc);Food Hygiene Industry (dairy products, plastic meat food, seasoning food, agricultural products, etc); Filter Manufacturers, inspection filter quality and efficiency, etc; and other areas of precision processing, precision testing required Clean Room (area), and other testing needs.
