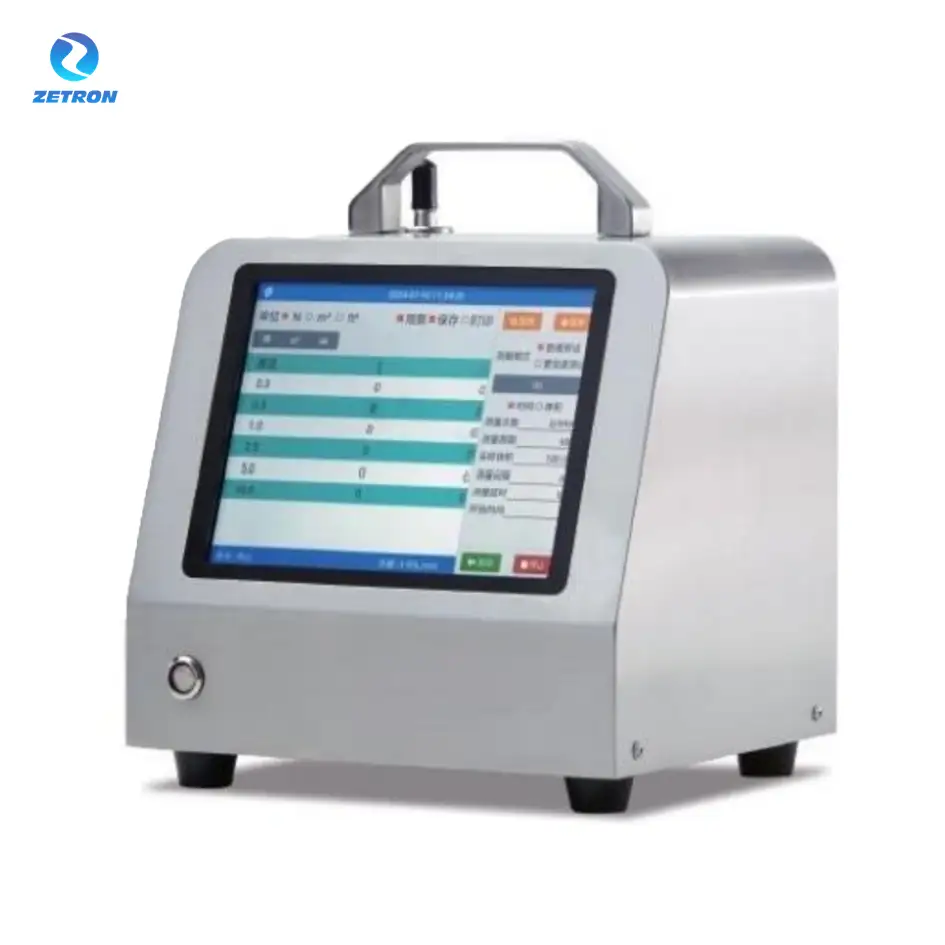

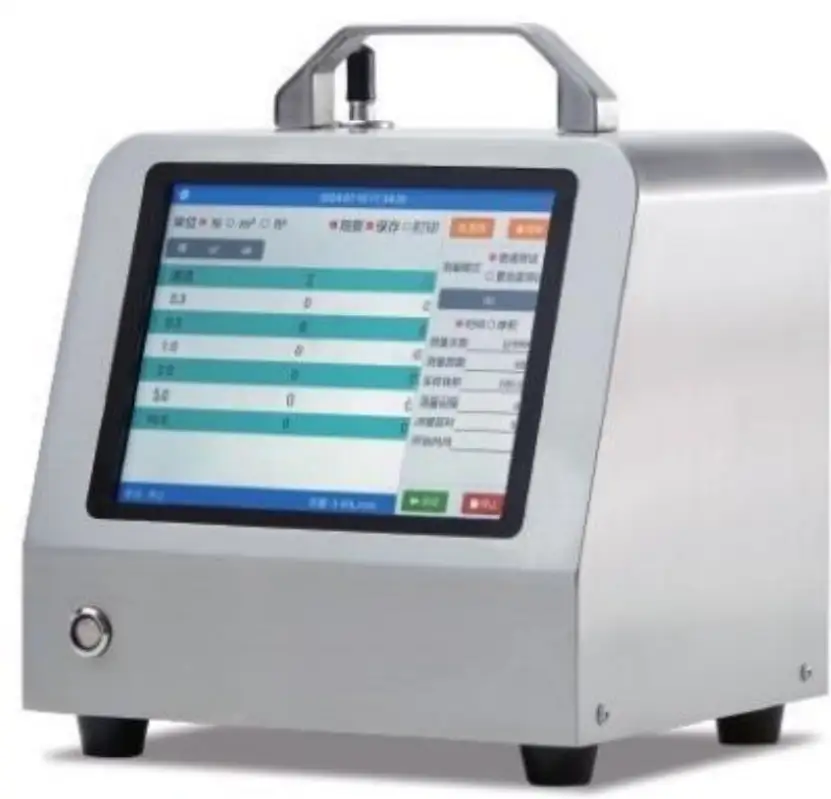

B110-PRO Handheld Laser Airborne Particle Counter for HVAC & Cleanrooms

High-precision B110-Pro particle counter with 316L stainless steel shell, 8-inch touch screen, and FDA21CFR compliance. Ideal for GMP cleanrooms & labs.

Inquiry

Write a Review

B110-Pro The high-flow series dust particle counter is designed with cutting-edge technology, meets the requirements of China's CGMP regulations, has a touch-screen display, is easy to operate, and can quickly reflect the instrument status. The 316 stainless steel shell can withstand various disinfectants. All collected data meets the requirements of PDA21CFR part 11 regulations.

Model	B110-Pro
Flow	28.3L/min
PM Ranges	0.1、0.15、0.2、0.25、0.5、1.0、3.0、5.0(μm)
Particle size resolution	<15%@0.5μm (Conforms to ISO21501-4)
Maximum Concentration	1000,000 Individual/cubic (35,000 Grain/L)
Clean-down Capability	≤10min
Air-out	The exhaust hole design will not disrupt the surrounding laminar flow; filter built into the sampler outlet (>99.97%@0.2μm)
Sampling Mode	Time sampling and volume sampling modes; sampling time and interval can be set
Room preset functions	Presettable room location numbers, points, sampling times, periods, intervals, delays, alarms, etc.; saved parameters do not require repeated settings
Sampling Period	1s-999999s (selectable)
Laser Classification	Laser diode (semiconductor laser source), lifespan over 35000 hours
Communication	MODBUS TCP
Data Storage	Accepts USB data download; data cannot be edited/modified; meets FDA21CFRPart11 standard; stores at least 1 million sets of sample data
Display	8-inch touch screen; displays particle change trend chart and bar chart
Language	Default Simplified Chinese; optional English (extendable to other languages)
Permissions	Multi-level permission control; divided into system administrators, operators, and process personnel
Standards	Optional Chinese standards such as the new version of GMP, ISO14644-1, etc.
Battery	Built-in rechargeable lithium-ion battery; continuous working time up to 8 hours
Power supply	110-240V, 50-60Hz
Power	≤50W
Printer	Built-in thermal printer
Housing Material	316L stainless steel; resistant to disinfectants
Operating Environment	Temperature: 5℃~35℃; Humidity: 0~98% (non-condensing); Atmospheric pressure: 86-106kPa
Weight	6.5kg
Dimensions	230mm (W) x 225mm (H) x 200mm (D) (excluding accessories such as air nozzles and handles)

316L stainless steel shell, resistant to commonly used disinfectants in clean rooms
8-inch touch screen, simple operation The name of a single room can be in Chinese or English.
Enter the area of the clean room, and it can automatically calculate the number of monitoring points required for the clean room.
It can store at least 1 mi ll ion samp l ing data.
Multi-level permission management, with audit trail function, FDA21CFRPart11 electronic record electronic signature function
USB output (PDF reports and data sources can be exported directly from USB flash drive)
