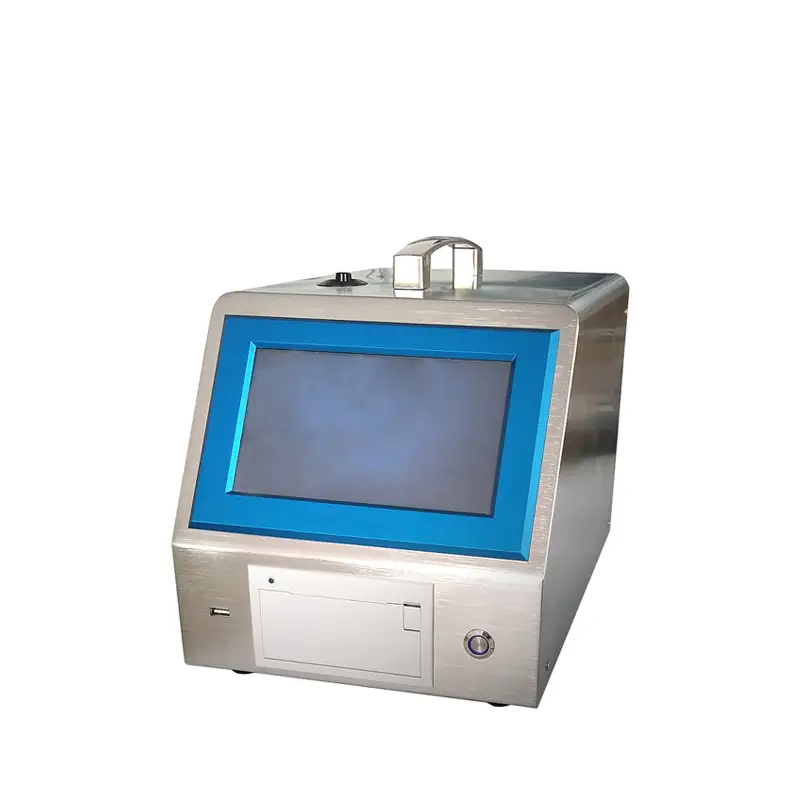

B1030 Laser Airborne Particle Counter

The B1030 High-Flow Dust Particle Counter is a new-generation instrument designed to measure the size and quantity of dust particles within a unit volume of air in clean environments.

Inquiry

Write a Review

Product Description

The B1030 High-Flow Dust Particle Counter is a new-generation instrument designed to measure the size and quantity of dust particles within a unit volume of air in clean environments. Capable of performing rapid and accurate sampling of one cubic meter of air in just 10 minutes, it allows for the quick verification of cleanroom cleanliness classifications and the printing of relevant test results. The device fully complies with the standards set forth in ISO 14644 and the 2010 edition of GMP. Featuring a highly user-friendly interface and a large, high-resolution color touch screen, the product offers convenient and intuitive operation. Furthermore, the instrument can simultaneously monitor particle counts and fluctuations across eight distinct particle size channels, with the capacity to store up to one million data records. It is widely utilized for particulate testing in clean manufacturing facilities, air particle research, and indoor air quality assessment, as well as for filter performance testing and cleanliness evaluation.

Features

B1030 Laser Airborne Particle Counter 3 Flow Rate: 100 L/min

B1030 Laser Airborne Particle Counter 4 Simultaneous display of eight particle size channels

B1030 Laser Airborne Particle Counter 5 Test Result Output: ISO 14644 and GMP (2010 Edition)

B1030 Laser Airborne Particle Counter 6 Large-capacity data storage: 1 million data records

B1030 Laser Airborne Particle Counter 7 7-inch high-resolution color touchscreen

B1030 Laser Airborne Particle Counter 8 Configurable alarms for exceeding limits across various cleanroom classifications

B1030 Laser Airborne Particle Counter 9 Standard rechargeable battery included, enabling over 4 hours of continuous measurement

B1030 Laser Airborne Particle Counter 10 Automatic flow control for enhanced accuracy and stability

B1030 Laser Airborne Particle Counter 11 Printer: (Thermal / Dot Matrix)

B1030 Laser Airborne Particle Counter 12 Stainless steel housing

B1030 Laser Airborne Particle Counter 13 Standard 3-tier user management and audit trail functionality

B1030 Laser Airborne Particle Counter 14 Standard USB drive data export (CSV format)

B1030 Laser Airborne Particle Counter 15 Standard Wi-Fi direct data export capability

B1030 Laser Airborne Particle Counter 16 Digitally signed stored data; comprehensive export of event logs

B1030 Laser Airborne Particle Counter 17 Supports up to 150 user accounts

Functional parameters

Model	B1030
Detection range	Level 100 to 300,000 (GMP A, B, C, D)
Eight channels	0.3, 0.5, 0.7, 1.0, 2.0, 3.0, 5.0, 10.0 ( μm)
Sampling period	Choose from 1 second to 9 minutes and 59 seconds.
Self-cleaning time	≤10min
Work environment	Temperature 10–35℃, relative humidity ≤75%
vacuum source	Built-in air pump, flow control
Printing function	Built-in printer can print counting results
Light source and lifespan	Semiconductor laser > 30000 h
Maximum allowed sampling concentration	The count result of 35,000 particles/L can be converted into m³ and real value.
External dimensions (W×L×H)	*223348250(mm)*
Power consumption	145W
Weight	7.1Kg
Power supply	Built-in lithium battery allows for continuous operation for 4 hours.

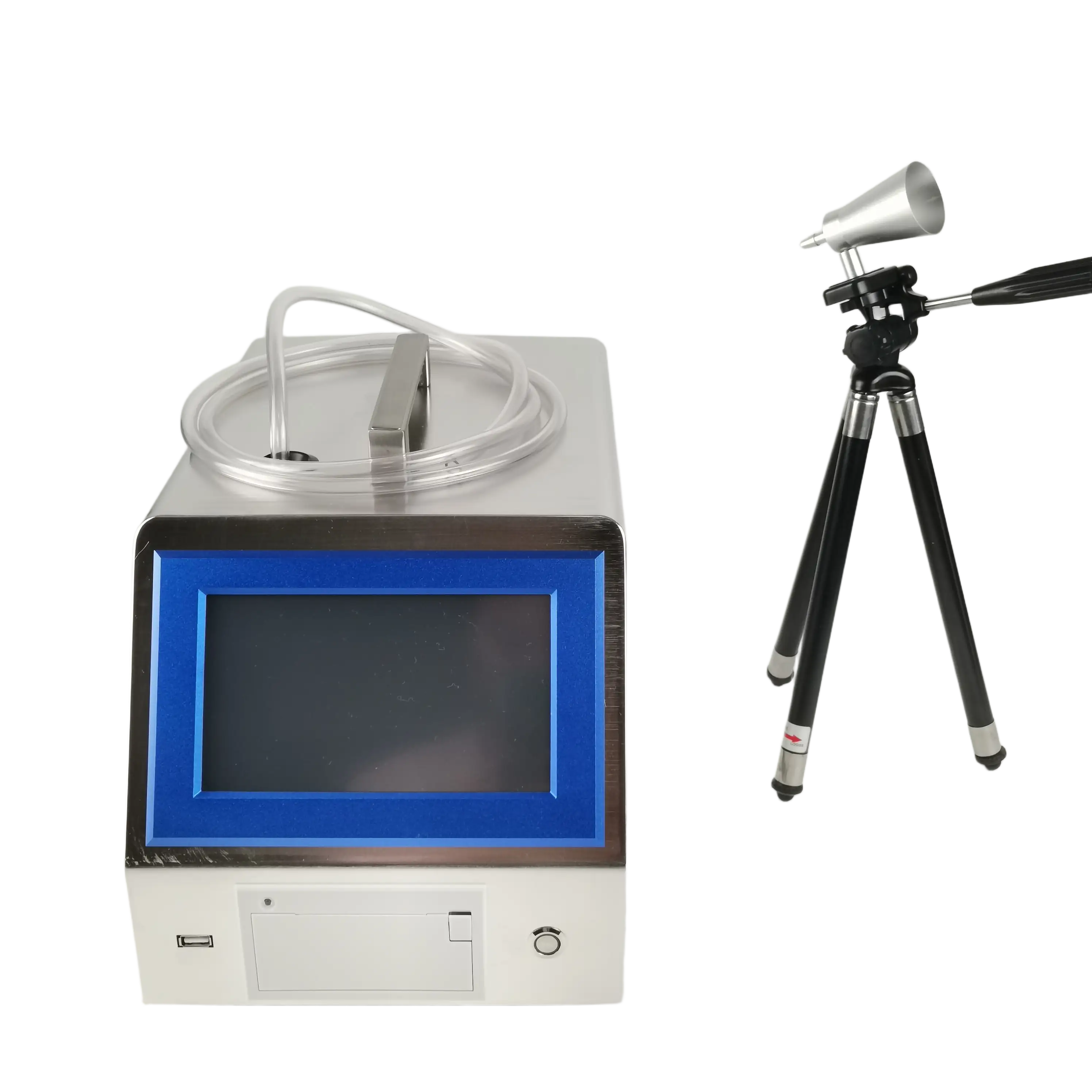

The attachments include	Aluminum alloy case, operation manual, factory calibration report, zero-count filter, charging power cord, sampling rack, printing paper

Model	B1030	B550	B330
Size Range	0.3 - 10.0µm
Channel Sizes	8-Channel: 0.3, 0.5, 0.7, 1.0, 2.0, 3.0, 5.0, 10.0 µm
Flow Rate	100L/min	50L/min	28.3L/min
Concentration Limits	35,000 particles/L
Light Source	Laser diode (30,000 hours mean time between failure)
Dimensions(mm)	223348250	220285260	220285260
Weight(Kg)	7.1	9	8.5
Sample Period	1 Sec~5999 Sec(5L-5000L)
Calibration Count Modes	Meets ISO14644 calibration ,GMP-2010
Date Storage	2000 samples
Communication Modes	WIFI, RS-485,Ethernet, USB,Software
Environmental Sensors	Temperature, Relative Humidity, Air Velocity, Differential Pressure,
(Optional)	Battery or others
Touch Screen Display	9.1 inch (23 cm) color TFT touch screen display
Reports	Pass/fail report wizard for ISO-14644 and FS-209E report formats
Alarms	Integrated alarm buzzer. Alarms on counts, low battery (optional)
Enclosure	Stainless Steel
Power	220V±10%,50Hz±2Hz	220V±10%,50Hz±2Hz
Battery	built-in lithium battery	Optional Li-Ion, removable & rechargeable (typical recharge time 5 hours)
Languages	English/Chinese/Customize

Model	B1030	B550	B330
Size Range	0.3 - 10.0µm
Channel Sizes	8-Channel: 0.3, 0.5, 0.7, 1.0, 2.0, 3.0, 5.0, 10.0 µm
Flow Rate	100L/min	50L/min	28.3L/min
Concentration Limits	35,000 particles/L
Light Source	Laser diode (30,000 hours mean time between failure)
Dimensions(mm)	223348250	220285260	220285260
Weight(Kg)	7.1	9	8.5
Sample Period	1 Sec~5999 Sec(5L-5000L)
Calibration Count Modes	Meets ISO14644 calibration ,GMP-2010
Date Storage	2000 samples
Communication Modes	WIFI, RS-485,Ethernet, USB,Software
Environmental Sensors	Temperature, Relative Humidity, Air Velocity, Differential Pressure,
(Optional)	Battery or others
Touch Screen Display	9.1 inch (23 cm) color TFT touch screen display
Reports	Pass/fail report wizard for ISO-14644 and FS-209E report formats
Alarms	Integrated alarm buzzer. Alarms on counts, low battery (optional)
Enclosure	Stainless Steel
Power	220V±10%,50Hz±2Hz	220V±10%,50Hz±2Hz
Battery	built-in lithium battery	Optional Li-Ion, removable & rechargeable (typical recharge time 5 hours)
Languages	English/Chinese/Customize

Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size and weight along with its sleek handle, you can utilize this unit with ease.
These units provide immediate results that allow you to proactively monitor your environment.
It's widely used in Automotive Manufacturing; Coating Processes; Paint Booth; Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing

Electronic Industry (semiconductor factory, precision machinery production and processing, etc);Food Hygiene Industry (dairy products, plastic meat food, seasoning food, agricultural products, etc); Filter Manufacturers, inspection filter quality and efficiency, etc; and other areas of precision processing, precision testing required Clean Room (area), and other testing needs.
