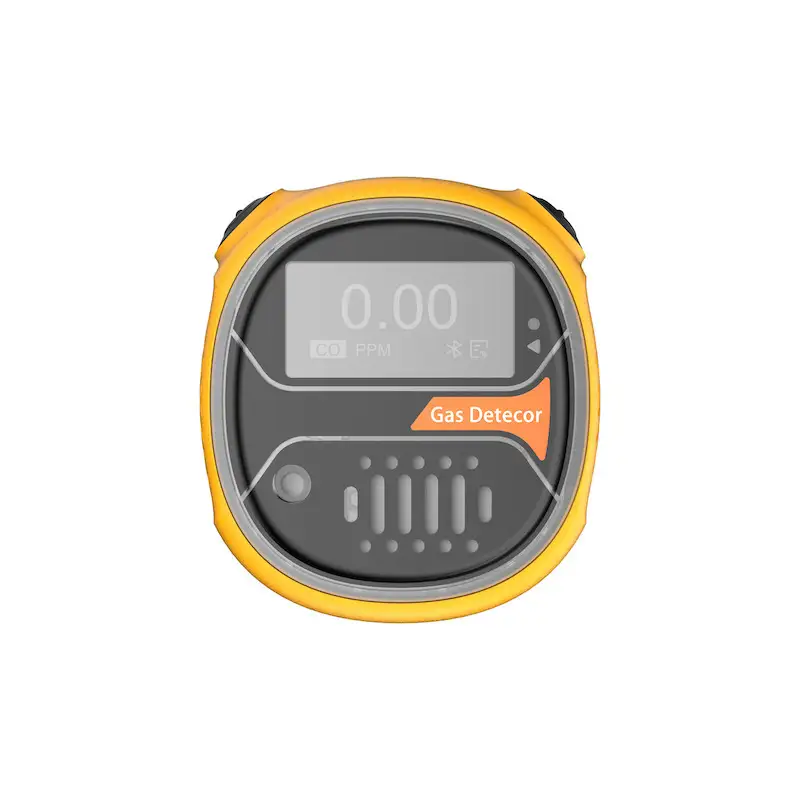

MS104K-S Portable Diffusion Gas Detector
MS104K-S is a compact, ultra-low power consumption, mobile gas detector for rapid detection of gas concentration. It can detect 1~4 kinds of gas at the same time at most. It widely apply to petroleum, chemical industry, pipe network inspection, medicine, environmental protection, storage and other occasions that need to detect gas concentration. We provide gas detector OEM/ODM serves.
MS104K-S Portable Diffusion Gas Detector
Overview
MS104K-S portable gas detector adopts a high-counting array display to display the concentration in real time and record storage. MS104K-S is a compact, ultra-low power consumption, mobile gas detector for rapid detection of gas concentration.
Feature
Protection levelI P65, up to IP68 needs special treatment, waterproof splash, dust proof, explosion-proof, shock proof, intrinsically safe circuit design, anti-static, anti-electromagnetic interference.
Small size, light weight, easy to carry.
Using 11800mA power battery, can work for along time, stand by time of 1year, rechargeable.
Up to 1~4 kinds of gases can be detected at the same time, free switching of units.
Optional units: umol/mol, PPM, mg/m3, Vol%, LEL%, PPHM, PPB.
Stand by time: one year, including flammable duration: 100hours, without flammable:400hours.
Support infrared, Blue tooth, LOLA, NB-IOT wireless interconnection function.
| Gases to be detected | Range | Minimum reading | Response time T90 |
| Combustible gas ( EX ) | 0-100%LEL | 0.1%LEL | ≤10 seconds |
| Methane ( CH4 ) | 0-100%LEL | 0.1%LEL | ≤10 seconds |
| Oxygen gas ( O2 ) | 0-30%Vol | 0.01%Vol | ≤10 seconds |
| Carbon monoxide ( CO ) | 0-100ppm | 0.1ppm | ≤25 seconds |
| Carbon dioxide ( CO2 ) | 0-500ppm | 1ppm | ≤20 seconds |
| Ozone ( O3 ) | 0-1ppm | 0.001ppm | ≤20 seconds |
| Hydrogen sulfide ( H2S ) | 0-10ppm | 0.001ppm | ≤30 seconds |
| Sulfur dioxide ( SO2 ) | 0-10ppm | 0.001ppm | ≤30 seconds |
| Nitric oxide ( NO ) | 0-10ppm | 0.001ppm | ≤30 seconds |
|
TotalVolatileOrganic Compound gases ( TVOC ) |
0-10ppm | 0.001ppm | ≤30 seconds |
| Volatile gases ( PID ) | 0-10ppm | 0.001ppm | ≤30 seconds |
Tag: Diffusion gas monitor, Multi gas monitor , Gas leak detector, Gas alarm detector, PID gas analyzer, Methane leak, detector, Ozone monitor, Mini 4in1 gas meter, OEM/ODM gas detector
|
Detection gas
|
Complex gas (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2, flammable gas EX) or any other single gas, except individual sensors with high power consumption |
| Detection range | CO (0 ~ 1000ppm), H2S (0 ~ 100ppm), O2 (0 ~ 30%VOL), Ex (0 ~ 100%LEL),Other range can be customized |
| Display mode | HD LCD dot matrix display, double button operation |
| Detection accuracy | ≤±3% (F.S) |
| Response time | T90≤30s |
| Data storage | Standard 20,000 pieces of data capacity, Support the local view, delete or data export, storage time interval arbitrary Settings |
| Communication interface | Infrared communication, Optional Bluetooth, LORA communication, etc |
| Explosion-proof mark | Exia II CT4 Ga |
| Protection grade | IP65, Dustproof, Waterproof splash |
| Dimensions | 77×68×35mm(L×W×H) |
| Weight | Less than 150g |
MS104K-S can apply to petroleum, chemical industry, pipe network inspection, medicine, environmental protection, storage and other occasions that need to detect gas concentration.
