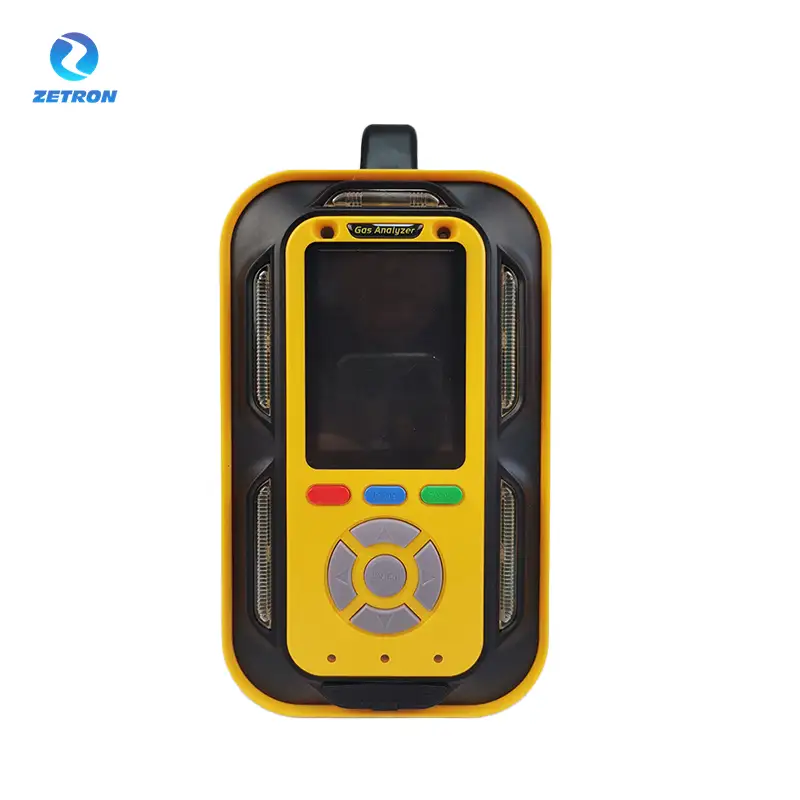

Zetron PTM600OZ Ozone Gas Analyser1

The PTM600OZ ozone gas analyser calculates the current ozone concentration by measuring the change in light signal intensity before and after ozone absorption of UV light. The equipment uses an advanced dual-light UV light source system with a lamp intelligent management system, which enables the UV lamp to reach the measurement state quickly after switching on. It is mainly used for continuous detection of ozone gas in various industrial environments, and can also be used to detect ozone gas in operating pipelines, vessels and other environments.

Inquiry

Write a Review

PTM600OZ Ozone Gas Analyser

PTM600 portable ozone gas analyser for mobile need to accurately detect and analyse ozone gas concentration, temperature and humidity measurement occasions, PTM600 six-in-one gas analyser using 3.5-inch high-definition colour screen real-time display of the concentration of the current industry's best brand of electrochemical or infrared, catalytic combustion, thermal conductivity, PID light ionisation principle of the gas sensors, the Swiss high-precision capacitive digital PTM600 advanced circuit design, mature kernel algorithm processing, obtained a number of software patents and appearance patents. PTM600 can detect and analyse the gas concentration in the pipeline or restricted space, the atmospheric environment can also detect the gas leakage, detection of more than 500 types of gases, but also detect and analyse a variety of background gases for the nitrogen or oxygen of the single gas in high concentration. Purity.

Model	PTM600OZ
Measuring range	0-200g/Nm3
Optional ranges	0-300g/Nm3, 0- 100g/Nm3, 0-50g/Nm3, 0- 1000ppm
Light source life	Approx. 30,000 - 50,000 hours
Sampling method	positive pressure sampling, negative pressure sampling (optional)
Display interface	4.3" touch screen operator interface
Content interface	Ozone concentration, temperature, pressure
Auxiliary functions	Temperature compensation, pressure compensation
Display units	g/Nm3, mg/NL, %WT optional
Display resolution	0.01g/Nm3
Gas flow	0.5L ± 0.2L/min
Input pressure	<0. 1 MPa
Concentration error	0.3% FS max
Linearity error	0.2% FS max
Zero point drift	<±0.3%.FS
Response time	0.03 s for signal, 0.3 s for display
Ambient temperature	-20 to 50。C
Piping connection	Quick screw (stainless steel)
Tandem sample aperture	Φ8 (8mm*6mm) (optional)
Bypass sampling aperture	Φ6 (6mm*4mm)
Communication method	RS-485
Output mode	4-20mA (active)
Relay signal	Relay signal for high alarm point, relay signal for low alarm point
Power supply	AC 110-220V
Dimensions	160mm (H) x 260mm (W) x 300mm (D);
Note	1mg/L = 1g/m3 = 467PPM.
Free warranty	24 months (mainframe sensor)

Ozone generator manufacturers, municipal water industry, industrial wastewater industry, fine chemical industry, food and drinking water industry, space disinfection industry, pool disinfection industry, flavor synthesis industry and other industries using ozone generator.
