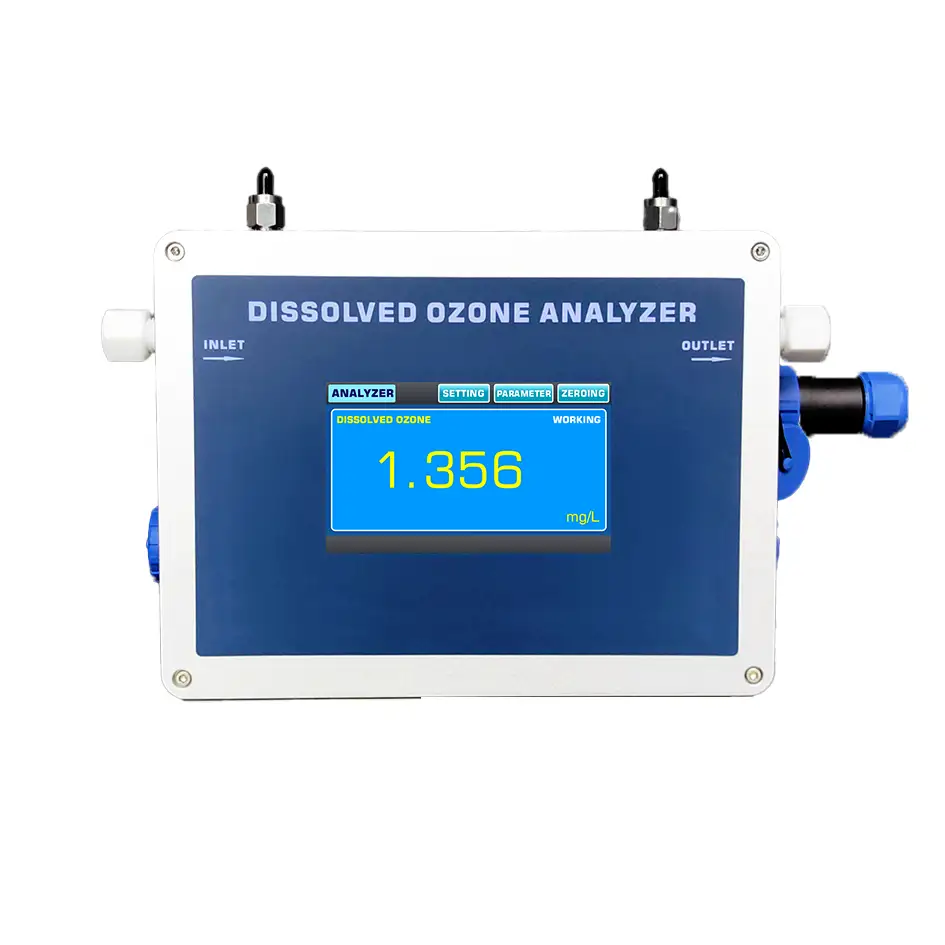

OZ-180W Dissolved Ozone Water Concentration Analyzer
Measurement Range: 0-20ppm; 0-50ppm; 0-100ppm; 0-120ppm; 0-180ppm; 0-200ppm.
Product Features: This UV dissolved ozone analyzer features an internal automatic light source adjustment function, which can adjust the LED light source brightness in real time based on the reference light data at the zero point to ensure zero-point stability. This UV optical ozone water concentration analyzer can be connected in parallel or in series to dissolved ozone water pipelines and is mainly used for the analysis and detection of dissolved ozone concentration in tap water, pure water, or water used in the semiconductor industry.
This dissolved ozone analyzer features an automatic UV light source adjustment system, which can adjust the brightness of the UV LED light source in real time based on the reference light data to maintain a constant zero-point reading, ensuring zero-point stability. This is a patented product of our company. This UV optical ozone water concentration analyzer can operate continuously 24 hours a day.
发送反馈
Product Description
The OZ-180W dissolved ozone water concentration analyzer directly measures the ozone content in ultrapure water or water with constant turbidity using ultraviolet photometry. A customizable version, the OZ-180W-HF, is available for 20% hydrofluoric acid ozone solutions. Materials in contact with the ozone water include PTFE, FFPM, PFA, and quartz or sapphire. The OZ-180W dissolved ozone water concentration analyzer features inlet and outlet ports and a touchscreen interface. It provides 4-20mA and RS-485 signal outputs for direct connection to a PLC.
The OZ-180W dissolved ozone water concentration analyzer features an automatic UV light source adjustment system. It adjusts the brightness of the UV LED light source in real time based on reference light data to maintain a constant zero point, ensuring zero point stability. This is a patented product of our company. This ozone analyzer can operate continuously 24 hours a day. The superior stability of this ozone concentration analyzer is achieved through the use of a true dual-beam optical system and an extremely long-life UV LED light source.
Features
Product structure composition
OZ-180W Dissolved Ozone Water Concentration Analyzer - Product Connection Diagram
OZ-180W Dissolved Ozone Water Concentration Analyzer, connection diagram for sampling with a negative pressure water pump.
Functional parameters
| Model | OZ-180W |
| Measuring range | 0-200ppm; |
| Measuring range | 0-50ppm ; 0-100ppm ; 0-200ppm ; 0-300ppm; |
| Light source life | about 30000-50000 hours; |
| Sampling method | positive pressure sampling, negative pressure sampling, note all sampling methods must be installed at the outlet with pumps, valves, flow meters; |
| Ozone contact material | quartz, PTFE, PFA ( Sapphire, PTFE, PFA, FFPM); |
| Display interface | high-definition 4.3-inch touch screen operation interface; |
| Display unit | mg/L, ppm optional; |
| Display resolution | 0.01ppm; |
| Sampling flow rate | 200-300mL/min; |
| Input pressure | <0.1MPa; |
| Concentration error | Maximum 0.3%FS; |
| Linearity error | 0.2%FS max; |
| Zero drift | <±0.3%.FS; |
| Ambient temperature | 0-50℃; |
| Interface | ferrule (PTFE) optional 1/4 PFA interface; |
| Sampling calibre | Φ6 (6mm*4mm); |
| Communication mode | RS-485; |
| Output mode | 4-20mA (active); |
| Power supply | 24VDC (220VAC optional); |
| Dimensions | 150mm (H) × 200mm (W) × 80mm (D); and |
| Weight | 3KG |
Application Scenarios
Ozone generator manufacturers, municipal water industry, industrial wastewater industry, fine chemical industry, food and drinking water industry, space disinfection industry, pool disinfection industry, flavor synthesis industry and other industries using ozone generator.
