Zetron Instrument focuses on providing customized solutions for precision analysis and monitoring.

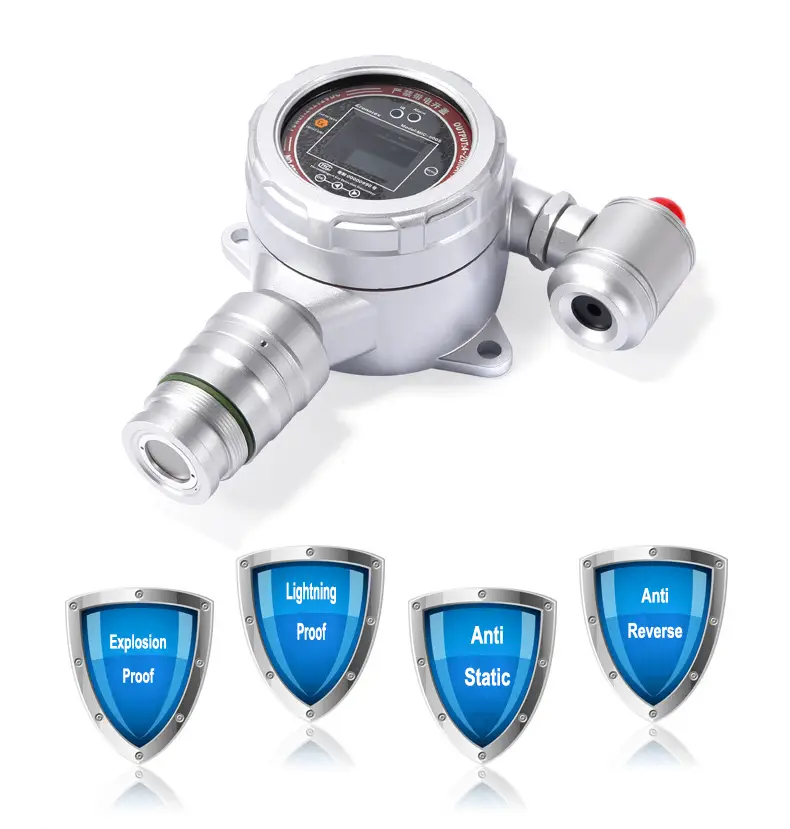

MIC500-O3 Odor Gas Leak Detector
MIC500-3 have multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm. We can support OEM/ODM service.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Zetron MIC500 Odor Gas Leak Detector
|
Gas
|
Ozone ( O3 )
|
Range
|
0-100ppm
other ranges can be customized
|
|
Size
|
210×170×85mm (L×H×W)
|
Weight
|
1.8 Kg
|
|
Installation method
|
Pipeline Type
Wall Mounting Type
|
Display
|
1.7-inch high-definition color screen
|
|
Environment
|
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
|
Approvals
|
IP65; Exd Ⅱ CT6
|
|
Accessories
|
Manual, qualification certificate, warranty card, outer packaging box
|
||
|
Working Voltage
|
12 ~ 30VDC direct current, the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
|
||
|
Working Method
|
Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type.
|
||
|
Connecting Cable
|
Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth.
|
||
|
Optional items
|
Alarms;Wireless Transmission;Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
|
||
|
Installation Type Accessories
(Optional configuration)
|
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...), rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters
|
||
|
Gases to be detected
|
Range
|
Accurancy
|
Resolution
|
Response time T90
|
|
Ozone ( O3 )
|
0-100ppm
|
＜±2%(F.S)
|
0.01ppm
|
≤20 seconds
|
|
Nitrogen oxide ( NOX )
|
0-100ppm
|
＜±2%(F.S)
|
0.01ppm
|
≤30 seconds
|
|
Chlorine gas ( CL2 )
|
0-10ppm
|
＜±2%(F.S)
|
0.001ppm
|
≤30 seconds
|
|
Ammonia gas ( NH3 )
|
0-100ppm
|
＜±2%(F.S)
|
0.01ppm
|
≤30 seconds
|
|
Oxygen gas ( O2 )
|
0-30%Vol
|
＜±2%(F.S)
|
0.01%Vol
|
≤10 seconds
|
|
Nitrogen gas ( N2 )
|
0-100%Vol
|
＜±2%(F.S)
|
0.01%Vol
|
≤10 seconds
|
|
Carbon monoxide ( CO )
|
0-100ppm
|
＜±2%(F.S)
|
0.1ppm
|
≤25 seconds
|
|
Carbon dioxide ( CO2 )
|
0-100%Vol
|
＜±2%(F.S)
|
0.01%Vol
|
≤30 seconds
|
|
Formaldehyde ( CH2O )
|
0-100ppm
|
