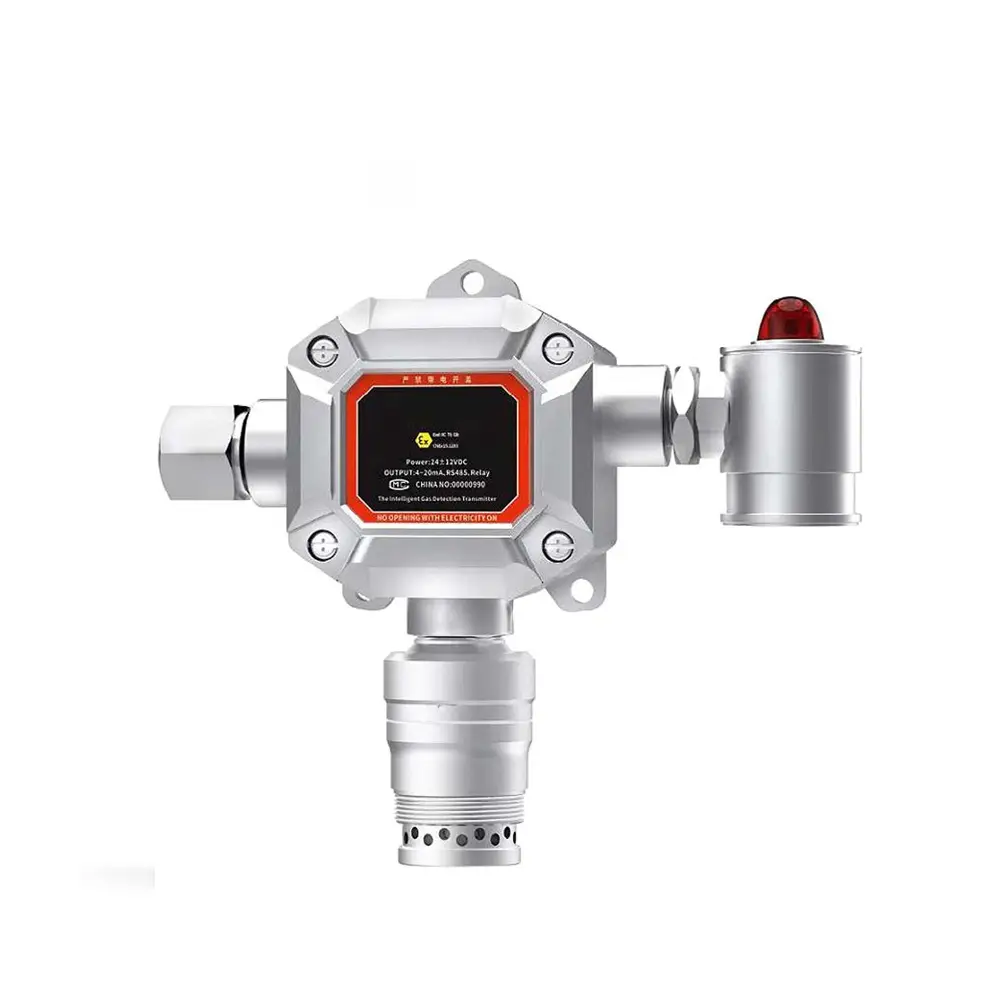

MIC300 Fixed Gas Detector
MIC300 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.
OVERVIEW
MIC300 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.
With a 4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.
Easily integrated into a control system.
| Gas | Oxygen/O2 Gas Detector |
| Detection range | 0~ 1ppm |
| 0~ 10ppm | |
| 0~100ppm | |
| 0~1000ppm | |
| 0~ 5000ppm | |
| 0~ 50000ppm | |
| 0~ 100000ppm | |
| 0~ 200 mg/L | |
| 0~ 100%LEL | |
| 0~ 20%VoL | |
| 0~ 50%Vol | |
| 0~ 100%Vol | |
| Other ranges can be customized | |
| Resolution | 0.01ppm or 0.001ppm (0 ~ 10 ppm); |
| 0.01ppm (0 ~ 100 ppm), | |
| 0.1ppm (0 ~ 1000 ppm), | |
| 1ppm (0 ~ 10000 ppm or more), | |
| 0.01 mg/l (0 ~ 200 mg/l), | |
| 0.1% LEL, | |
| 0.01%Vol | |
| 0.001% Vol | |
| Other ranges can be customized |
Tag： Fixed gas detector、 Online composite gas detector、Multiple gas concentrations monitor、Nitrogen gas detector、 Online Toxic and Harmful Gas Detector、Electrochemical gas monitor、OEM/ODM gas analyzer
| Detection principle | Electrochemical, infrared, thermal conductivity, PID photoionization, and so on. | ||||
| Depending on the type of gas, range, field environment and user demand, | |||||
| Sensor can be customized | |||||
| Sensor service life | Electrochemical principle: 2 ~ 3 years; | ||||
| Infrared principle: 5 ~ 10 years; | |||||
| Thermal conductivity: 5 years | |||||
| Allowable error | ≤±3% F.S (other or higher precision levels can be customized) | ||||
| Linearity | ≤±2% | Repeatability | ≤±2% | Uncertainty | ≤±2% |
| Response time | T90≤30 seconds | Recovery time | ≤30 seconds | ||
| Working environment | Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular) | ||||
| Working voltage | 12 ~ 30VDC direct current | ||||
|
the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A |
|||||
| Power supply reference | 24V, 2.1A is possible to drive 40 units of toxic gas detector, | ||||
| or 15 units of flammable, infrared gas detector. | |||||
| Working method | Fixed type installation, online detection, diffusion type measurement | ||||
| Protection level | IP65 | ||||
| Explosion-proof mark | ExdⅡCT6, certificate number: CNEx15.1283 | ||||
| Exterior dimensions | 233×205×65mm (L×H×W) | ||||
| Weight | 1.0 Kg | ||||
| Standard accessories | Manual, qualification certificate, warranty card, outer packaging box | ||||
All the cases which requires the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline & Processing,Pulp & Paper Industry, Waste Water Treatment Plants, Commercial & Industrial HVAC, Acetylene Gas Bottlers & Users , Ice Skating & Hockey Arenas,Cannabis & Hemp Oil, Breweries and so on.
