Remote Gas Leak Detector for Industrial Safety Monitoring – MIC100-R

The LCD instrument panel design provides an intuitive display.

Intelligent sensors, modular design, easy maintenance;

Multi-point calibration and temperature compensation result in more accurate data.

One-click factory reset to prevent accidental operation;

Triple waterproof design; 4-20mA, RS485 output signal optional;

Two sets of passive relay outputs (normally open by default, normally closed relays need to be customized);

Infrared remote control operation; avoid opening the cover in hazardous areas.

Three-color backlight: white (normal), orange (fault), and red (alarm) indicate the on-site status;

The standard length of the split cable is 1 meter, and longer lengths can be customized.

Inquiry

Write a Review

Product Description

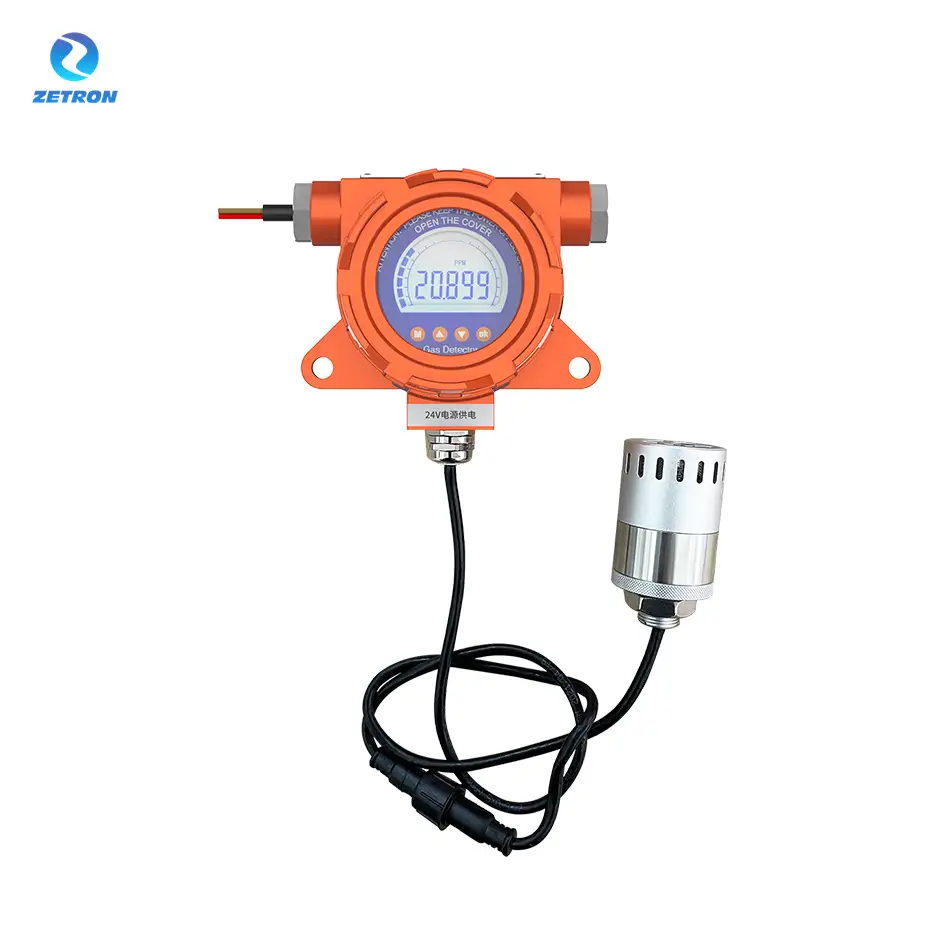

The MIC100-R Fixed Remote Gas Detector is designed for real-time gas monitoring in industrial environments such as chemical plants, oil & gas facilities, and environmental monitoring sites. The split structure allows the sensor and controller to be installed separately, improving installation flexibility and safety.

The standard split cable length is 1 meter, and it can be extended up to 10 meters to meet different installation requirements.

Features

Remote Gas Leak Detector for Industrial Safety Monitoring – MIC100-R 3 The LCD instrument panel design provides an intuitive display.

Remote Gas Leak Detector for Industrial Safety Monitoring – MIC100-R 4 Intelligent sensors, modular design, easy maintenance;

Multi-point calibration and temperature compensation result in more accurate data.

Remote Gas Leak Detector for Industrial Safety Monitoring – MIC100-R 5 One-click factory reset to prevent accidental operation;

Triple waterproof design;

Remote Gas Leak Detector for Industrial Safety Monitoring – MIC100-R 6 4-20mA, RS485 output signal optional;

Remote Gas Leak Detector for Industrial Safety Monitoring – MIC100-R 7 Two sets of passive relay outputs (normally open by default, normally closed relays need to be customized);

Remote Gas Leak Detector for Industrial Safety Monitoring – MIC100-R 8 Infrared remote control operation; avoid opening the cover in hazardous areas.

Remote Gas Leak Detector for Industrial Safety Monitoring – MIC100-R 9 Three-color backlight: white (normal), orange (fault), and red (alarm) indicate the on-site status;

Remote Gas Leak Detector for Industrial Safety Monitoring – MIC100-R 10 The standard length of the split cable is 1 meter, and longer lengths can be customized.

图片2 (13)

图片3 (14)

The standard split cable length is 1 meter, and it can be extended up to 10 meters to meet different installation requirements.

Functional parameters

Detecting gas	Combustible gases, toxic gases, etc.
Detection range	Determine the testing scope based on different environments.
Detection principle	Catalytic combustion, electrochemistry, infrared principles, PID principles (optional)
Accuracy	±3%FS
Repeatability	±2%
Response time	T90 < 30S (T90 depends on the sensor characteristics)
Power supply	24VDC (Normal operating voltage range: 10～30VDC)
Power consumption	<1.5W (toxic gas) <2.5W (combustible gas)


Output signal	Two sets of passive relays (24VDC 2A) output simultaneously: three-wire 4-20mA or four-wire RS485 or both.
Protection level	IP66
Temperature range	-20℃～50℃ (Toxic gas) -40℃～70℃ (combustible gas)


Humidity range	10–95% RH (non-condensing)
Pressure range	86～106 kPa
Explosion-proof certification	Ex db IIC T6 Gb

Application

Online split-type gas detectors are widely used for continuous gas monitoring and safety protection in various complex industrial environments.
