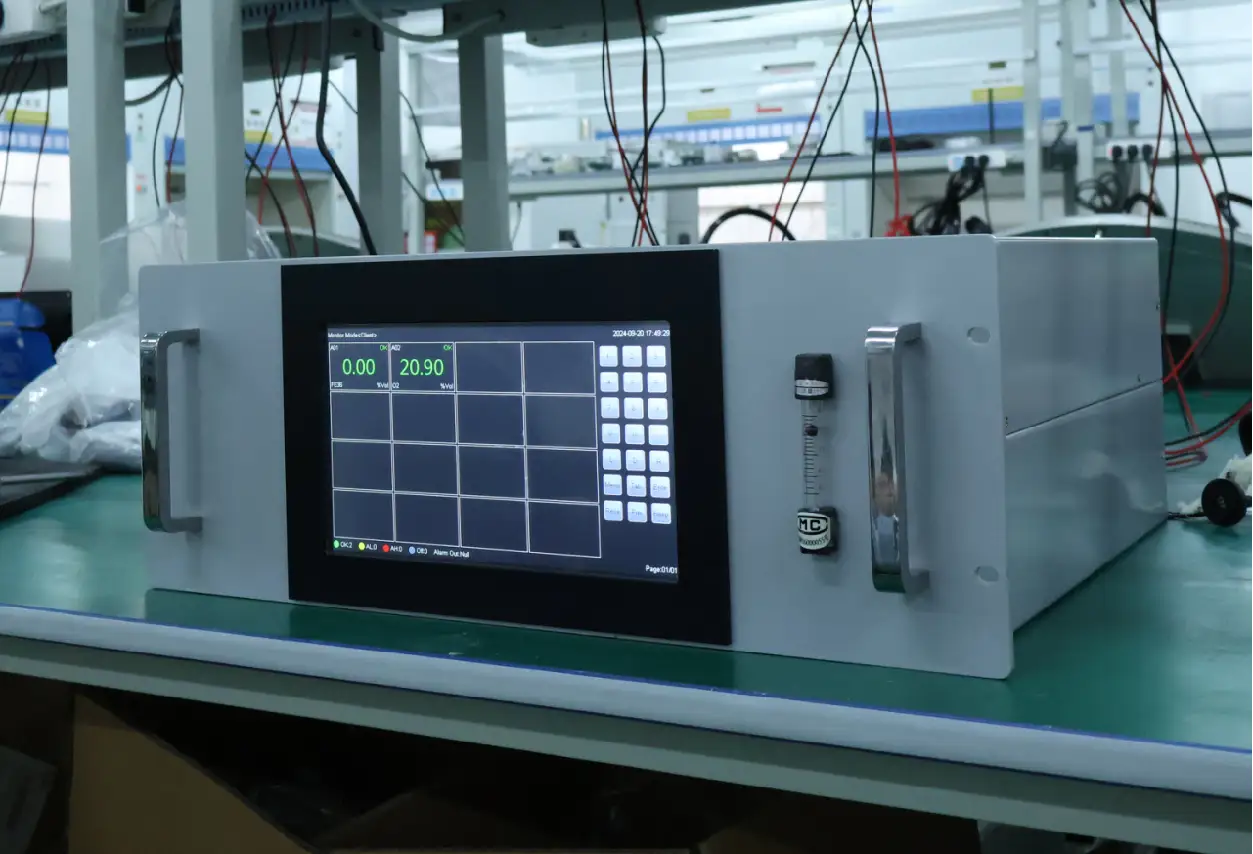

MIC500S-O2 Oxygen Analyzer

The oxygen analyzer is an oxygen analyzer that uses a zirconium oxide oxygen concentration difference battery as a detection sensor.

Inquiry

Write a Review

Product Description

The oxygen analyzer is an oxygen analyzer that uses a zirconium oxide oxygen concentration difference battery as a detection sensor. The instrument's measurement and control system uses the latest single-chip computer calculation and control system, 128*64 dot matrix LCD display, and a new steady-flow gas path system; it has the advantages of advanced technology, high precision, fast response, stable performance, complete functions, convenient operation, and continuous gas analysis process. The instrument is suitable for the detection of oxygen content in gas production, chemical industry, metallurgy, electronics industry, medical treatment, etc.

Features

MIC500S-O2 Oxygen Analyzer 3 Integrated design, small size, light weight, simple structure, reasonable layout;

MIC500S-O2 Oxygen Analyzer 4 Parameters such as purity, furnace temperature, thermocouple temperature, zirconium tube potential, etc. can be displayed for easy reference.

MIC500S-O2 Oxygen Analyzer 5 Parameters such as standard current output, purity limit alarm, purity limit switch output, etc. can be set and modified by buttons;

MIC500S-O2 Oxygen Analyzer 6 The measurement and control of the sensor furnace temperature are completed by the single-chip microcomputer, and it has the function of automatically cutting off the heating power supply when over-temperature occurs, which is safe and reliable;

MIC500S-O2 Oxygen Analyzer 7 Built-in flow control system provides a stable sample gas flow for the sensor, so that the instrument has better stability and reliability;

MIC500S-O2 Oxygen Analyzer 8 The instrument analysis process is continuous, and the range is automatically switched, which can be used for online analysis or laboratory analysis, etc.

MIC500S-O2 Oxygen Analyzer 9 The real-time data storage function is convenient for users to check historical records, and can store up to 3,000 data. When the data record is full, it will be overwritten from the first data.

Product structure composition

Panel structure of the instrument

Panel structure of the instrument

Functional parameters

Model	MIC500S-O2
Measuring range	0.01PPm～10/100/1000PPm/25% O2;
Accuracy	≤±5%FS (below 10PPMO2) ≤±2%FS (above 10PPmO2);;
Stability	zero drift ≤±1%FS/7d; Range drift ≤±1%FS/7d;
Repeatability	≤1%;
Working furnace temperature	750℃;
Preheating time	<15min;
Response time	<30s;
Sample gas flow	400±10ml/min;
Sample gas pressure	≤0.5Mpa
Working environment	Temperature; -20～+60℃; Relative humidity; <95%;
Output signal	standard 4~20mA, RS-485 interface;
Alarm function	oxygen content over-limit alarm and temperature control failure alarm;
Contact output	The oxygen content corresponding to the upper and lower limit contact output can be set arbitrarily;
Contact capacity	220VAC 1A; 24VDC 2A;
Power supply voltage	220VAC±10%, 50/60Hz, 3A;
External dimensions	245 (width) × 132 (height) × 350 (depth);
Opening size	215 (width) × 133 (height)
Weight	5.8kg.
Display description	% content is displayed when it is greater than 999PPm, for example, 1200PPm is displayed as 0.120%; less than or equal to 999PPm is displayed as PPm;

Applications

The instrument is suitable for the detection of oxygen content in gas in gas making, chemical industry, metallurgy, electronics industry, medical treatment and other fields.
