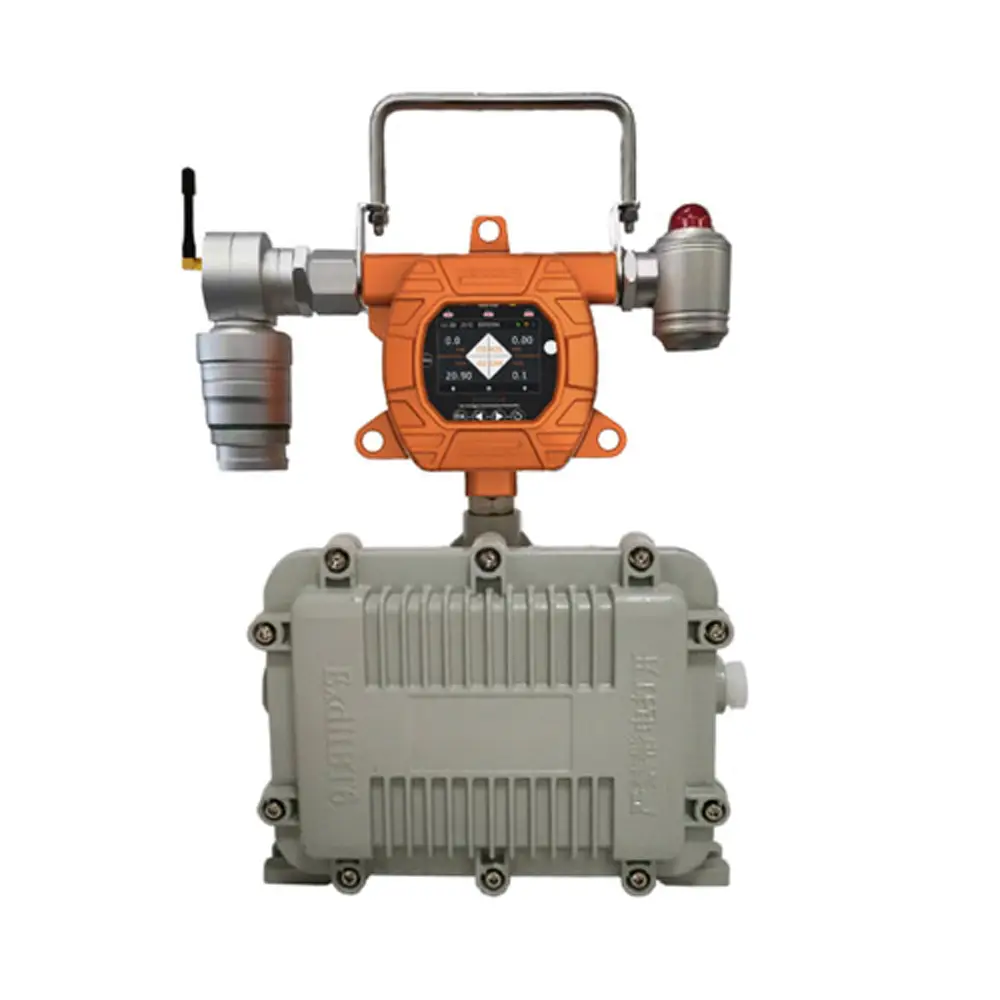

MIC-600 Online composite gas detector

MIC-600 online composite gas detector is used for 24-hour continuous online monitoring of multiple gas concentrations and temperature and humidity measurement, on-site display of concentration and sound and light alarm for exceeding the standard, and remote data transmission. We provide gas detector OEM/ODM serves.

Inquiry

Write a Review

MIC-600 Fixed six-in-one gas detector

MIC-600 has advanced circuit design and mature kernel algorithm processing, and has obtained a number of software work patents and appearance patents, thus giving birth to a new generation of multi-functional fixed-line composite gas detection alarms that are leading in the industry. The MIC-600 can detect gas concentration in pipelines, confined spaces, and atmospheric environments, as well as gas leaks, and can also detect the purity of high-concentration single gases. The sturdy and durable explosion-proof casing and fluorocarbon paint surface treatment process are suitable for various hazardous locations and corrosive environments with strong acid and alkali, and are resistant to wear and tear, and will not fade and paint within 10 years.

MIC-600 Online composite gas detector 5

MIC-600 Online composite gas detector 6

MIC-600 Online composite gas detector 7

MIC-600 Online composite gas detector 8

MIC-600 Online composite gas detector 9

MIC-600 Online composite gas detector 10

MIC-600 Online composite gas detector 11

MIC-600 Online composite gas detector 12

MIC-600 Online composite gas detector 13

MIC-600 Online composite gas detector 14

Gases to be detected	Range	Accurancy	Resolution	Response time T90
Ammonia gas ( NH3 )	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Combustible gas ( EX )	0-100%LEL	＜±2%(F.S)	0.1%LEL	≤10 seconds
Methane ( CH4 )	0-100%Vol	＜±2%(F.S)	0.1%Vol	≤10 seconds
Oxygen gas ( O2 )	0-30%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Nitrogen gas ( N2 )	0-100%Vol	＜±2%(F.S)	0.01%Vol	≤10 seconds
Hydrogen sulfide ( H2S )	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Sulfur dioxide ( SO2 )	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitric oxide ( NO )	0-100ppm	＜±2%(F.S)	0.01ppm	≤30 seconds
Nitrogen dioxide ( NO2 )	0-100ppm	＜±2%(F.S)	0.01ppm	≤25 seconds

Tag： Fixed gas detector、 Online composite gas detector、Multiple gas concentrations monitor、Nitrogen gas detector、 Online Toxic and Harmful Gas Detector、Electrochemical gas monitor、OEM/ODM gas analyzer

Detection gas	Composite gas (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2, combustible gas Ex)
Optional	Can detect any 4 to 6 kinds of gases and temperature and humidity at the same time
Detection range	CO (0～1000ppm), H2S (0～100ppm), O2 (0～30%Vol), Ex (0～100%LEL), other ranges can be customized
Resolution	CO(0.1ppm), H2S(0.01ppm), O2(0.01%Vol), Ex(0.1%LEL), higher resolution can be customized
Detection principle	Electrochemistry, catalytic combustion, infrared, thermal conductivity, PID photoion , depending on gas, range, site environment and user needs
Sensor life	2 to 3 years for electrochemical principle, 2 years or 6 years for oxygen, 5 to 10 years for infrared principle, 3 years for catalytic combustion, and 5 years for thermal conductivity
Temperature detection	-40℃~+120℃ (optional), humidity detection: 0~100%RH (optional), resolution : temperature 0.1℃, humidity: 1%RH
Detection accuracy	≤±2%FS (≤2% in full scale), temperature 0.5℃, humidity: 3%RH, higher precisio n can be customized
Working mode	Fixed installation, online detection, diffusion measurement, pipeline type, flow type , pump suction type optional
Installation method	Pipeline type, wall-mounted type. The working pressure of the pipeline type is ±30% of atmospheric pressure, and it needs to be depressurized if it exceeds the range.
Response time	T90≤20 seconds
Recovery time	≤30 seconds
Output signal	Bus system RS485 (RTU), optional three (four) wire system 4~20mA, 0~20mA, 1~5V, 0~5V, 0~10V, wireless transmission
Alarm mode	On-site sound and light alarm (optional), default 1 channel, optional 3 channels of passive contact (dry node) output, three-level alarm, alarm point can be set
Working environment	-40℃～+70℃
Sample gas temperature	-40℃～+70℃ (regular), optional: -40℃～+400℃, -40℃～+800℃ (high 1300℃)
Relative humidity	≤10-95%RH (regular) non-condensing occasions, optional: 10-99%RH for high temperature and high humidity occasions, when ordering
Working voltage	12~30V (DC DC, the standard power supply of a single device is 24V, 1A or more than 1A DC switching power supply)
Explosion-proof form	Flameproof ExdⅡCT6
Dimensions	210×170×85mm
Weight	1.8Kg

Application occasions: petroleum, chemical, pharmaceutical, environmental protection, flue gas analysis, air treatment and other occasions that require fixed installation and online gas concentration detection.
