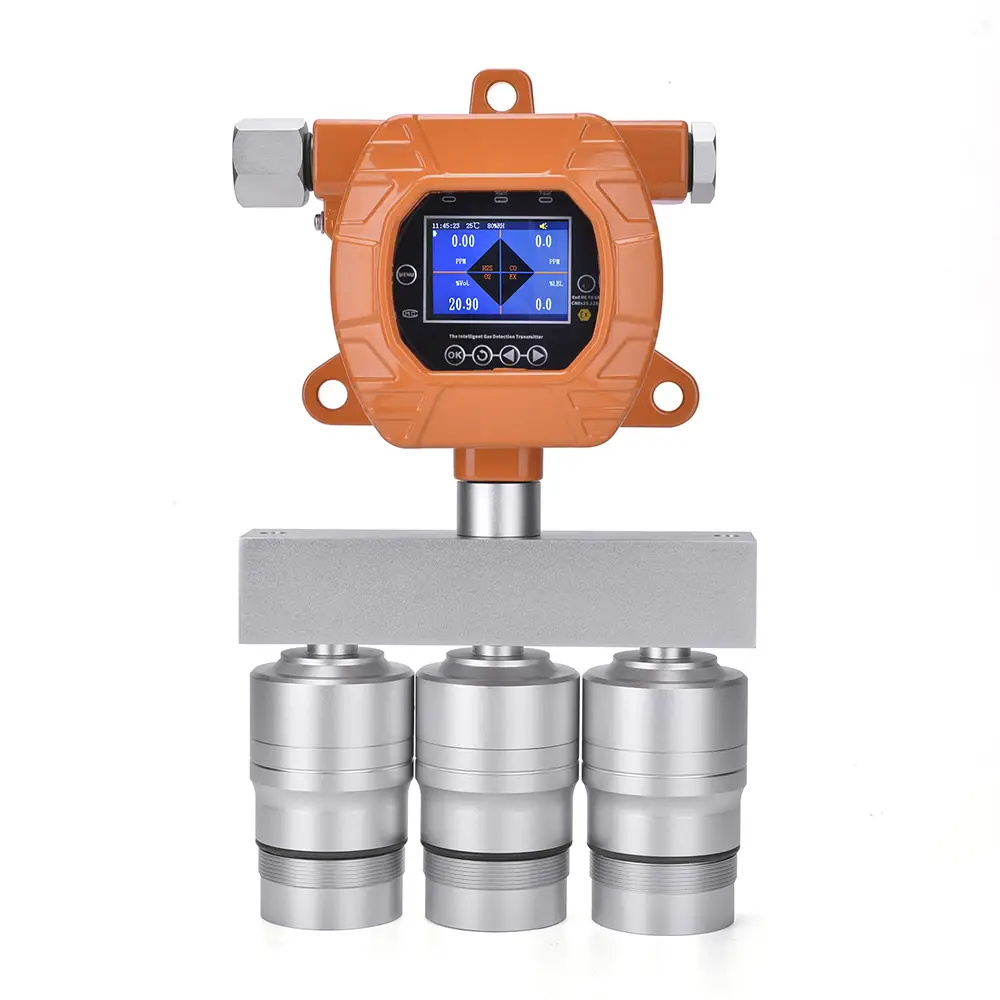

Zetron MIC600-Ex 260 Degrees High Temperature Combustible Gas Detector
The MIC-600 series fixed six-in-one gas detector is used for 24-hour continuous online monitoring and temperature and humidity measurement of various gas concentrations in the field, displaying the concentration and outputting standard signals on site, and remote data transmission. The 2.5-inch high-definition color screen displays the concentration in real time.
MIC-600-EX Online Combustible Gas Detector
MIC-600 series fixed six-in-one gas detector is used for 24-hour continuous online monitoring and temperature and humidity measurement of various gas concentrations in the field, displaying the concentration and outputting standard signals on site, and remote data transmission. The 2.5-inch high-definition color screen displays the concentration in real time.
|
Gas
|
EX
|
Range
|
0-100%LEL、5%Vol
other ranges can be customized
|
|
Size
|
210×170×85mm (L×H×W)
|
Weight
|
1.8 Kg
|
|
Installation method
|
Pipeline Type
Wall Mounting Type
|
Display
|
2.5-inch high-definition color screen
|
|
Environment
|
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
|
Approvals
|
IP66; Exd Ⅱ CT6
|
|
Accessories
|
Manual, qualification certificate, warranty card, outer packaging box
|
||
|
Optional items
|
Alarms;Wireless Transmission;Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
|
||
|
Installation Type Accessories
(Optional configuration)
|
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...), rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters
|
||
