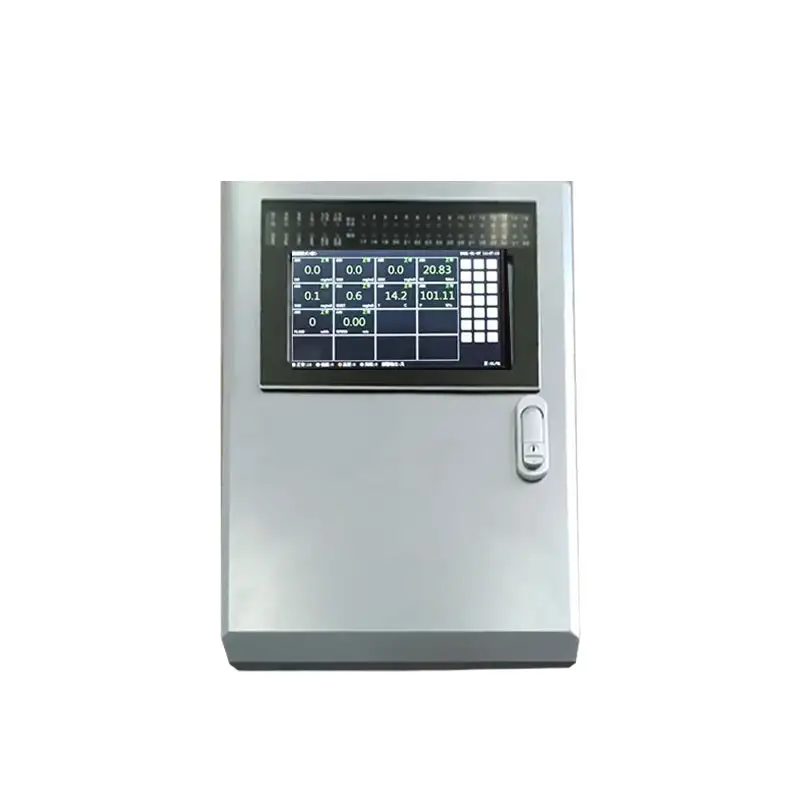

MIC3000 Combustible Gas Detector Control Panel
Gas alarm controller has data recording function, standard large-capacity storage, more large-capacity can be customized. We can support OEM/ODM service.
MIC3000 Combustible Gas Detector Control Panel
Gas alarm controller with computer monitoring function can be connected to a computer to continuously monitor real-time concentration through the host computer software 24 hours a day, automatically store data on the computer, computer alarm (need to be equipped with speakers), or through the host computer software to read the records stored in a probe or all probes and data analysis, can display the maximum value, minimum value, average value, historical curve, real-time curve and other functions, can export data or printing.
Tag：Multi channel gas controller、Controller alarm、Gas alarm controller、Gas detector controller、Combustible Gas detector control panel、Gas concentration controller、3000 Degree control system、OEM/ODM gas alarm controller
| Output signal | RS485 (standard MODBUS protocol), 4-20mA (4-channel, 8-channel optional), Ethernet, wireless (4G/3G/2G 433M LoRa Zigbee), etc. |
| Display range | Digital 0～99999 |
| Resolution | 1, 0.1, 0.01, 0.001 selectable |
| Display Accuracy | ±0.1%FS |
| Alarm mode |
Sound and light alarm, each circuit can be individually set high and low limit alarm value, each circuit can be bound to three relay linkage output |
| Working temperature | -20℃～+55℃, 10~85%RH, non-condensing occasion use, waterproof splash and short time rain |
| Power source | AC 180~240V 50H/60H |
| Maximum power consumption | Less than 10W (no-load) |
| Backup power supply | Optional as needed, price is extra |
| Installation method | Wall-mounted |
| Optional functions | All-in-one printer, Bluetooth printer, wireless transmission (GPRS, Bluetooth, WiFi, 433M, LoRa) |
| Output signal | RS485 (standard MODBUS protocol), 4-20mA (4-channel, 8-channel optional), Ethernet, wireless (4G/3G/2G 433M LoRa Zigbee), etc. |
| Display range | Digital 0～99999 |
| Resolution | 1, 0.1, 0.01, 0.001 selectable |
| Display Accuracy | ±0.1%FS |
| Alarm mode |
Sound and light alarm, each circuit can be individually set high and low limit alarm value, each circuit can be bound to three relay linkage output |
| Working temperature | -20℃～+55℃, 10~85%RH, non-condensing occasion use, waterproof splash and short time rain |
| Power source | AC 180~240V 50H/60H |
| Maximum power consumption | Less than 10W (no-load) |
| Backup power supply | Optional as needed, price is extra |
| Installation method | Wall-mounted |
| Optional functions | All-in-one printer, Bluetooth printer, wireless transmission (GPRS, Bluetooth, WiFi, 433M, LoRa) |
