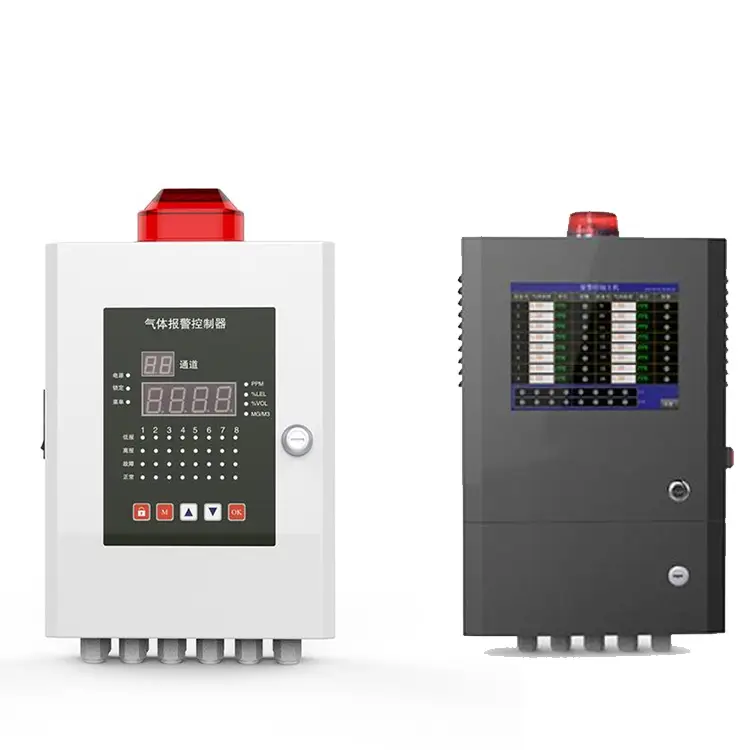

TH100-8 Eight Channel Gas Alarm Controller 1

TH100-8 Eight Channel Gas Alarm Controller 2

TH100-8 Eight Channel Gas Alarm Controller 3

TH100-8 Eight Channel Gas Alarm Controller 4

TH100-8 Eight Channel Gas Alarm Controller

The gas alarm controller is a smart controlled system that is practical and easy to operate. It can be connected to the gas sensor with 4-20mA signal output, to realize remote control and system integration. It is compatible with different kinds of gas sensors, mainly used for areas that need to measure combustible or toxic gases, which can show the gas concentration directly, and when the gas concentration reaches the alarm point, the controller will alarm with sound and light. We provide gas detector OEM/ODM serves.

Inquiry

Write a Review

TH100-8 Gas Detector Controller

With new design of Touch screen, simple operation. It could connect the TH100 fixed gas detector to make up as the industrial gas detection system. It will display the all gas concentration for each gas detector, when the gas concentration level up to the preset data, the controller will alarm with acoustic and light signal. Synchronously, the actuator will begin to drive the exhaust or the cut off valve and other equipment, in order to prevent the poisoning accident, explosion or fire. The TH100 Combustible Gas detector controller and TH100 is Alarm control main engine wireless it could guarantee the security of the industrial working place.

TH100-8 Eight Channel Gas Alarm Controller 5

TH100-8 Eight Channel Gas Alarm Controller 6

TH100-8 Eight Channel Gas Alarm Controller 7

TH100-8 Eight Channel Gas Alarm Controller 8

TH100-8 Eight Channel Gas Alarm Controller 9

Tag：Eight channel gas controller、Controller alarm、Gas Alarm Controller、Gas Detector Controller、Combustible Gas detector control panel、gas concentration controller、 Control system、OEM/ODM Gas Alarm Controller

Item	Description
Product name	TH100 - 8 Channel Gas Alarm Controller
Display	8 inch TFT LCD touch screen
Power supply	AC220V±15%, 50Hz±1%
Consumption	≤10W(according to different channels)
Output voltage	DC24V±15%
Input signal	RS-485/ 4-20mA
Relay output	4 relay output with optional NO or NC / customized
Relay contact capacity	5A, 30VDC or 5A, 220VAC
Alarm mode	Audible, visual
Installation mode	Wall-mounted
Suitable gas detector	MIC100 Fixed gas detector with RS485 signal output
Gas detector quantity	≤64pc
Communication distance	≤2000m
Working temperature	-10℃~+50℃
Working humidity	10~95%RH（Non-condensation）
Size	400mm280mm80mm
Weight	About 3.6kg
Protection grade	IP54
Quality standard	GB 16808-2008 GB 15326-1994
Certificate	CE, RoHS

The TH100 Gas detection controller used to connect with the fixed gas detector and the related equipment in industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc.
