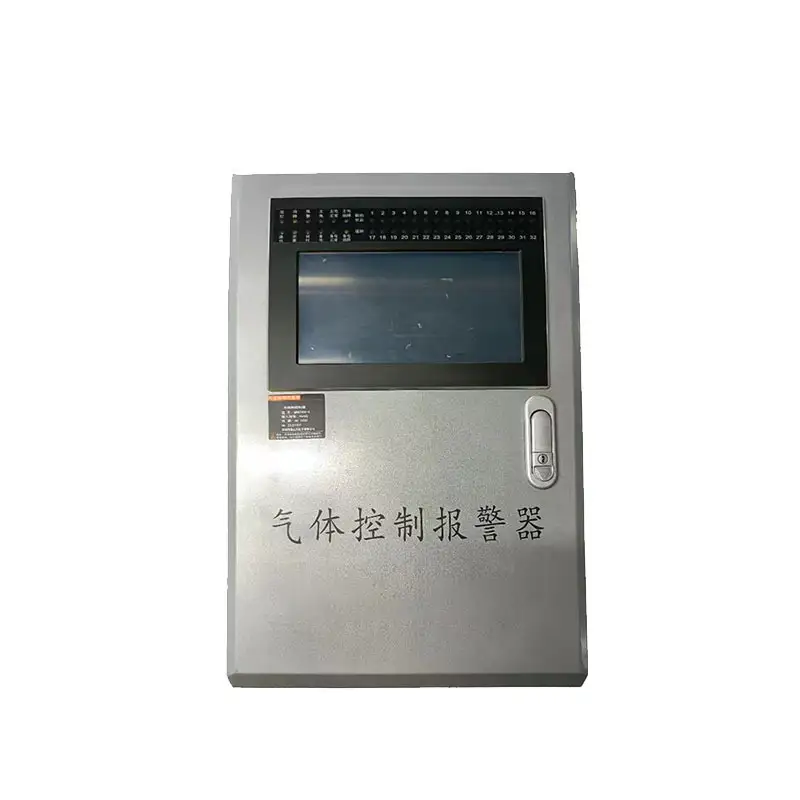

MIC3000 Gas Control Alarm
MIC3000 Gas control alarm can be connected to various gas detectors, temperature and humidity transmitters, pressure transmitters, wind speed transmitters, dust detectors and other 4-20mA signals. We can support OEM/ODM service.
MIC3000 Gas alarm controller
Gas alarm controller is a kind of gas concentration monitoring and leakage centralized alarm controller, the power supply is powered by utility grid or battery directly. A gas alarm controller can be connected to 120 RS485 output gas detectors and 8 4-20mA output gas detectors, more input channels can be customized. It can be connected to various gas detectors, temperature and humidity transmitters, pressure transmitters, wind speed transmitters, dust detectors and other 4-20mA signals.
Tag：Multi channel gas controller、Controller alarm、Gas alarm controller、Gas detector controller、Combustible Gas detector control panel、Gas concentration controller、3000 Degree control system、OEM/ODM gas alarm controller
| Signal input |
4～20mA, RS485 input. Support up to 255 channels of input, 32 channels of relay output, 32 channels of 4-20mA input and output. The system cascade supports more than 1000 input channels at most |
| Output signal | RS485 (standard MODBUS protocol), 4-20mA (4-channel, 8-channel optional), Ethernet, wireless (4G/3G/2G 433M LoRa Zigbee), etc. |
| Display range | Digital 0～99999 |
| Resolution | 1, 0.1, 0.01, 0.001 selectable |
| Display Accuracy | ±0.1%FS |
| Alarm mode |
Sound and light alarm, each circuit can be individually set high and low limit alarm value, each circuit can be bound to three relay linkage output |
| Automatic detection | Line break/short circuit detection, various status of detectors, function detection, etc. |
| Working temperature | -20℃～+55℃, 10~85%RH, non-condensing occasion use, waterproof splash and short time rain |
| Power source | AC 180~240V 50H/60H |
| Maximum power consumption | Less than 10W (no-load) |
| Backup power supply | Optional as needed, price is extra |
| Installation method | Wall-mounted |
| Optional functions | All-in-one printer, Bluetooth printer, wireless transmission (GPRS, Bluetooth, WiFi, 433M, LoRa) |
MIC3000 gas detection controller used to connect with the fixed gas detector and the related equipment in industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc.
