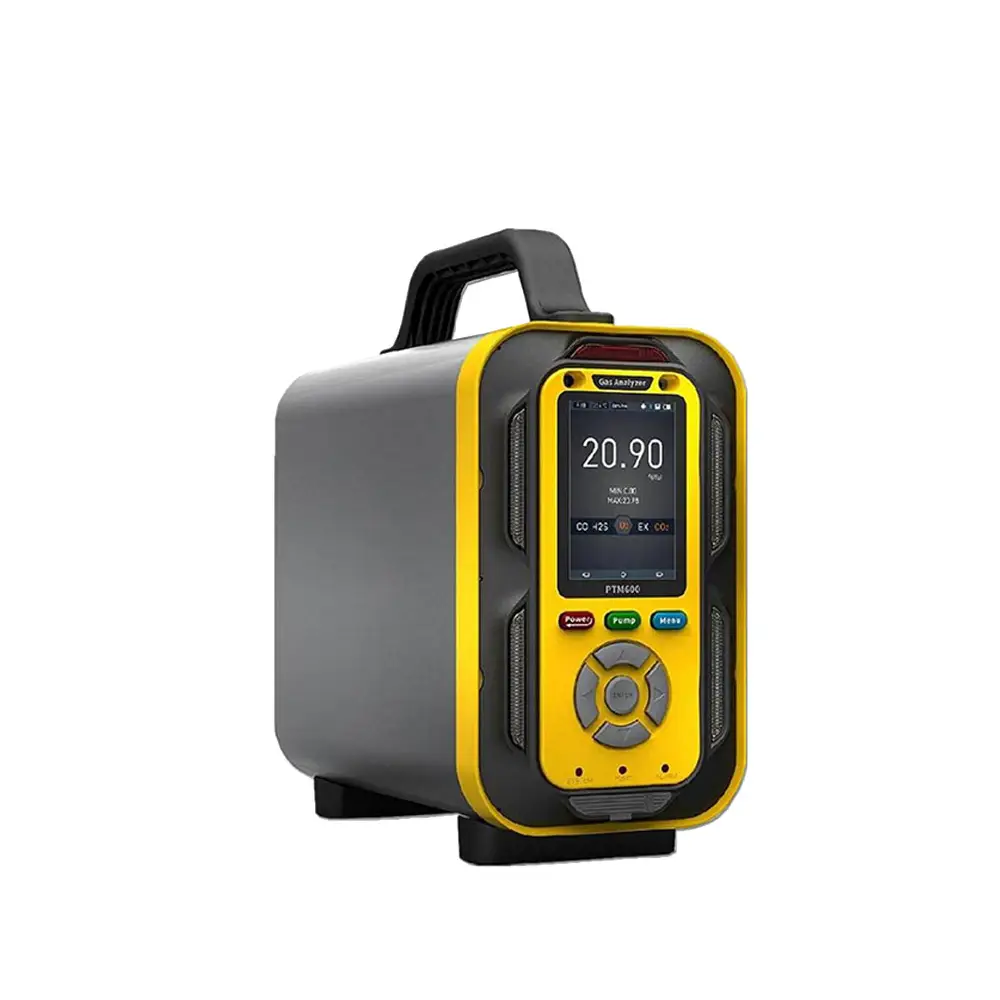

PTM600-AQI5 Portable 5 in 1 Gas Detector
PTM600-AQI5 portable gas detector has the function of measuring multi gases, temperature and humidity. We can support OEM/ODM sevice.
PTM600-AQI5 Portable 5 in 1 Gas Detector
PTM600-AQI5 portable gas detector can be selected to detect 1~8 factors (including gas concentration, temperature and humidity, particulate matter, differential pressure, wind speed, etc.) simultaneously.
Feature:
* Up to 30 kinds of factors can be detected at the same time; the specific detection type depends on the internal sensor configuration of the instrument
* Units are freely switchable, units can be selected: ppm, mg/m3, ug/m3, VOL%, LEL%, pphm, ppb, mg/L.
* Built-in pump suction measurement, sampling distance greater than 10 meters; support real-time detection or timed detection (turn off the air pump when not detecting)
* Rich man-machine interface: 3.5-inch high-definition color screen display, the menu interface uses high-definition simulation graphics to display the function name of each menu.
* A variety of alarm modes alarm mode setting, alarm status indication in multiple directions when the alarm:
→ Alarm mode: sound and light alarm, visual alarm, sound and light + visual alarm.
→ Alarm types: concentration alarm, undervoltage alarm, fault alarm
→ Alarm mode: low alarm, high alarm, interval alarm, weighted average alarm
* Misoperation identification function Concentration calibration misoperation is automatically identified and stopped, which can avoid the bad caused by human factors.
* Protection level up to IP66 splash-proof, dust-proof, explosion-proof, shock-proof
Tag: Air Qquality Monitoring System、Handheld Indoor Gas Monitor、 Gas Concentration Temp & Humidity System、High Precision Air Quality Monitor、OEM/ODM Device
|
Gases to be detected
|
NO, NO2, CO, CO2, O2
|
||||
|
Resolution
|
0.001 PPM(0-1 PPM);0.01 PPM or 0.001 PPM(0~10 PPM);1 PPM or 0.1 PPM(0~1000 PPM);
1 PPM(0~1000 PPM);0.01mg/L(0~200%mg/L);0.1%LEL(0-100%LEL) other resolution can be customized |
||||
|
Detection principle
|
PID photoionization Depending on the type of gas, range, field environment and user demand, can be customized.
|
||||
|
Allowable error
|
≤±2% F.S (other or higher precision levels can be customized)
|
||||
|
Working environment
|
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH
|
||||
|
Power supply
|
3.6VDC, 10000mA high capacity rechargeable polymer battery
|
||||
|
Detection mode
|
Built-in pump-suction type measurementFlow rate at 800 ml / min
|
||||
|
Alarm mode
|
Sound & light alarm, vibration alarm, turning off the alarm.
|
||||
|
Protection level
|
IP66
|
||||
|
Exterior dimensions
|
230×210×120 mm (L×H×W)
|
||||
|
Weight
|
2.5Kg
|
||||
Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis, air treatment and all other occasions that need to detect and analyze gas concentration.
