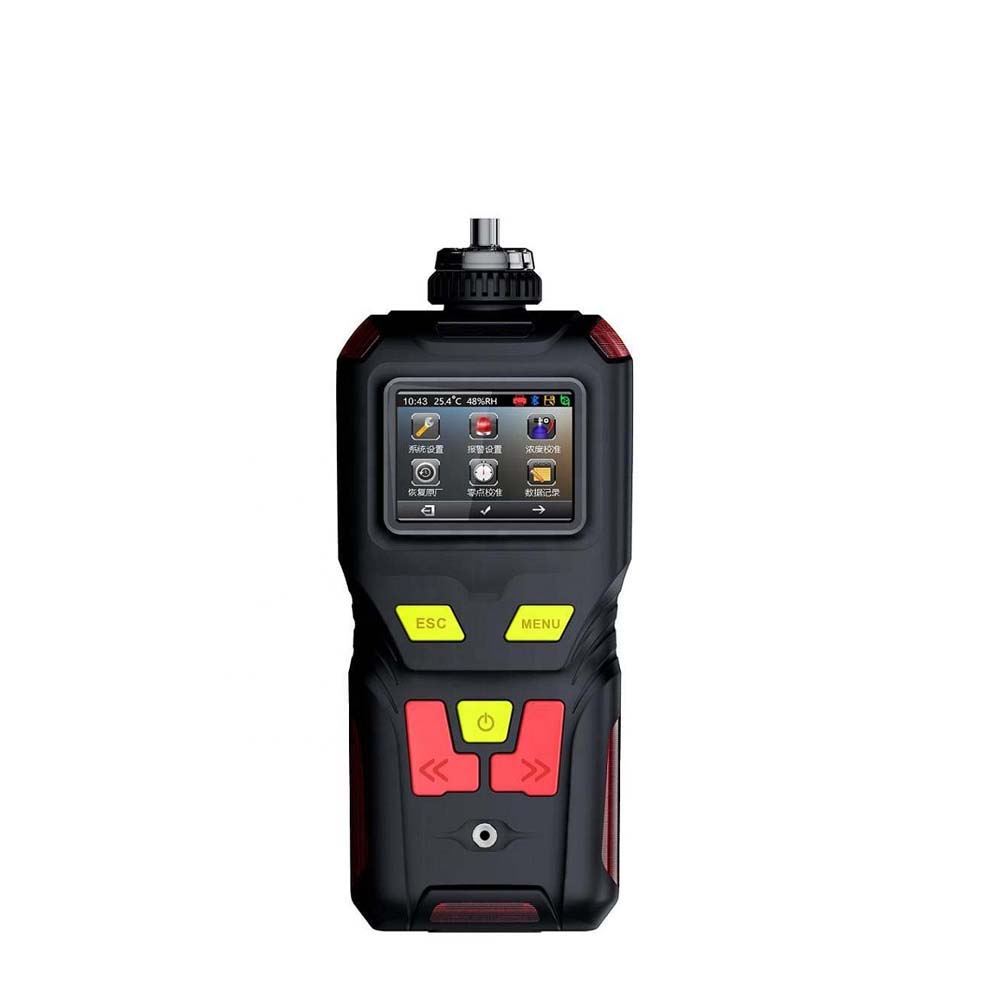

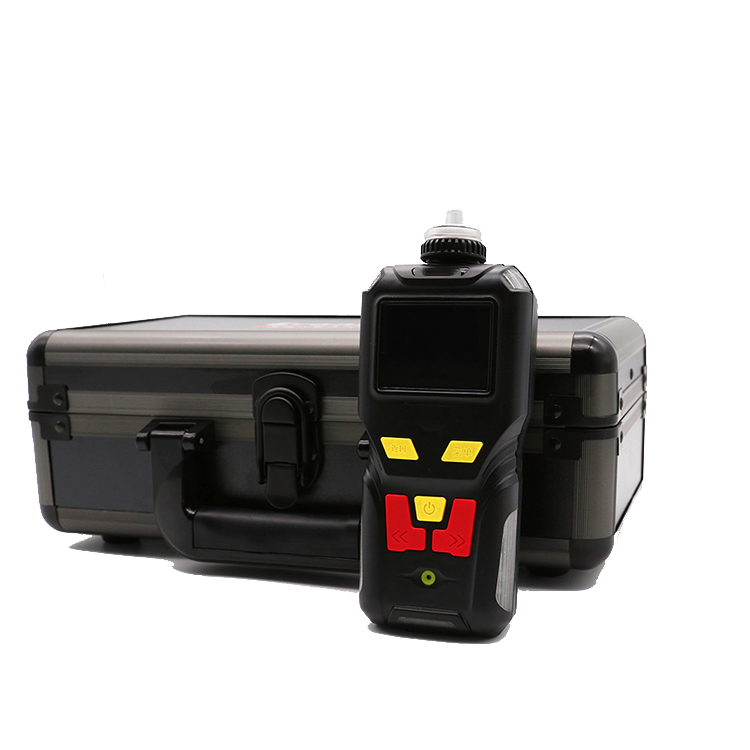

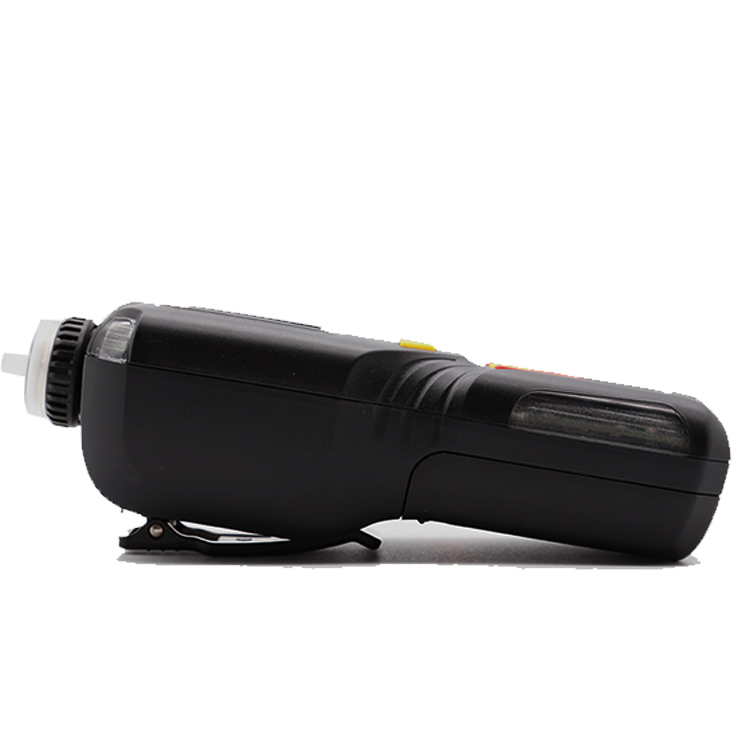

MS400-AQI 4 in 1 Gas Detector
MS400-AQI gas detector measures up to 4 gases, including LEL, CL2, H2S and O2 all at once—either in pump or diffusion mode.We provide gas detector OEM/ODM serves.
MS400-AQI 4 in 1 Gas Detector
MS400-AQI Gas Detector is up to 4 potential atmospheric hazards including oxygen, combustible and toxic gases, t he types of gases for detection are more than 500 types,MS400-AQI is unparalleled in its versatility, capability and overall value.
It's adopted water-resistant line of portable gas detectors has transformed the market with its matchless array of features.
Continuously monitoring and displaying concentrations of up to 4 gases, the compact and lightweight MS400-AQI was designed and engineered with an extensive host of applications in mind.
|
Measuring gas
|
Hydrogen sulfide (H2S)
Chlorine(CL2)
Oxygen (O2) LEL |
|||
|
Measuring range
|
H2S:0-100000ppm
CO:0-10000ppm O2:0-100%Vol LEL:0-10000ppm and other ranges can be customized |
|||
|
Resolution
|
0.01 ppm
1 ppm 0.01 %Vol
0.1 %Vol
Other resolution can be customized
|
|||
|
Sensor type
|
Infrared Sensor
Other Sensor:Laser , Electrochemical, Thermal conductivity, catalytic combustion, thermal conductivity, PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand,
Other sensors can be customized.
|
|||
|
Measuring type
|
Built-in Pump sunction
|
|||
|
Response time
|
T90<30s
|
|||
|
Display
|
2.31-inch high-definition color screen
|
|||
|
Alarm method
|
sound & light alarm;
vibration alarm;
sound & light + vibration alarm;
turning off the alarm
|
|||
|
Battery
|
DC3.7V, 4500mA high capacity rechargeable polymer battery
|
|||
|
Data storage
|
Standard capacity is 100, 000 entries
|
|||
|
Working temperature
|
-40 ℃ ~ + 70 ℃
|
|||
|
Working humidity
|
≤10 ~ 95% RH
|
|||
|
Housing
|
Rubber enclosure
|
|||
|
Standard accessories
|
Manual, qualification certificate, warranty card, USB charger (including the data cable), belt clip, colorful packaging box (optional high-grade aluminum instrument case)
|
|||
|
Dimension
|
160×70×28mm (L×W×H)
|
|||
|
Weight
|
300g
|
|||
|
Ex grade
|
Ex ia IIC T6 Ga Intrinsically safe type
|
|||
|
Ingress protection
|
IP65
|
|||
All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
