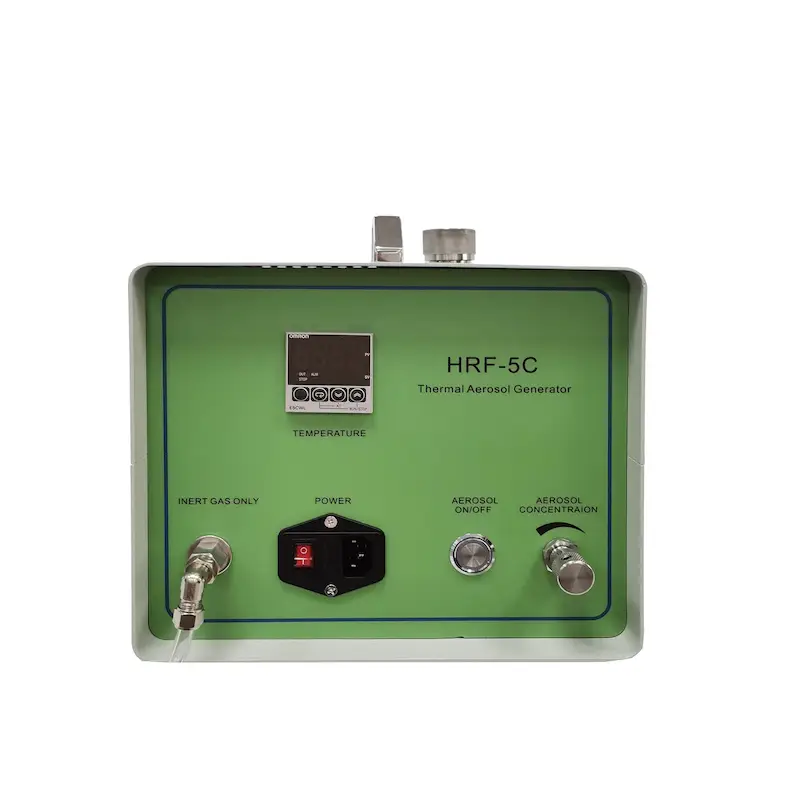

Zetron HRF-5C Aerosol Generator

HRF-5C type aerosol generator is a portable generator. It is designed according to the principle of generation, heating generation type of aerosol generator. We can offer OEM/ODM service.

Inquiry

Write a Review

HRF-5C Aerosol Generator Heat-Type

HRF-5C type aerosol generator is a portable generator. It is designed according to the principle of generation, heating generation type of aerosol generator.

HRF-5C type can be applied to a broader flow rate of 1500 ~ 65000cfm, can meet the use of high-efficiency filter testing of large flow rates.

Aerosol generator is a device to generate smoke, DOP solvent (or PAO solvent) poured into the generator container, under certain pressure heating conditions can produce aerosol smoke, the aerosol smoke will be sent to the upwind side of the high-efficiency filter (DOP liquid heating, the formation of DOP vapor, the vapor condensed into tiny droplets under specific conditions, remove the too large and too small droplets, leaving only 0.3μm (about particles, mist DOP into the air duct).

The aerosol generator can be equipped with an optional nozzle connector to direct the aerosol particles generated by the aerosol generator upstream of the high-efficiency filter.

Zetron HRF-5C Aerosol Generator 2

Tag: High Efficiency Filter Scanning and Testing System, Cleanroom Aerosol Generator, Aerosol Generator, HAVC system , OEM/ODM service

Usable flow rate range	1,500-65,000cfm (42-1,839.5m3/min)
Occurrence concentration	10ug/L: Flow rate 65,000cfm (at approx.1839.5m3/min)
	100ug/L: Flow rate 6,500cfm (at approx. 183.95m3/min)
Particle generation	PAO, DOP, polydispersed
Compressed gas (inert)	Nitrogen, Argon, Carbon Dioxide or Helium (50psi))
Generation method	Heating generation
Power supply	AC220～240VAC,50/60HZ
Dimension	280×390×300mm
Weight	Approx. 14kg

Aerosol generator can be widely used in Pharmaceutical Industry (pharmaceutical factories, drug testing, hospital operating rooms, etc); Electronic Industry (semiconductor factory, precision machinery production and processing, etc);Food Hygiene Industry (dairy products, plastic meat food, seasoning food, agricultural products, etc); Filter Manufacturers, inspection filter quality and efficiency, etc; Optical, Aerospace and other areas of precision processing, precision testing required Clean Room (area), and other testing needs.

Zetron HRF-5C Aerosol Generator 3
