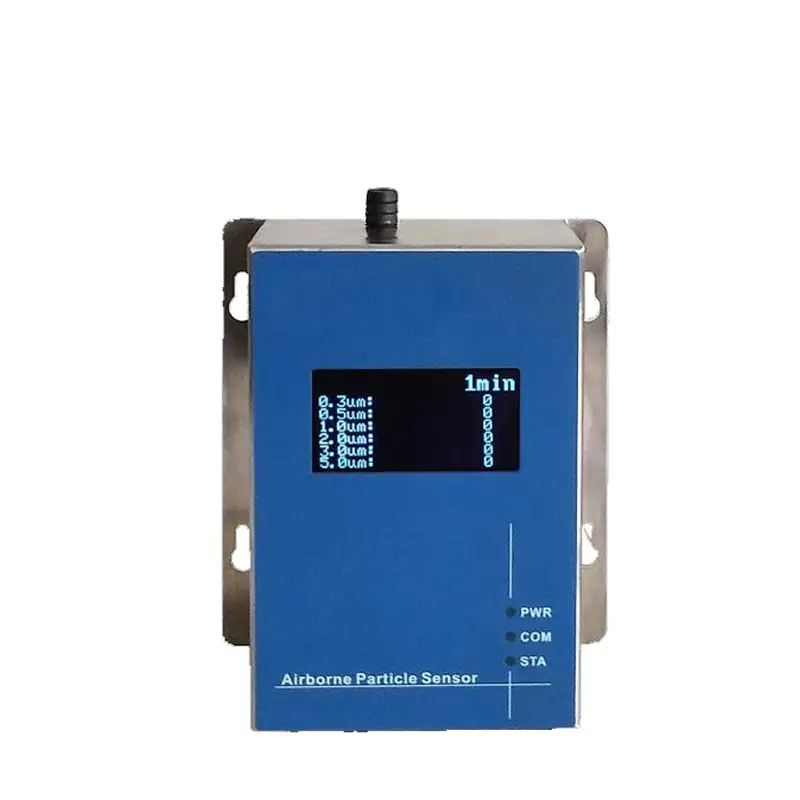

R210 Airborne Particle Counter

R210 Remote particle counter is used to install one or more monitoring points according to the actual situation on site, and the measured datas will be directly displayed on the display screen of each monitoring point.

Inquiry

Write a Review

Overview

R210 Remote Particle Counter meets the requirements of GMP, and ISO21501-4.

If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient.

Features

R210 Airborne Particle Counter 7 Reasonable structure design, compact size, easy installation

R210 Airborne Particle Counter 8 Particle size channel: 0.3um-25um optional Note: CLJ-R200 optional 0.2μm

R210 Airborne Particle Counter 9 sampling flow rate: 1CFM (28.3LPM) or 0.1CFM (2.83LPM) optional

R210 Airborne Particle Counter 10 Three kinds of status indicator guide: power indicator; communication indicator; measurement status indicator

R210 Airborne Particle Counter 11 RS485 (modbus), 4-20mA, WIFI, LORA, TCPIP and other signal output methods can be selected

R210 Airborne Particle Counter 12 Using foreign original laser diode and vacuum pump, long service life

R210 Airborne Particle Counter 13 2.4 inch OLED display, intuitive and clear reading

R210 Airborne Particle Counter 14 316 stainless steel housing can be customized

R210 Airborne Particle Counter 15 Customizable explosion-proof sensor

图片13 (2)

图片14 (2)

图片15 (2)

Parameters

Model	R200 (2.83L/min) R300 (28.3L/min)	R210 (2.83L/min) R310 (28.3L/min)	R310P(28.3L/min)
Channel sizes	Two Channels: 0.5um, 5.0um Three Channels: 0.3um, 0.5um, 5.0um Four Channels: 0.3um, 0.5um, 1.0um, 5.0um Six Channels:0.3um, 0.5um, 1.0um, 2.0m, 3.0um, 5.0um(Customizable)
Display	X	Customizable2.4 inch OLED	Display2.4 inch OLED
Output	RS485(modbus)	RS485(modbus) or TCPIP(modbus)(TCPIP has no extended output)
RS485(modbus)Extended Output	x	4-20mA (2 channels) ; 0-5V (2channels)Relay (2channels) ; WiFi; LORA
Power Supply	12-24V	12-24V (RS485 (modbus))12-24V、 48V Standard POE (TCPIP (modbus))
Pump	External pump	Built-in pump (R210) External pump (R310)	Built-in pump
Weight & Size	0.2-0.3Kg106.5x76x49 (mm)	0.9Kg135x120x60 (mm)	2.6-2.8Kg217x250x138 (mm)

Model	R200 (2.83L/min） R300 (28.3L/min）	R210 (2.83L/min） R310 (28.3L/min）	R310P (28.3L/min）
Channel sizes	Two Channels: 0.5μm、5.0μm Three Channels: 0.3μm、0.5μm、5.0μm Four Channels: 0.3μm、0.5μm、1.0μm、5.0μm Six Channels: 0.3μm、0.5μm、1.0μm、2.0μm、3.0μm、5.0μm (Customizable)
Display	X	Customizable 2.4 inch OLED	Display 2.4 inch OLED
Output	RS485(modbus)	RS485(modbus) or TCPIP(modbus) （TCPIP has no extended output）
RS485(modbus) Extended Output	X	4-20mA（2 channels）; 0-5V（2channels） Relay（2channels）; WiFi; LORA
Power Supply	12-24V	12-24V（RS485（modbus)） 12-24V、48V Standard POE（TCPIP（modbus)）
Pump	External pump	Built-in pump（R210） External pump（R310）	Built-in pump
Weight & Size	0.2-0.3Kg 106.5×76×49（mm）	0.9Kg 135×120×60（mm）	2.6-2.8Kg 217×250×138（mm）

Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size and weight along with its sleek handle, you can utilize this unit with ease.

These units provide immediate results that allow you to proactively monitor your environment.
It's widely used in Automotive Manufacturing; Coating Processes; Paint Booth; Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing Electronic Industry (semiconductor factory, precision machinery production and processing, etc);Food Hygiene Industry (dairy products, plastic meat food, seasoning food, agricultural products, etc); Filter Manufacturers, inspection filter quality and efficiency, etc; and other areas of precision processing, precision testing required Clean Room (area), and other testing needs.

R210 Airborne Particle Counter 20
