| Model | R200 (2.83L/min） | R210 (2.83L/min） | R310P |
| R300 (28.3L/min） | R310 (28.3L/min） | (28.3L/min） | |
| Channel sizes | Two Channels: 0.5μm、5.0μm | ||
| Three Channels: 0.3μm、0.5μm、5.0μm | |||
| Four Channels: 0.3μm、0.5μm、1.0μm、5.0μm | |||
| Six Channels: 0.3μm、0.5μm、1.0μm、2.0μm、3.0μm、5.0μm | |||
| (Customizable) | |||
| Display | X | Customizable | Display |
| 2.4 inch OLED | 2.4 inch OLED | ||
| Output | RS485(modbus) | RS485(modbus) or TCPIP(modbus) | |
| （TCPIP has no extended output） | |||
| RS485(modbus) | X | 4-20mA（2 channels）; 0-5V（2channels） | |
| Extended Output | Relay（2channels）; WiFi; LORA | ||
| Power Supply | 12-24V | 12-24V（RS485（modbus)） | |
| 12-24V、48V Standard POE（TCPIP（modbus)） | |||
| Pump | External pump | Built-in pump（R210） | Built-in pump |
| External pump（R310） | |||
| Weight & Size | 0.2-0.3Kg | 0.9Kg | 2.6-2.8Kg |
| 106.5×76×49（mm） | 135×120×60（mm） | 217×250×138（mm） | |

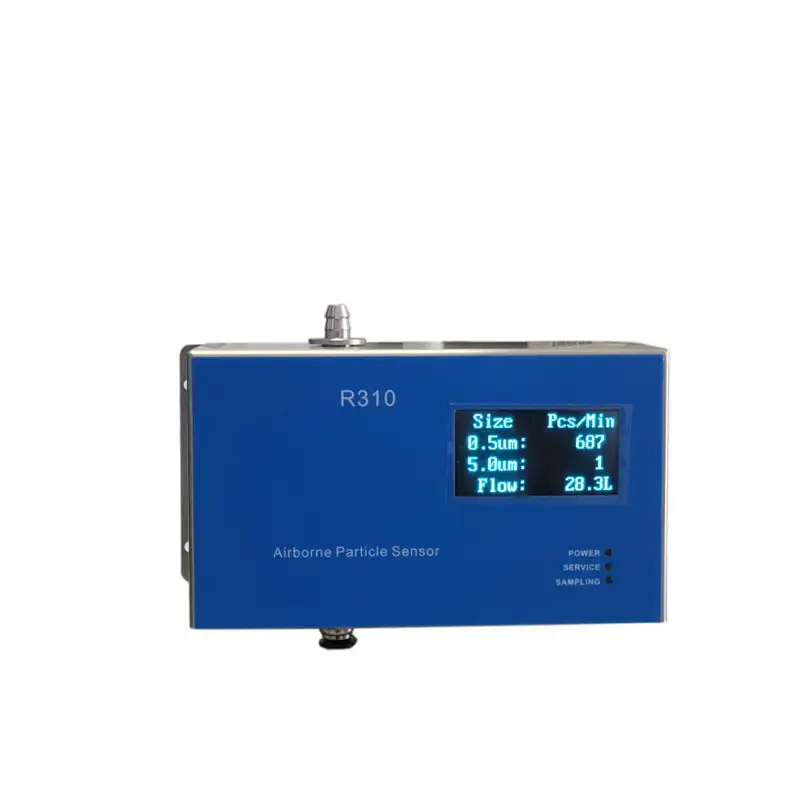

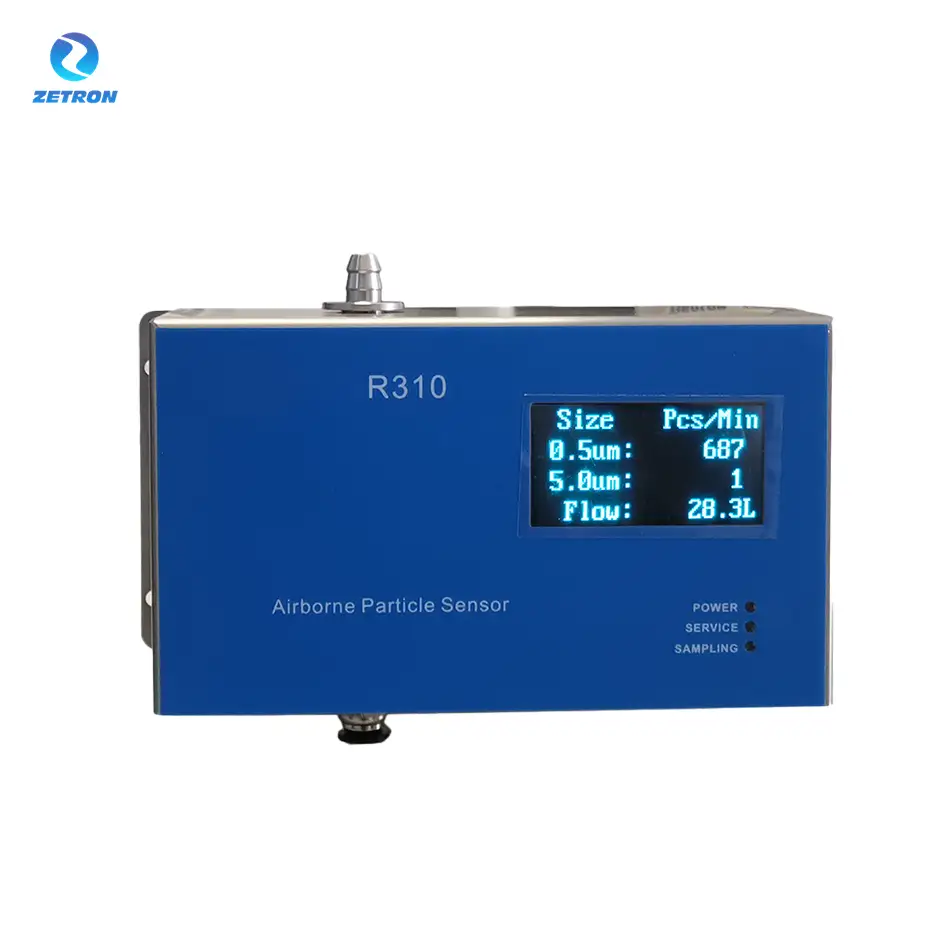

R310 Airborne Particle Counter
Clean Environment Monitoring System is an advanced, reliable, and user-friendly monitoring software suite that features a truly distributed architecture.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
图片16 (2)
图片17 (2)
Product Description
Clean Environment Monitoring System is an advanced, reliable, and user-friendly monitoring software suite that features a truly distributed architecture.
High availability data bases and hot standby system fail over functionality assures (multiple manufacturers supported), temperature/humidity, differential pressures compliance and peace of mind. Standard inputs include: airborne particle counters and air velocity inputs.
Any device that has a linear analog output can be integrated into the system.
Features
User configurable system views, status windows and multi-level maps.
图片20 (2)
图片21 (2)
图片22 (2)
图片23 (2)
Functional parameters
| Model |
R200 (2.83L/min)
|
R210 (2.83L/min) | R310P |
|
R300 (28.3L/min) |
R310 (28.3L/min) | (28.3L/min) | |
| Channel sizes | Two Channels: 0.5um, 5.0um | ||
| Three Channels: 0.3um, 0.5um, 5.0um | |||
| Four Channels: 0.3um, 0.5um, 1.0um, 5.0um | |||
| Six Channels: 0.3um, 0.5um, 1.0um, 2.0um, 3.0um, 5.0um (Customizable) | |||
| Display | x | Customizable | Display |
| 2.4 inch OLED | 2.4 inch OLED | ||
| Output | RS485(modbus) | RS485(modbus) or TCPIP(modbus) | |
| (TCPIP has no extended output) | |||
| RS485(modbus)Extended Output | x | 4-20mA (2 channels) ;0-5V (2channels) | |
| Relay (2channels) ; WiFi; LORA | |||
| Power Supply | 12-24V | 12-24V (RS485 (modbus)) | |
| 12-24V、 48V Standard POE (TCPIP (modbus)) | |||
| Pump | External pump | Built-in pump (R210) | Built-in pump |
| External pump (R310) | |||
| Weight & Size | 0.2-0.3Kg | 0.9Kg | 2.6-2.8Kg |
| 106.5x76x49(mm) | 135x120x60(mm) | 217x250x138(mm) | |
It's widely used in Automotive Manufacturing; Coating Processes; Paint Booth; Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing
Electronic Industry (semiconductor factory, precision machinery production and processing, etc);Food Hygiene Industry (dairy products, plastic meat food, seasoning food, agricultural products, etc); Filter Manufacturers, inspection filter quality and efficiency, etc; and other areas of precision processing, precision testing required Clean Room (area), and other testing needs.
