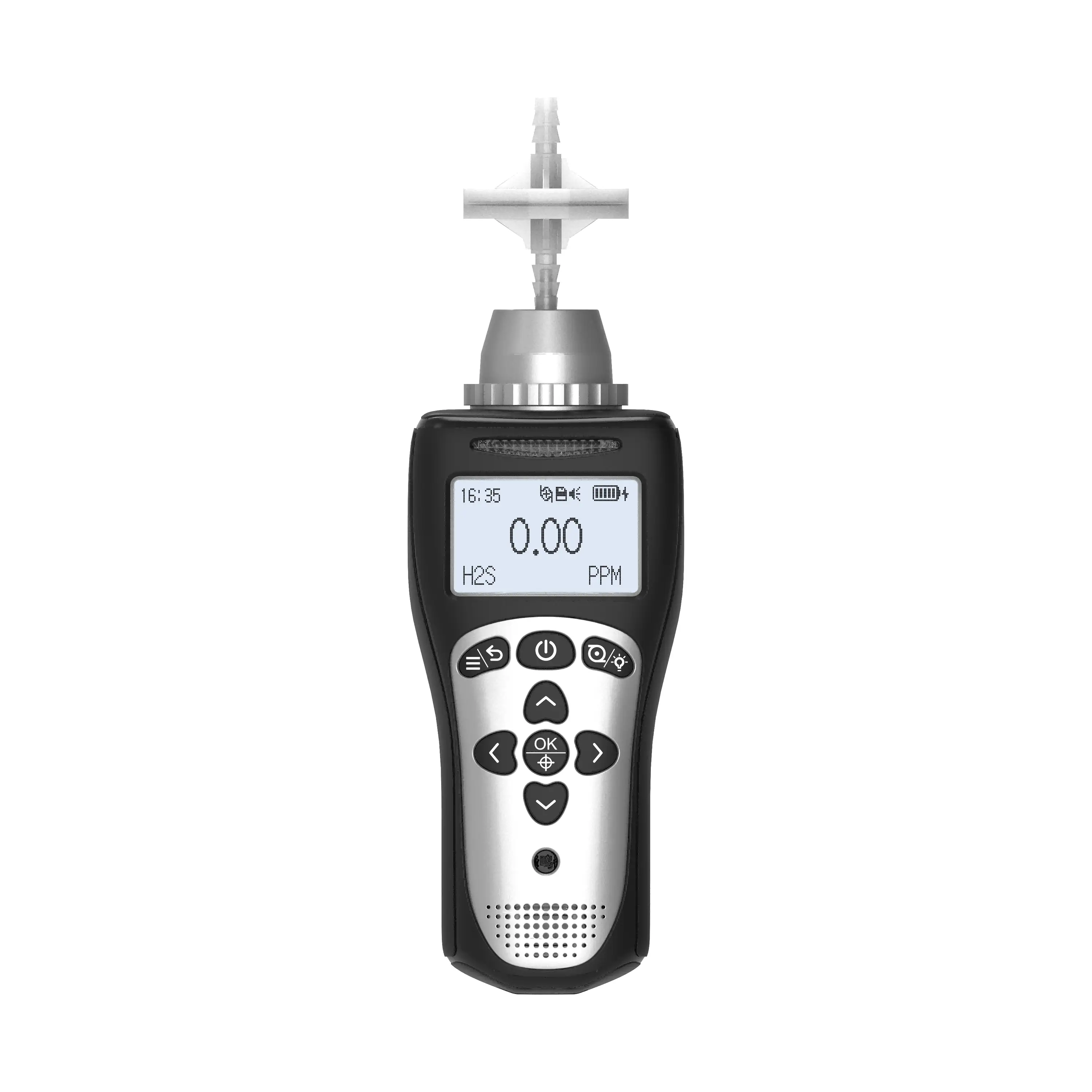

MS104K-L Portable Pump Single Gas Detector
The main function of MS104K-L Pump portable gas detector is to quickly and accurately detect gas leakage or gas concentration exceeds the standard alarm. The main detection principles of gas detection are: electrochemistry, infrared, catalytic combustion, thermal conductivity, PID light contact, etc. MS104K-L is widely used in fire fighting, emergency rescue, limited space, petroleum, chemical industry, metallurgy, refining, gas, storage, medicine, environmental protection, air management and other occasions.
MS104K-L Portable Pump Single Gas Detector
OVERVIEW
The main function of MS104K-L portable gas detector is to quickly and accurately detect gas leakage or gas concentration exceeds the standard alarm. The main detection principles of gas detection are: electrochemistry, infrared, catalytic combustion, thermal conductivity, PID light contact, etc. MS104K-L is widely used in fire fighting, emergency rescue, limited space, petroleum, chemical industry, metallurgy, refining, gas, storage, medicine, environmental protection, air management and other occasions.
FEATURE
★ Built-in pump suction measurement, can be switched to diffusion, diffusion + pump suction detection mode
★ pump blocking alarm
★ LED lighting (optional)
★ Unit free switch, unit optional: umol / mol, ppm, pphm, ppb, mg/m3, ug / m3,%V ol,% LEL
★ 8 Key-button operation, quick and one-key calibration function
★ Data storage, the storage capacity is not less than 100,000 pieces
★ Communication interface: TYPE-C, optional: Bluetooth
★ falls to alarm
★ Data recovery function, partial or full recovery of the factory data
★ Maximum, minimum, weighted average are shown
★ Multiple alarm mode setting
Alarm mode: sound and light alarm, vibration alarm, voice alarm
Alarm type: concentration alarm, underpressure alarm, fault alarm, pump blockage alarm
Alarm mode: low alarm, high alarm, interval alarm, TWA / STEL alarm
★ Misoperation identification function, concentration calibration misoperation automatic identification and prevent
★ Zero automatic tracking to avoid zero drift
★ Multi-level calibration of the target points
★ Circuit design, explosion-proof, shock proof, anti-static, radiation resistance
|
Detection factor |
Single gas (carbon monoxide CO, hydrogen sulfide H2S, oxygen O 2, combustible gas Ex, CO2 CO2, VOC, etc.), Depending on the site environment and user needs |
||
|
Scope of detection |
Depending on the site environment and user needs |
||
|
resolution ratio |
0.001ppm (0-10ppm high-precision) / 0.01ppm (0 ~ 10 ppm);0.01ppm (0 ~ 100 ppm),0.1ppm (0~1000 ppm), 1ppm (0~1000 ppm); 0.1% LEL; 0.1%, 0.01%Vol |
||
|
Detection principle |
Electrochemistry, catalytic combustion, infrared, thermal conductivity, semiconductor, PID light call away, etc., according to the range, site environment and user needs |
||
|
Sensor life |
Electrochemical 2-3 years, catalytic combustion 2-3 years, infrared 5-10 years, thermal conductivity 2-5 years, and PID 2-3 years |
||
|
detection mode |
Built-in pump suction type, can be switched to diffusion, diffusion + pump suction detection mode |
||
|
display mode |
LCD |
||
|
Display content |
Real-time concentration, unit, gas name, alarm status, time, storage state, communication state, power quantity, charging state, etc |
||
|
Detection accuracy |
Typical accuracy: ± 3% FS (optional higher precision sensor) |
uncertainty |
≤±2% |
|
degree of linearity |
≤±3% |
repetitiveness |
≤±2% |
|
response time |
T 9,020 sec |
recovery time |
Admito 30 seconds |
|
working power supply |
DC 3.7 V*2 |
||
|
battery capacity |
The 2500mA h rechargeable polymer battery has the functions of over charge, overdischarge, overvoltage, short circuit and overheat protection |
||
|
service environment |
Temperature: -20℃ ~ + 60℃, it can be customized-40℃ ~ + 70℃; Relative humidity: 10-95% RH |
||
|
communication interface |
Standard Type-C (2 hr full charge) |
||
|
data storage |
Standard capacity not less than 100,000 pieces; support local view, delete or data export, storage time interval |
||
|
Interface language |
Chinese, English and other languages can be customized |
||
|
Explosion-proof type |
Intrinsically safe type ExiaⅡCT4Ga |
|
|
|
levels of protection |
IP68 |
||
|
Case material |
High strength corrosion resistance fire proof polycarbonate and rubber protective cover, anti-fall wear resistance anti-static, effective drop resistance of 5 meters |
||
|
External size |
Maximum size: 167X64X62mm (LWH) |
weight |
About 280g |
|
standard accessory |
Calibration cover, pump suction air nozzle, instruction manual, qualification certificate, USB charger (including data line), instrument packaging color box |
||
The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology and other industries and places that need safety detection of toxic and harmful, explosion prevention.
