Model | MS400-S |
Measuring range | Depends on site environment and user requirements |
Resolution | 0.001ppm (0-10ppm high precision) / 0.01ppm (0～10 ppm); 0.01ppm (0～100 ppm), 0.1ppm (0～1000 ppm), 1ppm (0～ 1 000 ppm or more); 0.1%LEL; 0.1 % , 0.01 % Vol |
Unit Display | Optional units: umol/mol, ppm, pphm, ppb , mg/m3, ug/m3, % Vol , %LEL |
Response time | T90≤ 2 0 seconds ( general purpose ) |
Working power supply | DC 7.4V |
Display Mode | 2.31 inch color LCD |
Service environment | -20 ℃~+ 50 ℃ , can be customized -40 ℃ ~+70℃ ; Relative humidity: 10-95 % RH |
Communication interface | Standard Type-C (full charge in 4 hours) |
Data storage | Standard capacity is greater than 200,000 records ; supports local viewing, deletion or data export, and storage time interval can be set arbitrarily |
Interface language | Record the calibration log, maintenance log, fault record, sensor life expiration reminder, and the next concentration calibration time reminder function |
Interface language | Chinese, English and other languages can be customized |
Explosion-proof type | Intrinsically safe ExiaⅡCT4Ga |
levels of protection | IP68 |
Shell material | High-strength, corrosion-resistant and fire-resistant polycarbonate and integrated TPE protective cover, anti-fall, wear-resistant and anti-static, effective against drops ≥ 3 meters |
Dimensions | Maximum size 148 × 85 × 50 mm (L×W×H) shell size, excluding back clip thickness |
Detection method | Built-in pump suction + diffusion |
Repeatability | ≤± 2 % |
Battery capacity | 7.4V, 3000mA h rechargeable polymer battery with overcharge, over discharge, over voltage, short circuit and overheat protection functions |
weight | About 280g |

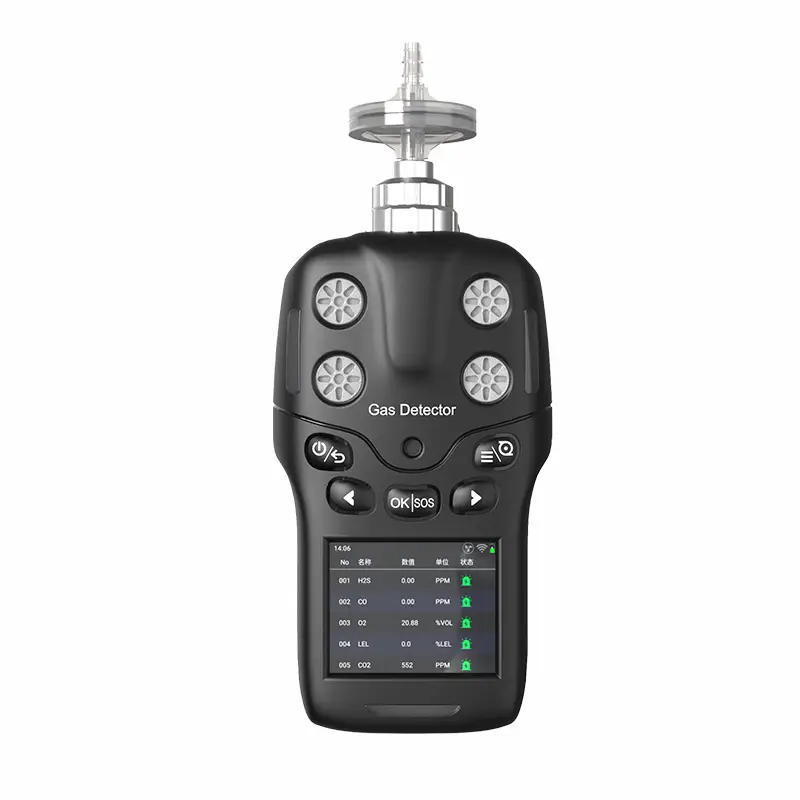

MS400-S Portable 4-in-1 Gas Detector
MS400-S portable four-in-one gas detector is mainly used to quickly and accurately detect gas leaks or alarms for excessive gas concentrations.
Product Description
MS400-S portable four-in-one gas detector is mainly used to quickly and accurately detect gas leaks or alarms for excessive gas concentrations. The four-in-one detection module contains 1-4 digital sensors, each of which is plug-and-play and intelligently identified. The main detection principles of gas detection are: electrochemistry, infrared, catalytic combustion, thermal conductivity, PID photoionization , etc. MS400-S is widely used in firefighting, emergency rescue, confined spaces, petroleum, chemical industry, metallurgy, refining, gas, warehousing, medicine, environmental protection, air treatment and other occasions.
Features
Functional parameters
| Model | MS400-S |
| Measuring range | Depends on site environment and user requirements |
| Resolution | 0.001ppm (0-10ppm high precision) / 0.01ppm (0～10 ppm); 0.01ppm (0～100 ppm), 0.1ppm (0～1000 ppm), 1ppm (0～ 1 000 ppm or more); 0.1%LEL; 0.1 % , 0.01 % Vol |
| Unit Display | Optional units: umol/mol, ppm, pphm, ppb , mg/m3, ug/m3, % Vol , %LEL |
| Response time | T90≤ 2 0 seconds ( general purpose ) |
| Working power supply | DC 7.4V |
| Display Mode | 2.31 inch color LCD |
| Service environment | -20 ℃~+ 50 ℃ , can be customized -40 ℃ ~+70℃ ; Relative humidity: 10-95 % RH |
| Communication interface | Standard Type-C (full charge in 4 hours) |
| Data storage | Standard capacity is greater than 200,000 records ; supports local viewing, deletion or data export, and storage time interval can be set arbitrarily |
| Interface language | Record the calibration log, maintenance log, fault record, sensor life expiration reminder, and the next concentration calibration time reminder function |
| Interface language | Chinese, English and other languages can be customized |
| Explosion-proof type | Intrinsically safe ExiaⅡCT4Ga |
| levels of protection | IP68 |
| Shell material | High-strength, corrosion-resistant and fire-resistant polycarbonate and integrated TPE protective cover, anti-fall, wear-resistant and anti-static, effective against drops ≥ 3 meters |
| Dimensions | Maximum size 148 × 85 × 50 mm (L×W×H) shell size, excluding back clip thickness |
| Detection method | Built-in pump suction + diffusion |
| Repeatability | ≤± 2 % |
| Battery capacity | 7.4V, 3000mA h rechargeable polymer battery with overcharge, over discharge, over voltage, short circuit and overheat protection functions |
| weight | About 280g |
Application Scenarios
Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis,air treatment and all other occasions that need to detect and analyze gas concentration.
