Zetron Instrument focuses on providing customized solutions for precision analysis and monitoring.

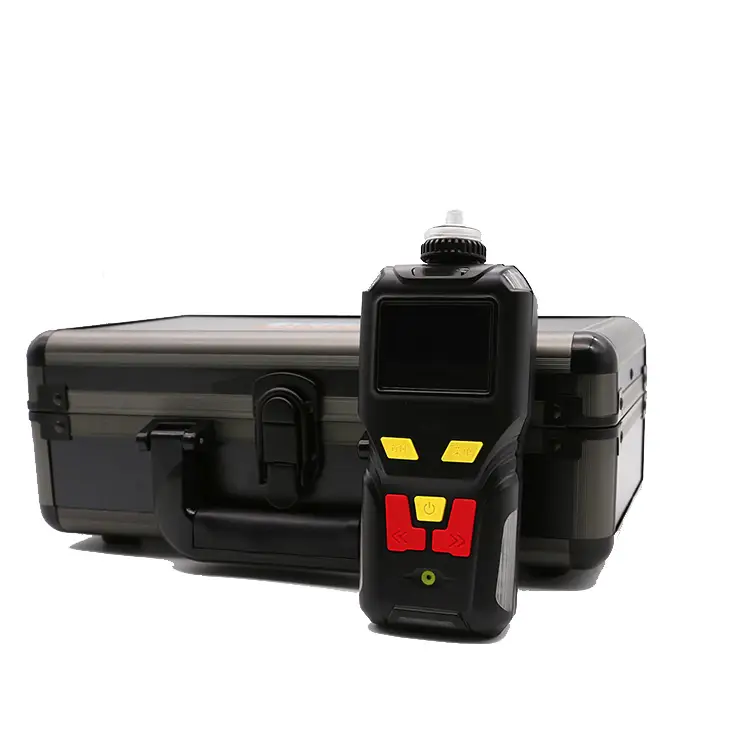

Zetron MS400-He Helium detector
MS400 Helium detector Built-in Pump sunction, measures up to 4 gases, including toxic, flammable gases and vapors, and oxygen all at once. We provide gas detector OEM/ODM services.
MS400 Portable Helium Detector
MS400 Series Gas Detector is up to 4 potential atmospheric hazards including oxygen, combustible and toxic gases, t he types of gases for detection are more than 500 types.
Continuously monitoring and displaying concentrations of up to 4 gases, the compact and lightweight MS400 was designed and engineered with an extensive host of applications in mind.
| Gases to be detected | Range | Minimum reading |
| Combustible gas ( EX ) | 0-100%LEL | 0.1%LEL |
| Methane ( CH4 ) | 0-100%LEL | 0.1%LEL |
| Oxygen gas ( O2 ) | 0-30%Vol | 0.01%Vol |
| Carbon monoxide ( CO ) | 0-100ppm | 0.1ppm |
| Carbon dioxide ( CO2 ) | 0-500ppm | 1ppm |
| Ozone ( O3 ) | 0-1ppm | 0.001ppm |
| Hydrogen sulfide ( H2S ) | 0-10ppm | 0.001ppm |
| Sulfur dioxide ( SO2 ) | 0-10ppm | 0.001ppm |
| Volatile gases ( PID ) | 0-10ppm | 0.001ppm |
Tag: Pump He gas monitor, Multi gas detector , Helium leak detector, Gas alarm detector, Hydrogen gas analyzer, phosphine detector, Methane leak monitor, OEM/ODM gas detector
|
Measuring gas
|
Helium detector (He)
|
|||
|
Sensor type
|
Infrared Sensor
Other Sensor:Laser , Electrochemical, Thermal conductivity, catalytic combustion, thermal conductivity, PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand,
Other sensors can be customized.
|
|||
|
Measuring type
|
Built-in Pump sunction
|
|||
|
Response time
|
T90<30s
|
|||
|
Display
|
2.31-inch high-definition color screen
|
|||
|
Alarm method
|
sound & light alarm;
vibration alarm;
sound & light + vibration alarm;
turning off the alarm
|
|||
|
Battery
|
DC3.7V, 4500mA high capacity rechargeable polymer battery
|
|||
|
Data storage
|
Standard capacity is 100, 000 entries
|
|||
|
Working temperature
|
-40 ℃ ~ + 70 ℃
|
|||
|
Working humidity
|
≤10 ~ 95% RH
|
|||
|
Housing
|
Rubber enclosure
|
|||
|
Standard accessories
|
Manual, qualification certificate, warranty card, USB charger (including the data cable), belt clip, colorful packaging box (optional high-grade aluminum instrument case)
|
|||
|
Dimension
|
160×70×28mm (L×W×H)
|
|||
|
Weight
|
300g
|
|||
|
Ex grade
|
Ex ia IIC T6 Ga Intrinsically safe type
|
|||
|
Ingress protection
|
IP65
|
|||
|
Measuring gas
|
Helium detector (He)
|
|||
|
Sensor type
|
Infrared Sensor
Other Sensor:Laser , Electrochemical, Thermal conductivity, catalytic combustion, thermal conductivity, PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand,
Other sensors can be customized.
|
|||
|
Measuring type
|
Built-in Pump sunction
|
|||
|
Response time
|
T90<30s
|
|||
|
Display
|
2.31-inch high-definition color screen
|
|||
|
Alarm method
|
sound & light alarm;
vibration alarm;
sound & light + vibration alarm;
turning off the alarm
|
|||
|
Battery
|
DC3.7V, 4500mA high capacity rechargeable polymer battery
|
|||
|
Data storage
|
Standard capacity is 100, 000 entries
|
|||
|
Working temperature
|
-40 ℃ ~ + 70 ℃
|
|||
|
Working humidity
|
≤10 ~ 95% RH
|
|||
|
Housing
|
Rubber enclosure
|
|||
|
Standard accessories
|
Manual, qualification certificate, warranty card, USB charger (including the data cable), belt clip, colorful packaging box (optional high-grade aluminum instrument case)
|
|||
|
Dimension
|
160×70×28mm (L×W×H)
|
|||
|
Weight
|
300g
|
|||
|
Ex grade
|
Ex ia IIC T6 Ga Intrinsically safe type
|
|||
|
Ingress protection
|
IP65
|
|||
All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
