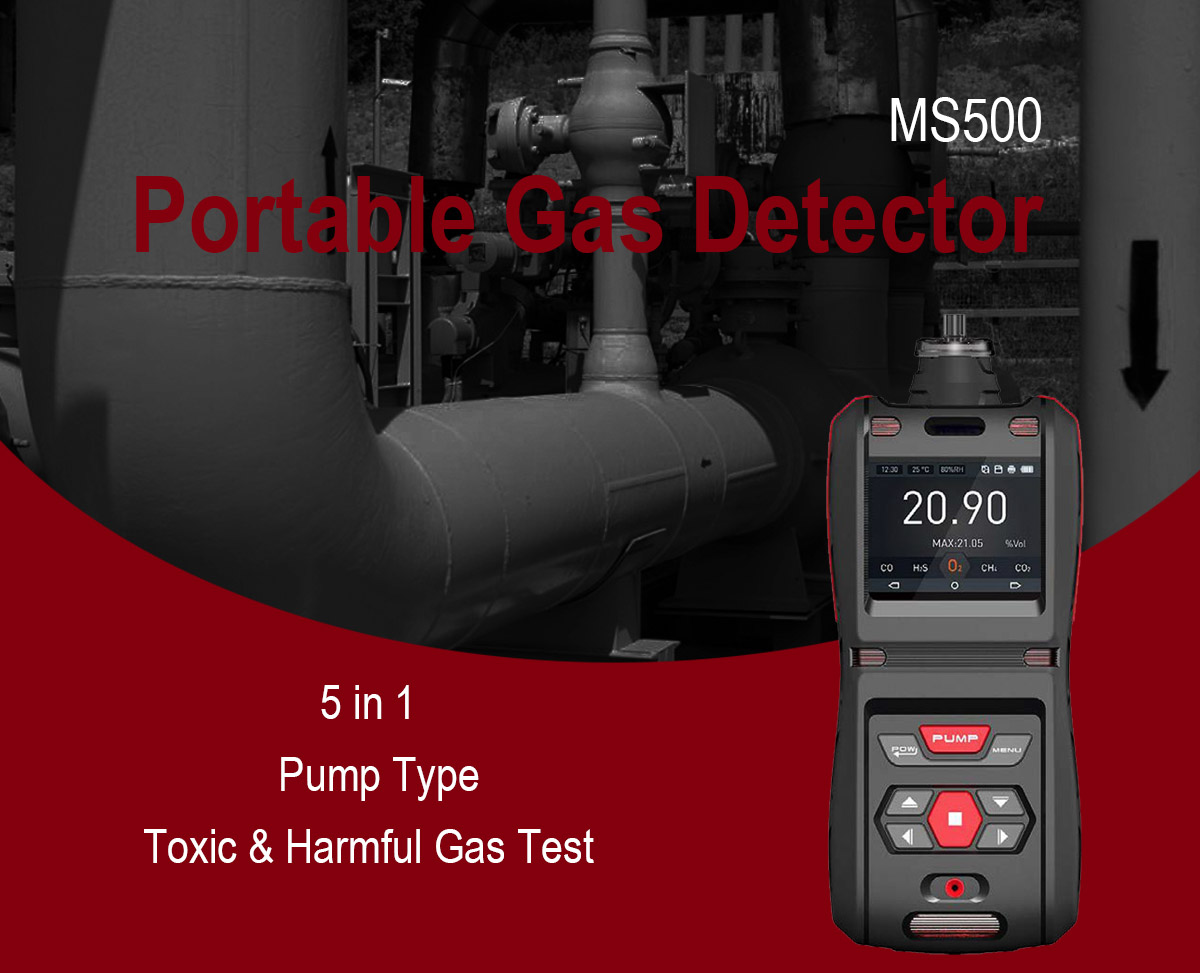

MS500-P1 Hand Held Multi Gas Detector
MS500-P1 gas detector is used for portable and rapid detection of toxic and hazardous gas concentration, temperature and humidity measurement and alarm. We can support OEM/ODM services.

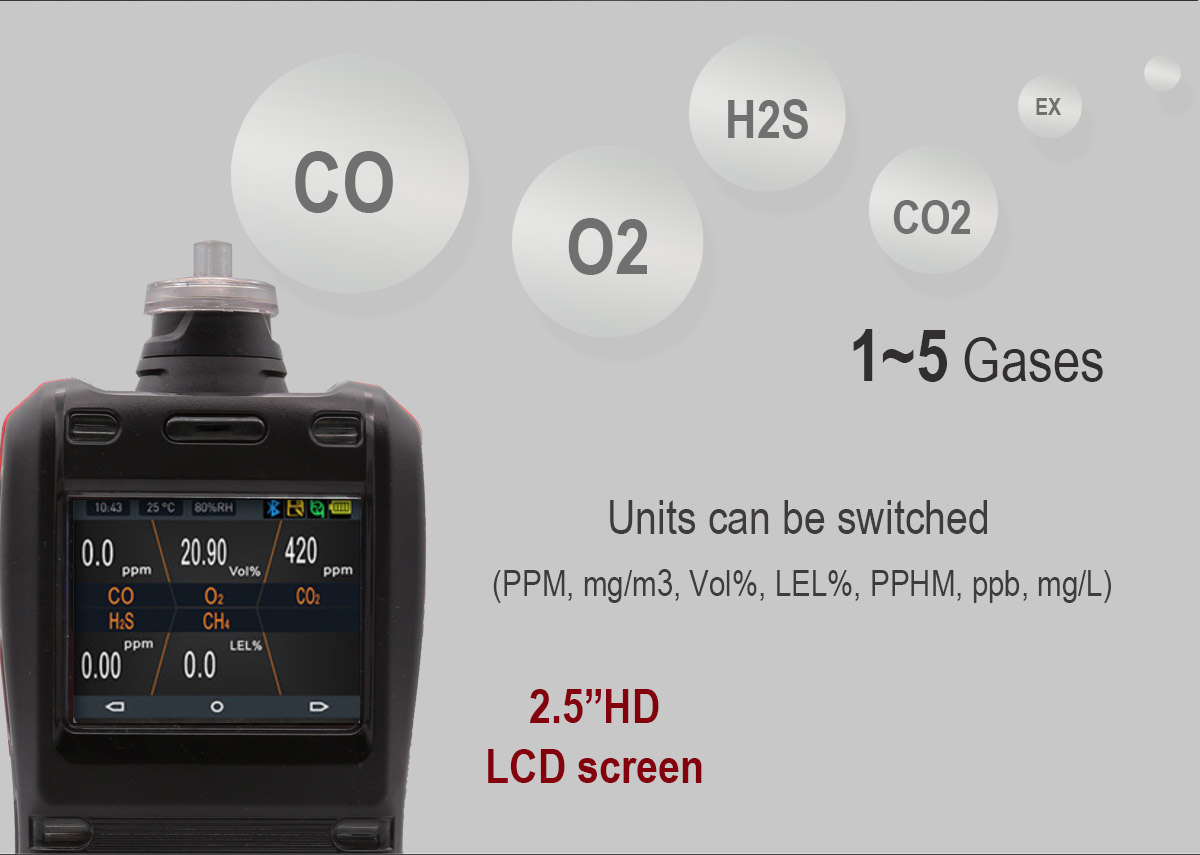

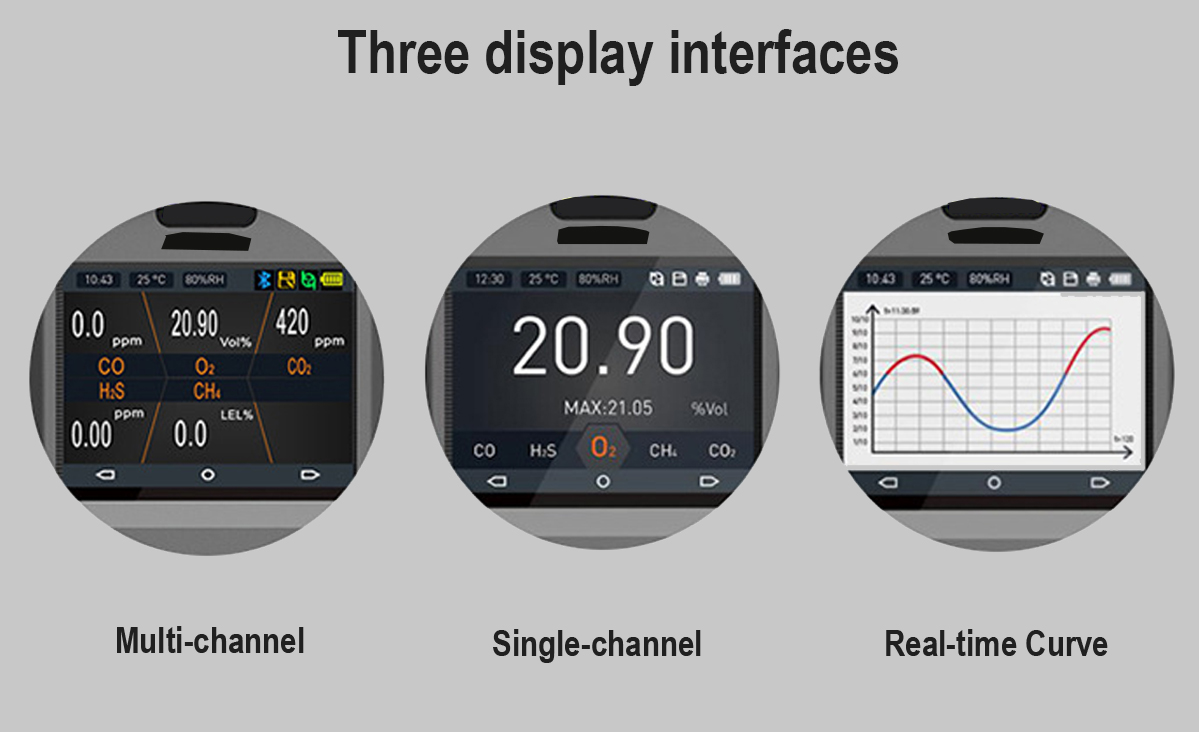

MS500-P1 portable toxic and hazardous gas detector is used for portable and rapid detection of toxic and hazardous gas concentration, temperature and humidity measurement and alarm. It adopts 2.5-inch HD color screen to display the concentration in real time, and selects imported brands (Honeywell, Japan fundamental, UK City, UK Alpha, UK Dynament, Switzerland Membrapor, etc.) gas sensors, the main detection principles are: electrochemical, infrared, catalytic combustion, thermal conductivity, PID light ion. The MS500 can detect gas concentrations in pipelines or confined spaces, atmospheric environments, gas leaks or various background gases such as ammonia or oxygen with high concentrations of single gas purity, and more than 500 types of gases.
| Detection range | O2:0-30%VOL,CO:0-100ppm, H2S:0-100ppm,EX:0-100%LEL | ||||
| and other ranges can be customized. | |||||
| Resolution | O2:0.01%VOL, CO:0.1ppm, H2S:0.01ppm,EX:1%LEL | ||||
| Detection principle |
Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand. |
||||
| Working environment | Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment. | ||||

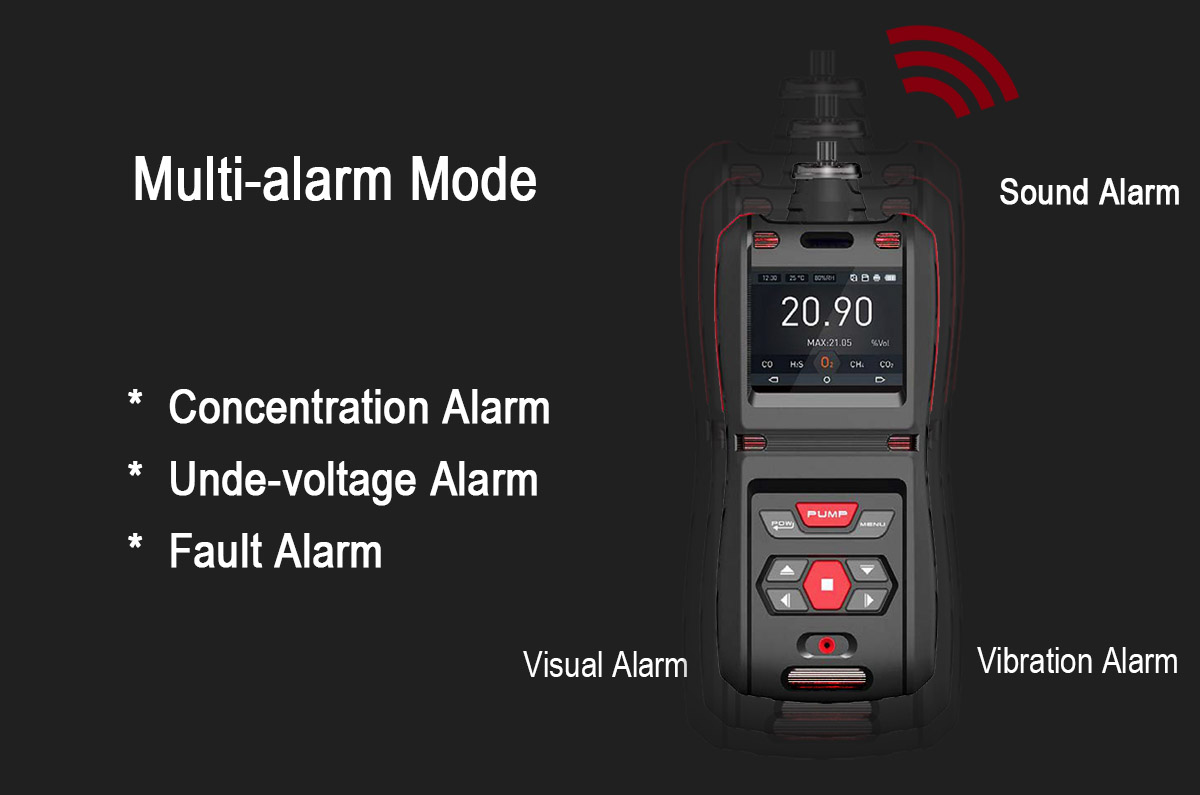

| Alarm mode |
It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, Turning off the alarm. |
||||
| Communication interface |

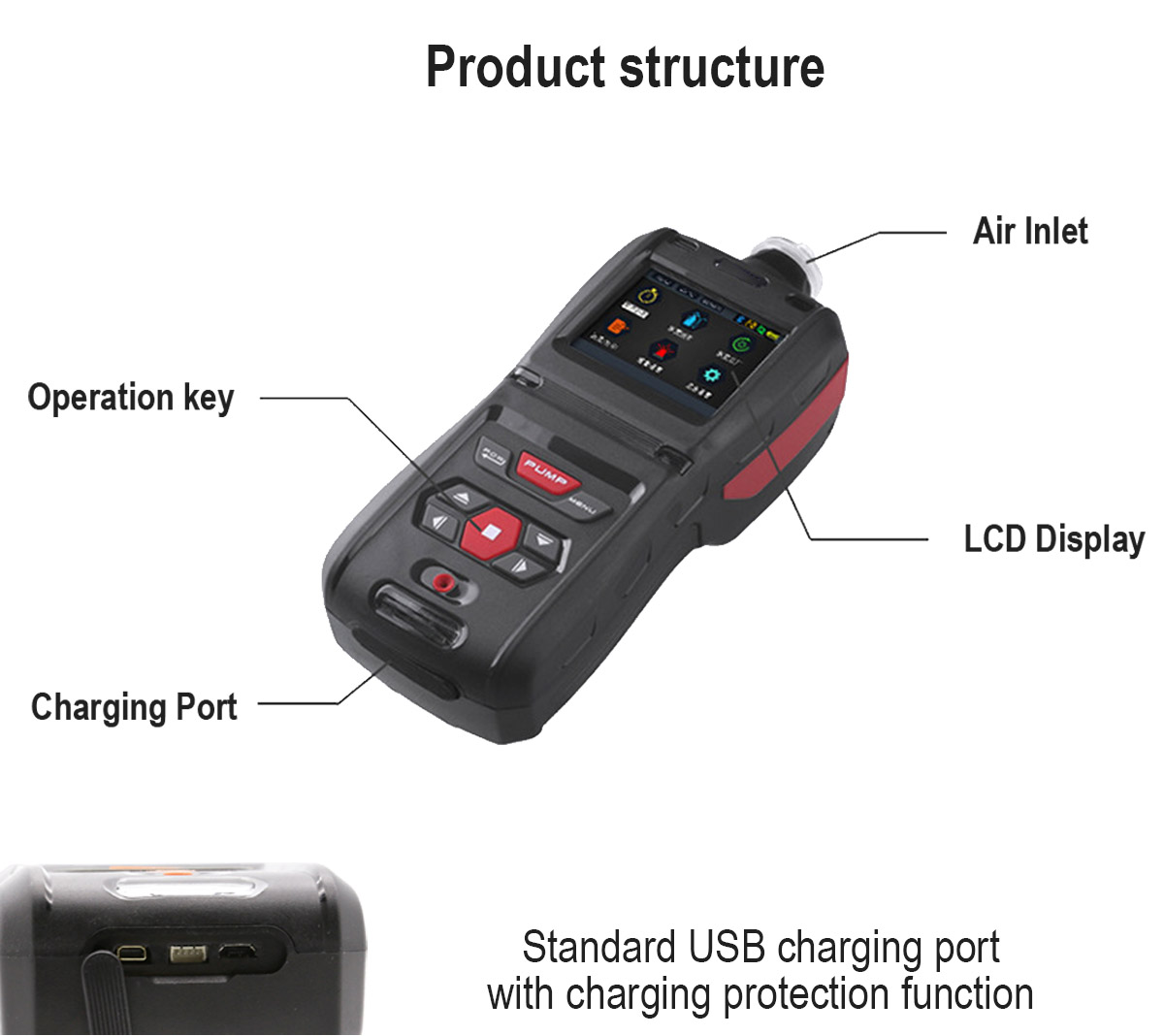

USB (charging and communication), optional: RS232, infrared communication, automatic recognition |
||||
| Data storage | Standard configuration is the data storage capacity for 100, 000 entries | ||||

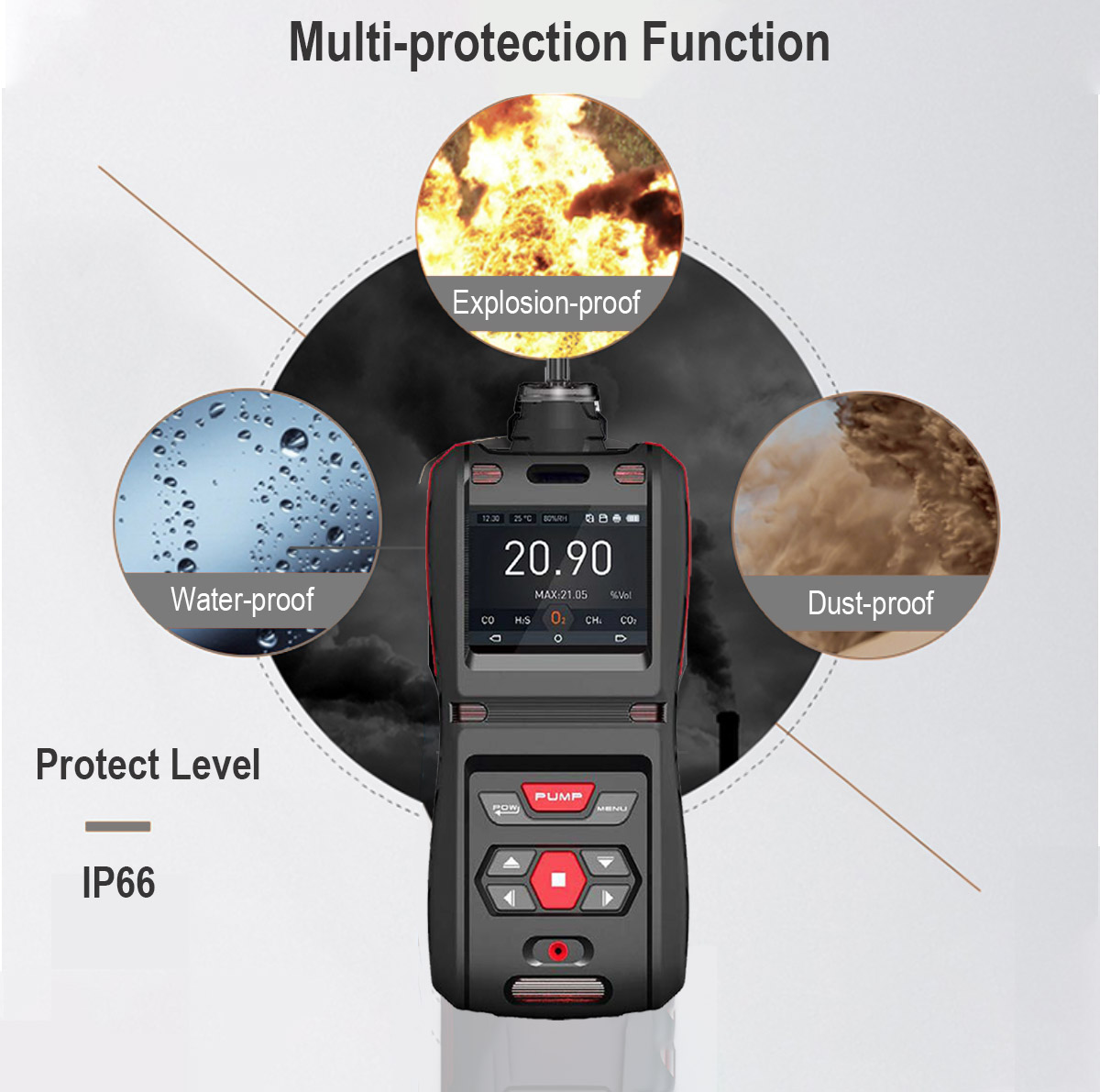

| Protection level | IP66 | ||||
| Explosion-proof mark | Exia II CT6 | ||||
| Exterior dimensions | 180×78×33mm (L×W×H) | ||||
| Weight | 350g | ||||
All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
