Aerosol Generator AG-6D

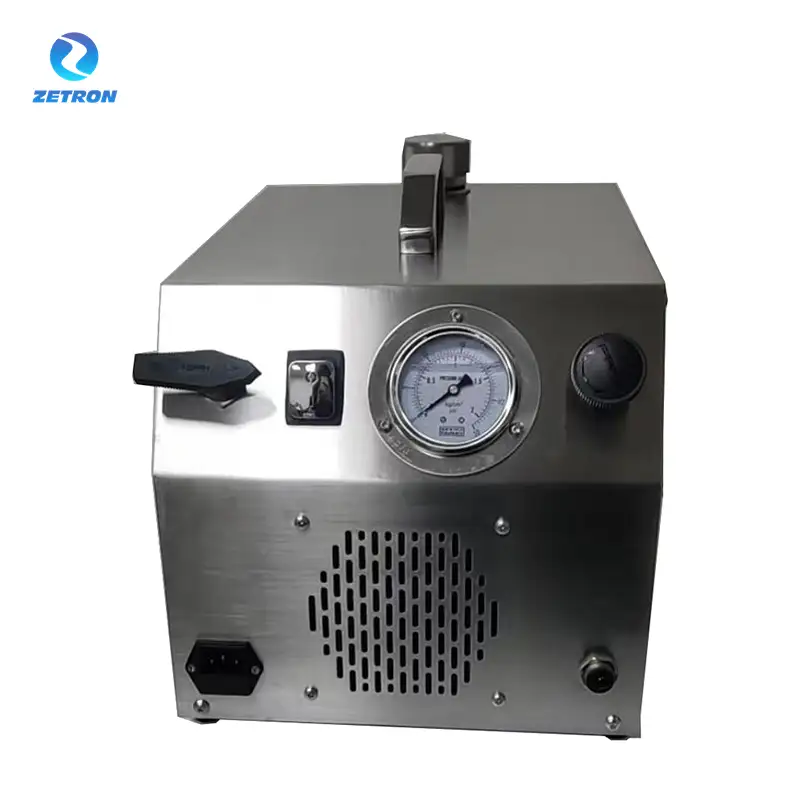

The AG-6D aerosol generator case is made of stainless steel, the regulating and changeover valves are also made of stainless steel, and the pressure gauge is an oil-filled shock-resistant pressure gauge.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
AerosolGenerator AG-6D
Overview
The AG-6D aerosol generator case is made of stainless steel, the regulating and changeover valves are also made of stainless steel, and the pressure gauge is an oil-filled shock-resistant pressure gauge.
This product is a series of improved aerosol generator, the built-in air pump adopts oil-free compressor, no need for external air source (can also be connected to an external air source), through the 2 or 6 Laskin Nozzles nozzle will be PAO or DOP solution atomization, so that it produces a high concentration of aerosol.

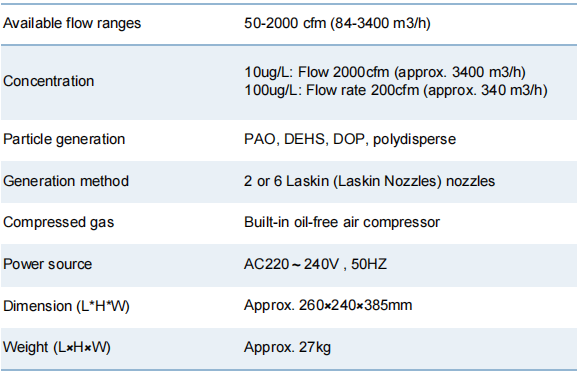

Functional parameters
| Available flow ranges | 50-2000 cfm (84-3400 m3/h) |
| Concentration |
10ug/L: Flow 2000cfm (approx. 3400 m3/h) 100ug/L: Flow rate 200cfm (approx. 340 m3/h) |
| Particle generation | PAO, DEHS, DOP, polydisperse |
| Generation method | 2 or 6 Laskin (Laskin Nozzles) nozzles |
| Compressed gas | Built-in oil-free air compressor |
| Power source | AC220～240V , 50HZ |
| Dimension (L*H*W) | Approx. 260×240×385mm |
| Weight (L×H×W) | Approx. 27kg |
Calibration of particle sizing instruments
General purpose reproducible test aerosol generation
Tracer particle generation (seed particles)
HEPA/ULPA filter integrity testing
Cleanroom and safety cabinet validation according to ISO 14644-3
In-use acceptance testing of low- and high flow filters
Smoke detector testing
General purpose reproducible test aerosol generation
Tracer particle generation (seed particles)
HEPA/ULPA filter integrity testing
Cleanroom and safety cabinet validation according to ISO 14644-3
In-use acceptance testing of low- and high flow filters
Smoke detector testing
