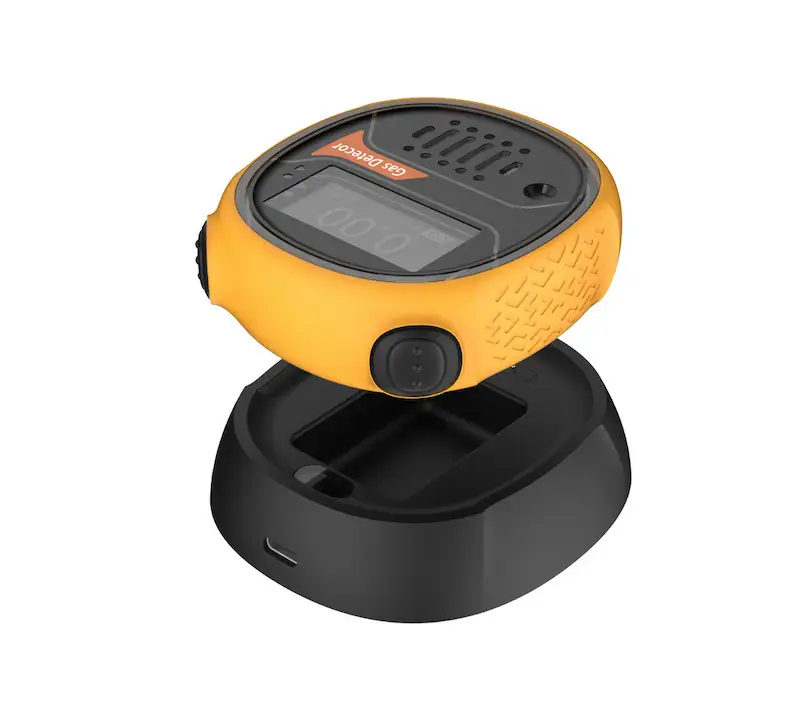

MS104K-S-CO2 Portable Diffusion Gas Detector 1

MS104K-S-CO2 Portable Diffusion Gas Detector 2

MS104K-S-CO2 Portable Diffusion Gas Detector 3

MS104K-S-CO2 Portable Diffusion Gas Detector 4

MS104K-S-CO2 Portable Diffusion Gas Detector 5

MS104K-S-CO2 Portable Diffusion Gas Detector 6

MS104K-S-CO2 Portable Diffusion Gas Detector

MS104K-S is a compact, ultra-low power consumption, mobile gas detector for rapid detection of gas concentration. We provide gas detector OEM/ODM services.

Inquiry

Write a Review

MS104K-S-CO2 Portable Diffusion Gas Detector

● Small size, light weight, easy to carry

● With 1800mA rechargeable battery, standby time of 1 year, working for more than 400 hours

● Free switching of units from ppm/LEL/VOL

● Data recovery function
● Support infrared, Bluetooth, LOLA, NB-IOT wireless interconnection functionPortable Diffusion 4 Gases in 1 Detector CO H2S O2 LEL Carbon Monoxide Oxygen Combustible Multi Gas Detector
● IP65 protection Leverl: waterproof, dustproof, explosion-proof, shockproof, intrinsically safe circuit design, anti-static,

anti-electromagnetic interference

Gases to be detected	Range	Minimum reading	Response time T90
Combustible gas ( EX )	0-100%LEL	0.1%LEL	≤10 seconds
Methane ( CH4 )	0-100%LEL	0.1%LEL	≤10 seconds
Oxygen gas ( O2 )	0-30%Vol	0.01%Vol	≤10 seconds
Carbon monoxide ( CO )	0-100ppm	0.1ppm	≤25 seconds
Carbon dioxide ( CO2 )	0-500ppm	1ppm	≤20 seconds
Ozone ( O3 )	0-1ppm	0.001ppm	≤20 seconds
Hydrogen sulfide ( H2S )	0-10ppm	0.001ppm	≤30 seconds
Sulfur dioxide ( SO2 )	0-10ppm	0.001ppm	≤30 seconds
Nitric oxide ( NO )	0-10ppm	0.001ppm	≤30 seconds
Volatile gases ( PID )	0-10ppm	0.001ppm	≤30 seconds

MS104K-S-CO2 Portable Diffusion Gas Detector 7

Tag: Diffusion gas monitor, Multi gas monitor , Gas leak detector, Gas alarm detector, O3 gas analyzer, Methane leak, NO detector, Ozone monitor, Mini 4in1 gas meter, OEM/ODM gas detector

Detection gas	CO2 Carbon Dioxide
Detection range	0-2000、5000、50000ppm、5%Vol 0-2000、5000ppm、1.5%Vol
Display mode	HD LCD dot matrix display, double button operation
Detection accuracy	≤±3% (F.S)
Response time	T90≤30s
Data storage	Standard 20,000 pieces of data capacity, Support the local view, delete or data export, storage time interval arbitrary Settings
Communication interface	Infrared communication, Optional Bluetooth, LORA communication, etc
Explosion-proof mark	Exia II CT4 Ga
Protection grade	IP65, Dustproof, Waterproof splash
Dimensions	77×68×35mm(L×W×H)
Weight	Less than 150g

MS104K-S can apply to petroleum, chemical industry, pipe network inspection, medicine, environmental protection, storage and other occasions that need to detect gas concentration.

MS104K-S-CO2 Portable Diffusion Gas Detector 8
