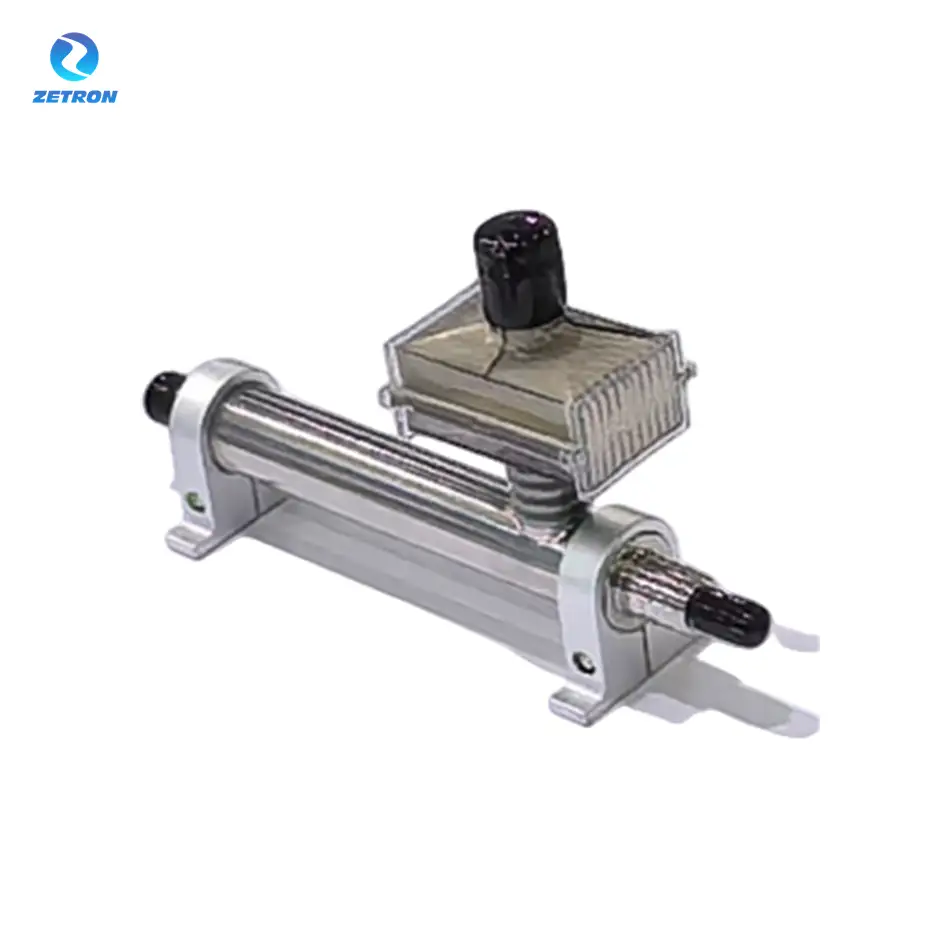

High Pressure Diffuser for Compressed Air and Gas Distribution – GKQ-II
The GKQ-II high pressure diffuser is designed for safe pressure reduction and stable sampling of compressed gases before particle or microbial testing. It converts high-pressure air or inert gases to atmospheric pressure and delivers clean, steady flow to downstream instruments such as airborne particle counters (APC) and biological air samplers (BAS). Compliant with ISO 8573-4, it features an integrated exhaust filter to minimize cross-contamination and supports multiple flow rates of 28.3, 50, and 100 L/min for reliable cleanroom and compressed gas monitoring applications.
|
Gas types |
Air, N2, CO2, O2, Ar, and other inert gases |
|
Traffic flow rates |
100 LPM, 50 LPM, and 28.3 LPM are available. |
|
Input pressure range |
1.5-8 bar |
|
Intake pipe dimensions |
Inner diameter: 5mm; Outer diameter: 8mm |
|
Air outlet pipe dimensions |
Inner diameter: 10mm |
|
Shell material |
316L stainless steel |
|
Operating conditions: Temperature |
5°C-30°C, relative humidity <80% (no condensation) |
|
Storage conditions: Temperature |
0°C - 40°C; Relative humidity: <80%; No condensation. |
|
Warranty |
1 year |
