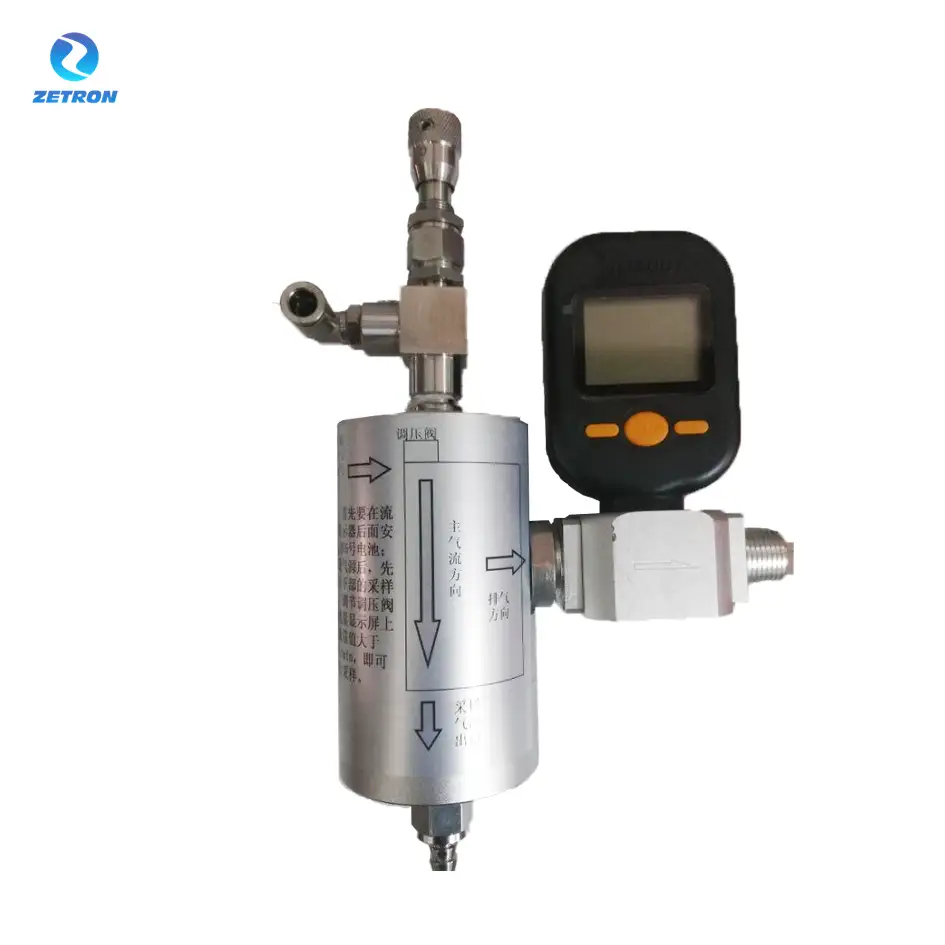

Compressed Air Diffuser for Uniform Gas Distribution and Flow Control – GKQ-01

Name: Compressed Air Diffuser for Uniform Gas Distribution and Flow Control – GKQ-01
Brand: Zetron

A compact high-pressure gas diffuser designed to reduce compressed air or inert gases to stable, low-pressure flow for accurate particle and microbial sampling. Compatible with airborne particle counters and biological air samplers, ideal for ISO 8573 compressed air quality testing in cleanroom and pharmaceutical environments.

Inquiry

Write a Review

High pressure range	0.1～1.0MPa;
Guaranteed pressure resistance	1.0Mpa;
Operating environment	Temperature: 0～50℃, Humidity: 10～90%;
Output flow range	0-100L/min, set pressure range: 0.005Mpa to 0.2Mpa;
High pressure port diameter	φ6/8/10/12;
Counter port diameter	φ10 (2.83L or 28.3L), airborne bacteria sampler sampling port: φ10;
Airborne bacteria sampler sampling horn	φ10, material: aluminum alloy;
Cavity working pressure	0-500Pa, internal passages are all made of stainless steel;
Display power supply	4 AA batteries;
Dimensions	260×210×60 mm (L×W×D);
Weight	0.4Kg
