D100 Digital Gas Sensors Module

The D-100 digital gas sensor is used for 24-hour continuous online monitoring of gas concentrations on site. The sensor part uses gas sensors of internationally renowned brands and the main detection principles are: electrochemical, infrared, catalytic combustion, thermal conductivity, PID photoionisation, etc.

Inquiry

Write a Review

D100 Plug and Play Digital Gas Sensors

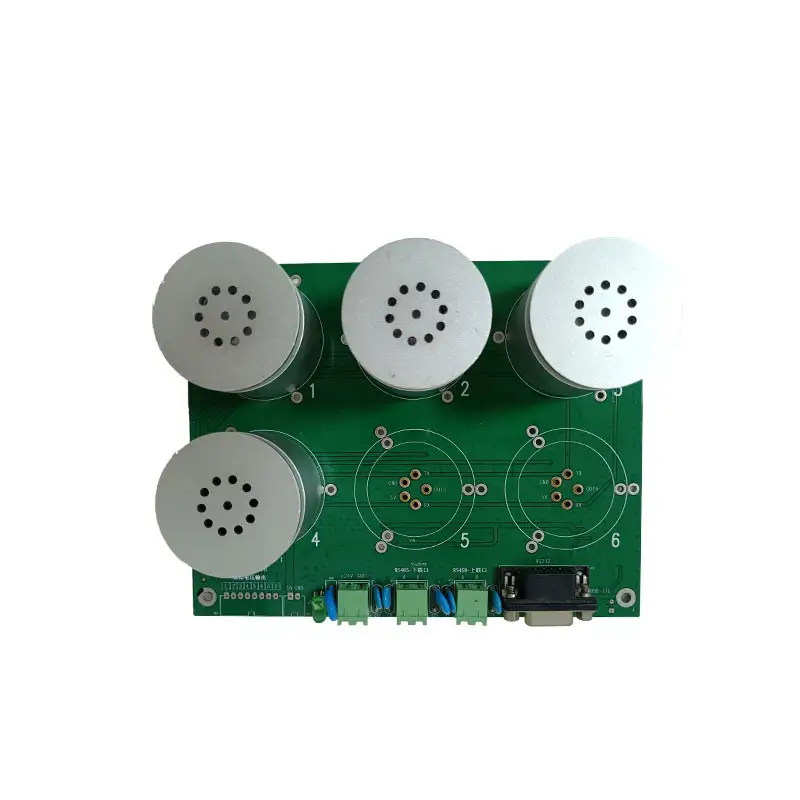

In order to solve the problems of limited replacement of core components, limited size, various types of gas detection and incompatibility of various brands of gas sensors, to cooperate with system integrators to develop industrial process control systems, environmental online monitoring systems and industrial internet gas analysis systems, and to solve the problem of integration of customers' independent systems, the D-100 plug-and-play digital gas sensor and the six-channel signal acquisitionintelligent motherboard M-600

•The D-100 digital gas sensor module is compact in size and simple to apply. The specific principle is: signal processing and intelligent calculation of different brands of sensors, then temperature and humidity compensation, and finally data calibration with standard gases.

•No secondary calibration is required, the standard RS485 or TTL digital signal of the sensor can be read directly, or a single or multiple 6-channel signal acquisition intelligent motherboard (M-600) can be selected for unified acquisition, hot-swappable support, the sensor can be replaced by itself after expiry, no professional operation or guidance is required.

Detection of gases	Over 500 gases including toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc. Free combination of six different gases (can be added)
Meteorological parameter testing	Temperature: -40℃~120℃, Humidity: 0~100%RH, Pressure: 30-140Kpa, Wind speed, wind direction, noise, illumination, rainfall, etc.
Particulate matter detection	PM2.5/PM10: 0~1000ug/m3, 0-5mg/m3, selectable counting mode PC/L or mass mode
Detection range	0～1、10、100、1000、5000、50000ppm、100MG/L、100%LEL、20%、50%、100%Vol Optional Refer to the table, other ranges can be ordered
Resolution	0.001ppm（0-10ppm High accuracy）/0.01ppm（0～10 ppm）；0.01ppm（0～100 ppm），0.1ppm（0～1000 ppm），1ppm（0～5000 ppm以上）；0.01MG/L；0.1%LEL；0.01%， 0.001%Vol Refer to the table, other ranges can be ordered
Detection principle	Electrochemical, catalytic combustion, infrared, thermal conductivity, semiconductor, PID photoionisation, etc., depending on range, site environment and user requirements
Sensor life	Electrochemistry 2-3 years, catalytic combustion 2-3 years, IR 5-10 years, thermal conductivity 2-5 years, semiconductors 2-3 years, PID 2 years
Detection accuracy	≤±3%F.S (Depending on the sensor, higher precision can be ordered)
Signal output	Sensor: TTL or RS485, one of two options, specify on order, intelligent motherboard: RS485, optional RS232/TTL/USB/voltage output
Operating environment	Temperature: -40℃～+70℃, Humidity: ≤10～95%RH (conventional) non-condensing occasions, Pressure: 0.1MPa±20%
Operating voltage	Sensor 5VDC, Main board: 12 to 35VDC DC
Operating mode	Plug-and-play, diffusion measurement; pumped or flow-through measurement options
Power consumption	Depending on the sensor principle (0.05W~1W), ultra-low power models are available on request
Other	Full range temperature and humidity compensation, intrinsically safe circuit design
Applications	Petroleum, chemical safety, pharmaceuticals, environmental protection, gas distribution, storage, flue gas analysis, air quality monitoring and other occasions.

This new intelligent digital gas sensor can be widely used in petroleum, chemical, environmental protection, metallurgy, refining, gas distribution, biochemical and pharmaceutical industries, such as online monitoring of environmental gases, industrial process control, industrial inspection robots, drones, atmospheric monitoring, etc.
